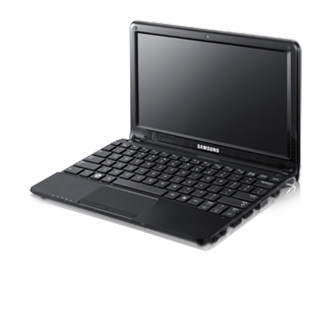

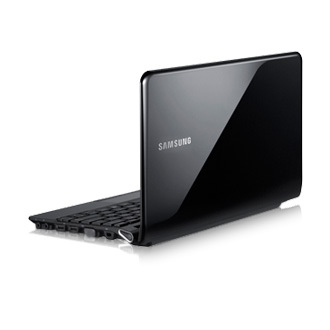

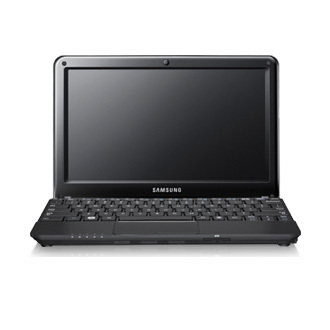

Samsung NC110-A04TR Intel Atom® N570 Netbook

NC110-A04TR Intel Atom® N570 Netbook

25.6 cm (10.1") 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Starter Black

Model NC110-A04TRPart no. NP-NC110-A04TREAN 8806071460574

90 specifications Checked today

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory2 GB
Storage320 GB
TypeNetbook

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 320 GB
Type: Netbook

Brand: Samsung
Category: Laptop
Model: NC110-A04TR
Part number: NP-NC110-A04TR
EAN / UPC: 8806071460574
Also known as: Samsung NC110-A04TR Intel Atom® N570 Netbook 25.6 cm (10.1") 2 GB DDR3-SDRAM 320 GB HDD Windows 7 Starter Black

Specifications

90 specifications in 18 groups

Design

Specification	Value
Product type	Netbook
Product colour	Black

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N570
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	17 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory slots	1x SO-DIMM

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
HDD capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
Graphics card family	Intel
On-board graphics card model	Intel® GMA 3150
On-board graphics card base frequency	200 MHz
Graphics card	GMA 3150

Audio

Specification	Value
Audio system	HD, SRS 3D
Number of built-in speakers	2
Speaker power	1.5 W
Built-in microphone	Yes

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	802.11 bg/n
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	3.0+HS
Cabling technology	10/100Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel NM10
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Starter

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	55637
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
AC adapter power	40 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS, HDD

Weight & dimensions

Specification	Value
Weight	1.18 kg
Width	259 mm
Depth	179.5 mm
Height (front)	2.15 cm
Height (rear)	3.37 cm

Other features

Specification	Value
Supplied AC adapter type	AC
