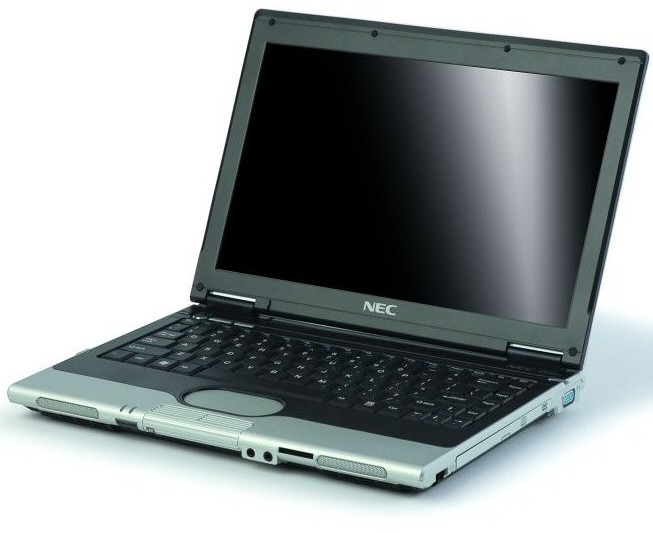

Versa S940 - Pentium M 745, 512MB, 80GB, 13.3" TFT, Win XP Home
Model Versa S940 - Pentium M 745, 512MB, 80GB, 13.3" TFT, Win XP HomePart no. NN902001601
116 specifications Checked today
- Display33.8 cm (13.3")
- Resolution1280 x 800 pixels
- ProcessorIntel Pentium Mobile
- Memory0.5 GB
- Storage80 GB
- Battery4400 mAh
Overview
- Display
- 33.8 cm (13.3")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel Pentium Mobile
- Memory
- 0.5 GB
- Storage
- 80 GB
- Battery
- 4400 mAh
- Brand
- NEC
- Category
- Laptop
- Model
- Versa S940 - Pentium M 745, 512MB, 80GB, 13.3" TFT, Win XP Home
- Part number
- NN902001601
- Also known as
- NEC Versa S940 - Pentium M 745, 512MB, 80GB, 13.3" TFT, Win XP Home Intel Pentium Mobile 33.8 cm (13.3") 0.5 GB DDR-SDRAM Windows XP Home Edition QWERTY
Specifications
116 specifications in 20 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:10 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Mobile |
| Processor model | 745 |
| Processor cores | 1 |
| Processor threads | 1 |
| Processor frequency | 1.8 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 400 MHz |
| Processor socket | Socket 479 |
| Processor lithography | 90 nm |
| Processor operating modes | 32-bit |
| Processor series | Intel Pentium M 700 Series |
| Processor codename | Dothan |
| Bus type | FSB |
| FSB Parity | No |
| Thermal Design Power (TDP) | 21 W |
| Tjunction | 100 °C |
| Number of Processing Die Transistors | 144 M |
| Processing Die size | 87 mm² |
| CPU multiplier (bus/core ratio) | 18 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Internal memory type | DDR-SDRAM |
| Memory layout (slots x size) | 1 x 0.5 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| HDD interface | Ultra-ATA/133 |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS PRO, SD, xD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 0.128 GB |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera | No |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet, WLAN |
| Wireless technology | IEEE 802.11b/g |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | Yes |
| CardBus PCMCIA slots quantity | 1 |
| CardBus PCMCIA slot type | Type II |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | Yes |
| TV-out type | S-Video |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| USB 1.1 ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 855GM |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard number of keys | 87 |
| Keyboard layout | QWERTY |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Home Edition |
| Bundled software | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 27591 |
| Processor package size | 35 x 35 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery capacity | 4400 mAh |
| Battery life (max) | 4 h |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Mark & CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
| Width | 320 mm |
| Depth | 226 mm |
| Height | 32 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Security features | 2 levels passwords Recovery partition HDD |
| Infrared data port | Yes |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | Data/Fax |
