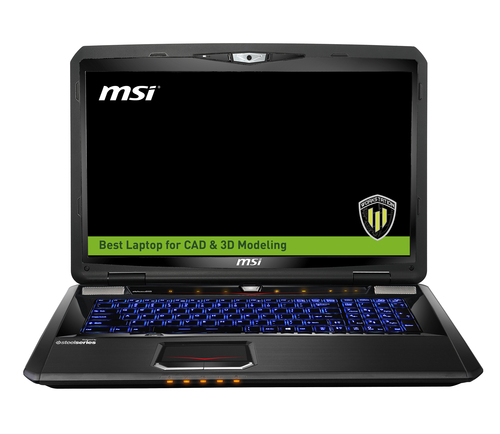

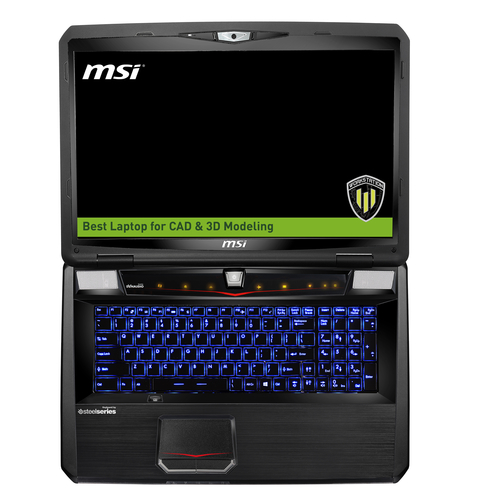

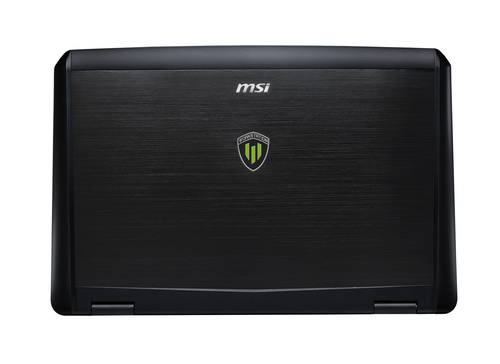

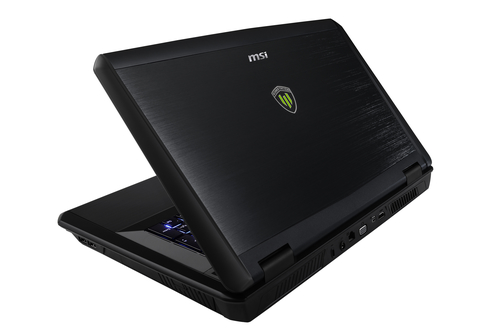

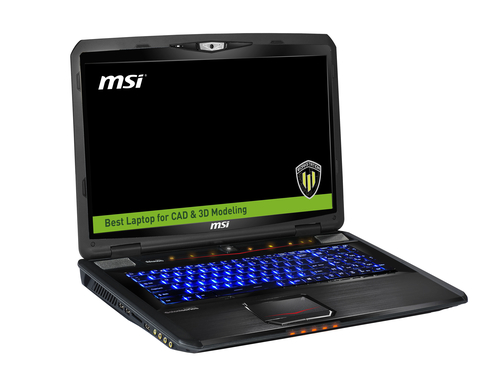

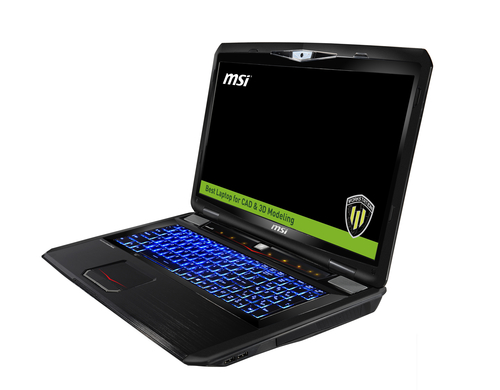

MSI WT70 2OK-2277US
MSI

WT70 2OK-2277US

Model WT70 2OK-2277USEAN 824142027738

162 specifications Checked today
  • Display43.9 cm (17.3")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i7
  • Memory16 GB
  • Storage1.25 TB
  • GraphicsNVIDIA® Quadro® K3100M
See all specifications

Overview

Display
43.9 cm (17.3")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i7
Memory
16 GB
Storage
1.25 TB
Graphics
NVIDIA® Quadro® K3100M
Brand
MSI
Category
Laptop
Model
WT70 2OK-2277US
Part number
WT70 2OK-2277US
EAN / UPC
824142027738
Also known as
MSI Workstation WT70 2OK-2277US laptop Intel® Core™ i7 i7-4810MQ Mobile workstation 43.9 cm (17.3") Full HD 16 GB DDR3L-SDRAM 1.25 TB HDD+SSD NVIDIA® Quadro® K3

Specifications

162 specifications in 21 groups

Design

Product typeMobile workstation
Product colourBlack
Form factorClamshell

Display

Display diagonal43.9 cm (17.3")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
LED backlightYes
Native aspect ratio16:9
Display surfaceMatt
Display brightness300 cd/m²
Pixel pitch0.1989 x 0.1989 mm
Dual-screenNo
Display response rise/fall8 ms
Contrast ratio (typical)650:1

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation4th gen Intel® Core™ i7
Processor modeli7-4810MQ
Processor cores4
Processor threads8
Processor boost frequency3.8 GHz
Processor frequency2.8 GHz
System bus rate5 GT/s
Processor cache6 MB
Processor cache typeSmart Cache
Processor lithography22 nm
Processor operating modes64-bit
Processor seriesIntel Core i7-4800 Mobile series
Processor codenameHaswell
Bus typeDMI2
SteppingC0
Thermal Design Power (TDP)47 W
Tjunction100 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
ECC supported by processorNo

Memory

Internal memory16 GB
Internal memory typeDDR3L-SDRAM
Memory clock speed1600 MHz
Memory form factorSO-DIMM
Memory slots4x SO-DIMM
Maximum internal memory32 GB

Storage

Total storage capacity1.25 TB
Storage mediaHDD+SSD
Number of HDDs installed1
HDD capacity1 TB
HDD interfaceSATA
HDD speed7200 RPM
Number of SSDs installed2
SSD capacity128 GB
Optical drive typeBlu-Ray RW
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA® Quadro® K3100M
Discrete graphics card memory4 GB
Discrete graphics memory typeGDDR5
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 4600
Maximum on-board graphics card memory1.74 GB
On-board graphics card base frequency400 MHz
On-board graphics card dynamic frequency (max)1300 MHz
On-board graphics card DirectX version11.1
On-board graphics card OpenGL version4.3
On-board graphics card ID0x416
Graphics card Open GL supportYes

Audio

Audio systemAudio Boost
Number of built-in speakers2
Speakers manufacturerDynaudio
Built-in subwooferYes
Built-in microphoneYes

Camera

Front cameraYes
Front camera resolution1280 x 720 pixels
Video capturing speed30 fps

Optical drive

LightScribeNo

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,1000,100 Mbit/s
BluetoothYes
Bluetooth version4.0

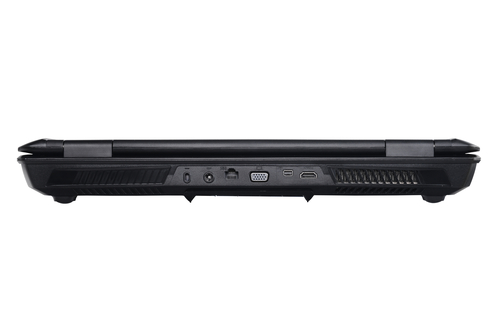

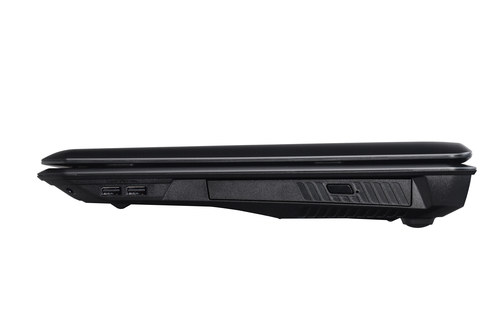

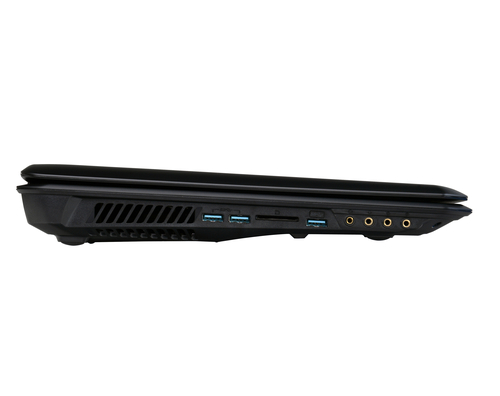

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version1.4
DisplayPorts quantity0
Mini DisplayPorts quantity1
DVI portNo
VGA (D-Sub) ports quantity1
Thunderbolt ports quantity0
Headphone outputs1
S/PDIF out portYes
Line-inYes
Microphone inYes
Docking connectorNo
ExpressCard slotNo
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotNo

Performance

Motherboard chipsetIntel® HM87

Keyboard

Pointing deviceTouchpad
Numeric keypadYes
Windows keysYes

Software

Operating system installedWindows 7 Professional
Operating system architecture64-bit

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Demand Based SwitchingYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel HD GraphicsYes
Intel Identity Protection Technology version1.00
Intel QuickPath InterconnectYes
Intel Secure Key Technology version1.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Built-in Visuals TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Processor ARK ID78937
Processor codeSR15K
Processor package size37.5 x 37.5 x 4.7 mm
Supported instruction setsAVX 2.0
Thermal Monitoring TechnologiesYes
Conflict-Free processorYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells9

Power

AC adapter power180 W
AC adapter frequency50 - 60 Hz
DC-in jackYes

Security

Cable lock slotNo

Weight & dimensions

Weight3.9 kg
Width428 mm
Depth288 mm
Height55 mm

Packaging content

AC adapter includedYes
ManualYes

Other features

3DNo
