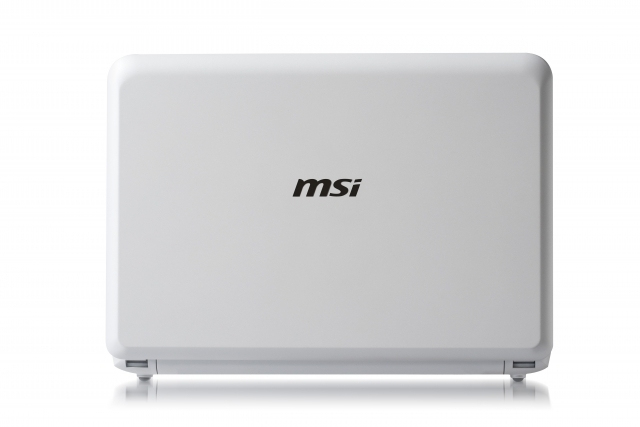

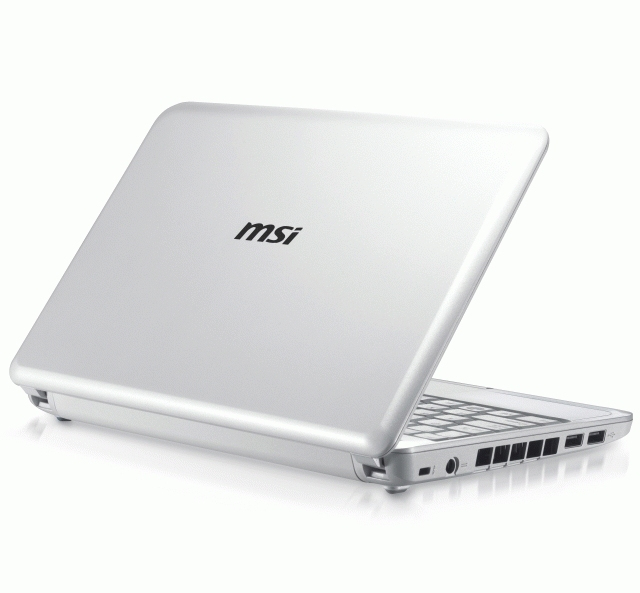

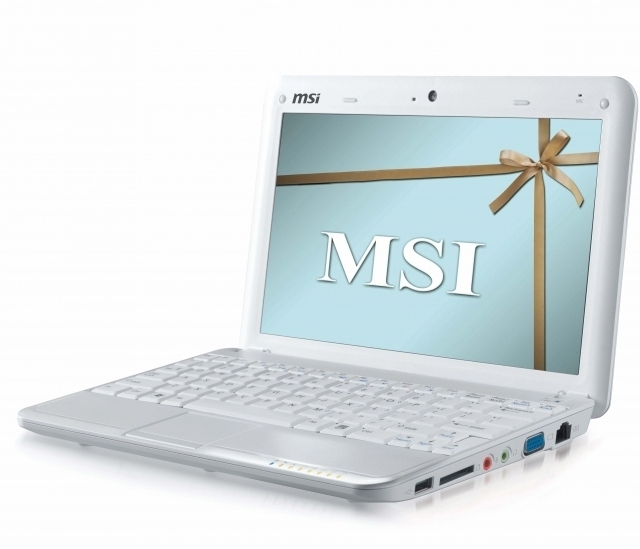

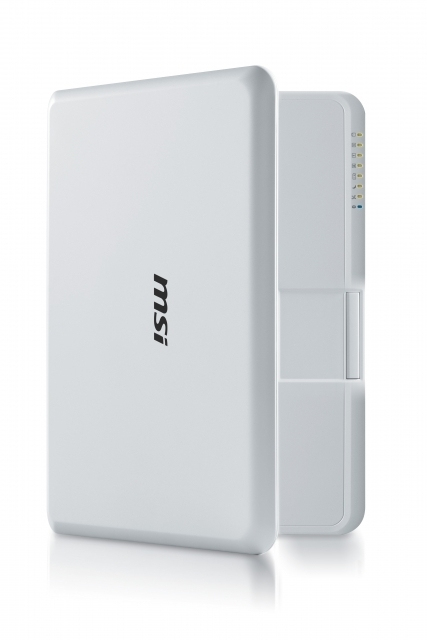

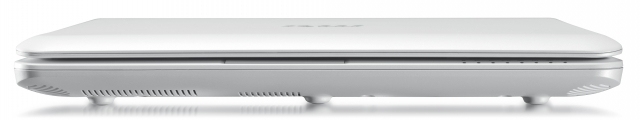

Wind U100W-005NL
Model Wind U100W-005NLPart no. U100W-005NL
86 specifications Checked today
- Display25.4 cm (10")
- Resolution1024 x 600 pixels
- ProcessorIntel Pentium Mobile
- Memory1 GB
- Storage80 GB
- TypeNetbook
Overview
- Display
- 25.4 cm (10")
- Resolution
- 1024 x 600 pixels
- Processor
- Intel Pentium Mobile
- Memory
- 1 GB
- Storage
- 80 GB
- Type
- Netbook
- Brand
- MSI
- Category
- Laptop
- Model
- Wind U100W-005NL
- Part number
- U100W-005NL
- Also known as
- MSI Wind U100W-005NL Intel Pentium Mobile N270 Netbook 25.4 cm (10") 1 GB DDR2-SDRAM Windows XP Home Edition White
Specifications
86 specifications in 16 groups
Design
| Specification | Value |
|---|---|
| Product type | Netbook |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.4 cm (10") |
| Display resolution | 1024 x 600 pixels |
| Native aspect ratio | 5:3 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Mobile |
| Processor model | N270 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Processor socket | Socket F (1207) |
| Processor lithography | 45 nm |
| Processor operating modes | 32-bit |
| Processor series | Intel Atom N200 Series |
| Processor codename | Diamondville |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | C0 |
| Thermal Design Power (TDP) | 2.5 W |
| Tjunction | 90 °C |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 667 MHz |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 80 GB |
| Card reader integrated | Yes |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 1.3 MP |
Network
| Specification | Value |
|---|---|
| Wireless technology | 802.11b/g |

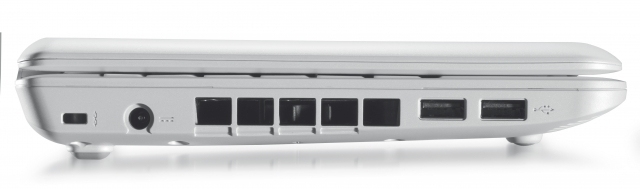

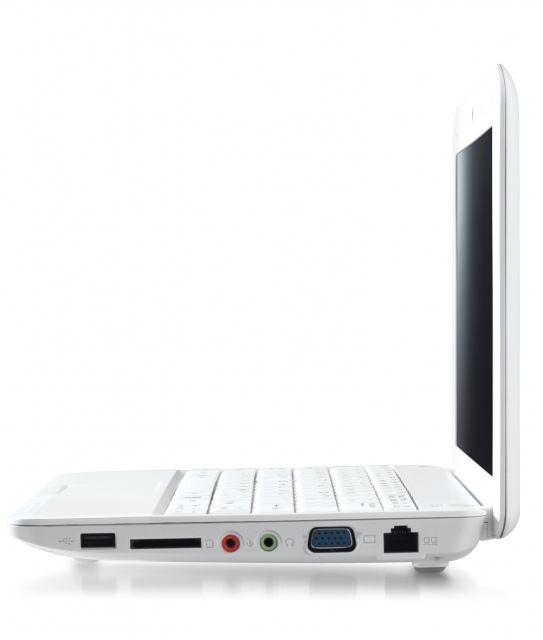

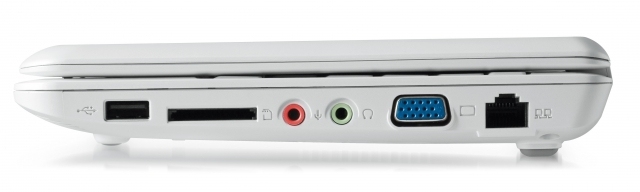

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |

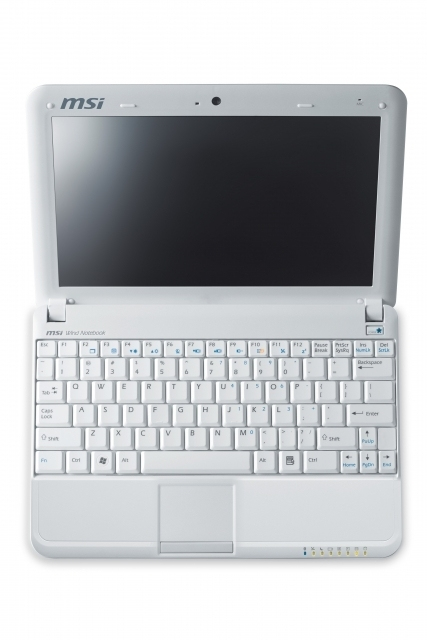

Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Home Edition |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 36331 |
| Processor code | SLB73 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery life (max) | 0 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
Other features
| Specification | Value |
|---|---|
| Supplied AC adapter type | AC |
