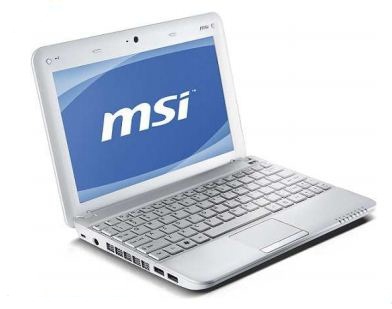

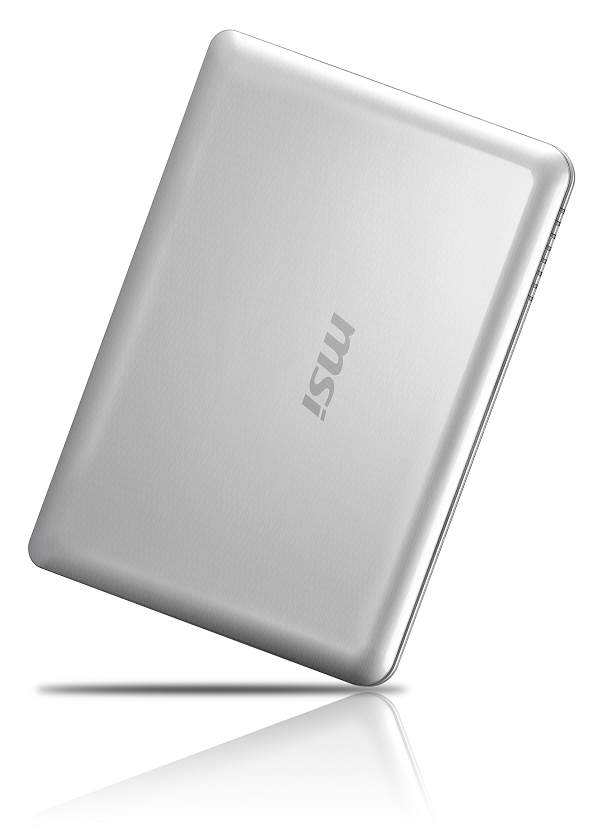

Wind U135DX-2640FR Intel Atom® N570 Netbook
25.4 cm (10") 1 GB DDR3-SDRAM 250 GB Windows 7 Starter White
Model U135DX-2640FRPart no. 9S7-N01429-2640EAN 4719072222383
81 specifications Checked today
- Display25.4 cm (10")
- Resolution1024 x 600 pixels
- ProcessorIntel Atom®
- Memory1 GB
- Storage250 GB
- TypeNetbook
Overview
- Display
- 25.4 cm (10")
- Resolution
- 1024 x 600 pixels
- Processor
- Intel Atom®
- Memory
- 1 GB
- Storage
- 250 GB
- Type
- Netbook
- Brand
- MSI
- Category
- Laptop
- Model
- U135DX-2640FR
- Part number
- 9S7-N01429-2640
- EAN / UPC
- 4719072222383
- Also known as
- MSI Wind U135DX-2640FR Intel Atom® N570 Netbook 25.4 cm (10") 1 GB DDR3-SDRAM 250 GB Windows 7 Starter White
Specifications
81 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product type | Netbook |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.4 cm (10") |
| Display resolution | 1024 x 600 pixels |
| LED backlight | Yes |
| Native aspect ratio | 5:3 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | N570 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.66 GHz |
| System bus rate | 2.5 GT/s |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor codename | Pineview |
| Thermal Design Power (TDP) | 8.5 W |
| Number of Processing Die Transistors | 17 M |
| Processing Die size | 87 mm² |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| HDD capacity | 250 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, SD |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 3150 |
| On-board graphics card base frequency | 200 MHz |
| Graphics card | GMA 3150 |
Audio
| Specification | Value |
|---|---|
| Audio system | HDA |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 0.3 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | Fast Ethernet, WLAN |
| Wireless technology | 802.11 b/g/n |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel NM10 |
| GPS (satellite) | No |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard number of keys | 83 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Starter |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 55637 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
| Battery life (max) | 7.5 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 40 W |
| AC adapter frequency | 50 - 60 Hz |
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.2 kg |
| Width | 260 mm |
| Depth | 180 mm |
| Height (front) | 1.98 cm |
| Height (rear) | 3.15 cm |
Other features
| Specification | Value |
|---|---|
| Supplied AC adapter type | AC |
