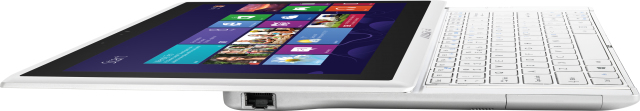

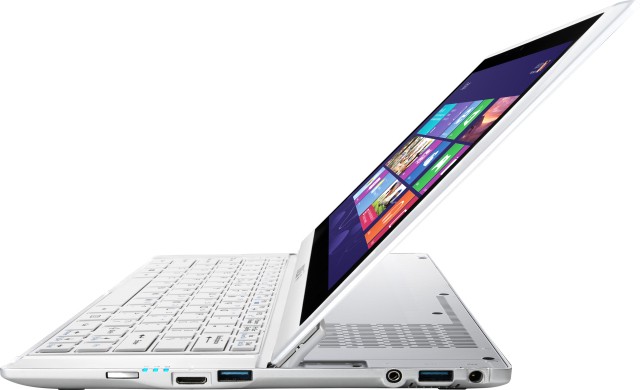

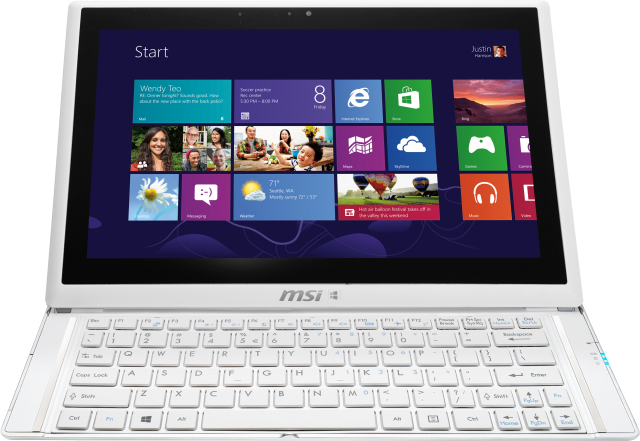

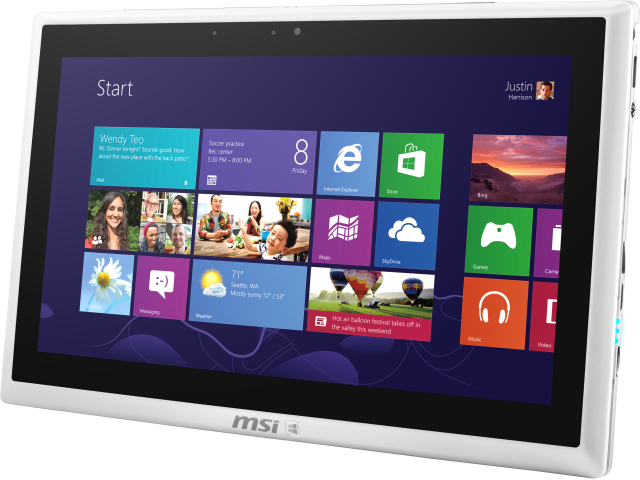

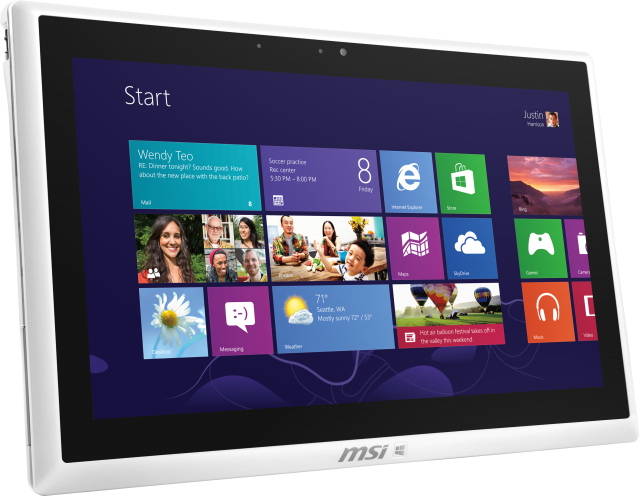

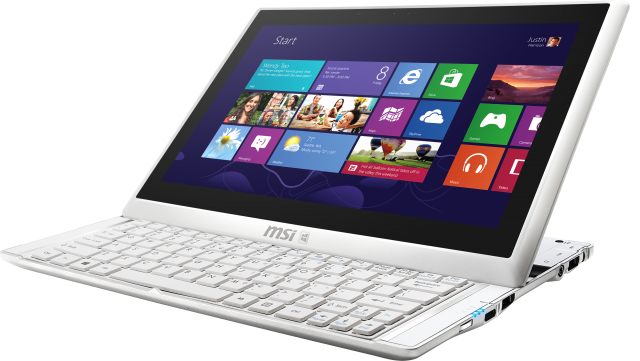

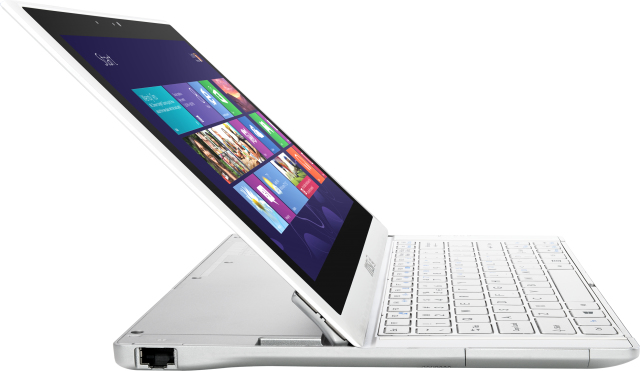

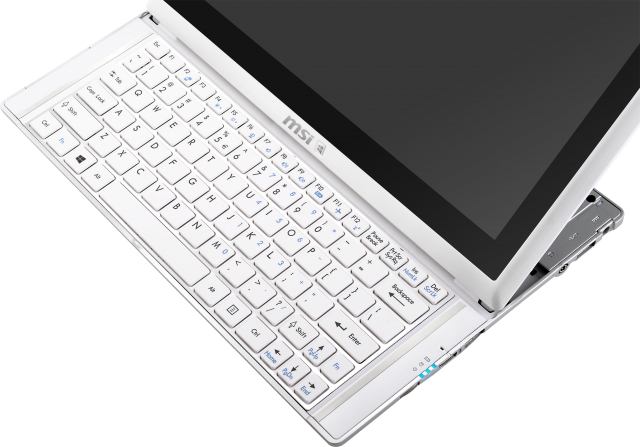

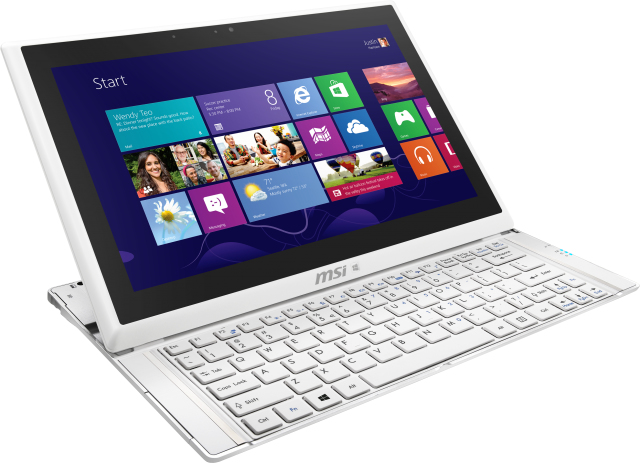

MSI S20 0M-045NL
MSI

S20 0M-045NL

Model S20 0M-045NLEAN 4719072286385

148 specifications Checked today
  • Display29.5 cm (11.6")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • Memory8 GB
  • Storage128 GB
  • GraphicsNot available
See all specifications

Overview

Display
29.5 cm (11.6")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Memory
8 GB
Storage
128 GB
Graphics
Not available
Brand
MSI
Category
Laptop
Model
S20 0M-045NL
Part number
S20 0M-045NL
EAN / UPC
4719072286385
Also known as
MSI S Series S20 0M-045NL laptop Intel® Core™ i5 i5-3337U Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen Full HD 8 GB DDR3-SDRAM 128 GB SSD Windows 8 Black, White

Specifications

148 specifications in 20 groups

Design

Product typeHybrid (2-in-1)
Product colourBlack, White
Form factorConvertible (Track Slider)

Display

Display diagonal29.5 cm (11.6")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
Touch technologyMulti-touch
LED backlightYes
Native aspect ratio16:9

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation3rd gen Intel® Core™ i5
Processor modeli5-3337U
Processor cores2
Processor threads4
Processor boost frequency2.7 GHz
Processor frequency1.8 GHz
System bus rate5 GT/s
Processor cache3 MB
Processor cache typeSmart Cache
Processor socketBGA 1023
Processor lithography22 nm
Processor operating modes64-bit
Processor seriesIntel Core i5-3300 Mobile series
Processor codenameIvy Bridge
Bus typeDMI
FSB ParityNo
SteppingL1
Thermal Design Power (TDP)17 W
Tjunction105 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version2.0
CPU multiplier (bus/core ratio)18
ECC supported by processorNo

Memory

Internal memory8 GB
Internal memory typeDDR3-SDRAM
Memory slots1x SO-DIMM
Maximum internal memory8 GB

Storage

Total storage capacity128 GB
Storage mediaSSD
Number of SSDs installed1
SSD capacity128 GB
SSD interfacemSATA
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsMMC, SD

Graphics

On-board graphics cardYes
Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 4000
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1100 MHz
On-board graphics card ID0x166

Audio

Audio systemTHX TruStudio Pro
Number of built-in speakers2
Built-in microphoneYes

Camera

Video capturing speed30 fps

Optical drive

LightScribeNo

Network

Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.0
Integrated 4G WiMAXYes

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
eSATA/USB 2.0 ports quantity0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0
eSATA ports quantity0
Ethernet LAN (RJ-45) ports1
HDMI ports quantity0
HDMI version1.4
DisplayPorts quantity0
DVI portNo
VGA (D-Sub) ports quantity0
Firewire (IEEE 1394) ports0
Thunderbolt ports quantity0
Mini HDMI ports quantity1
Headphone outputs0
S/PDIF out portNo
Combo headphone/mic portYes
Microphone inNo
Docking connectorNo
ExpressCard slotNo
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotNo

Performance

Motherboard chipsetIntel HM77 Express

Keyboard

Numeric keypadNo

Software

Operating system installedWindows 8
Operating system architecture64-bit

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure Key Technology version1.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Processor ARK ID72055
Processor codeSR0XL
Processor package size31 x 24 (BGA1023)
Supported instruction setsAVX
Thermal Monitoring TechnologiesYes
Conflict-Free processorYes

Battery

Number of battery cells3

Power

AC adapter power40 W
AC adapter output current2.1 A
AC adapter output voltage19 V
DC-in jackYes

Security

Cable lock slotNo

Weight & dimensions

Weight1.16 kg
Width302.6 mm
Depth196.1 mm
Height19.8 mm

Packaging content

AC adapter includedYes
