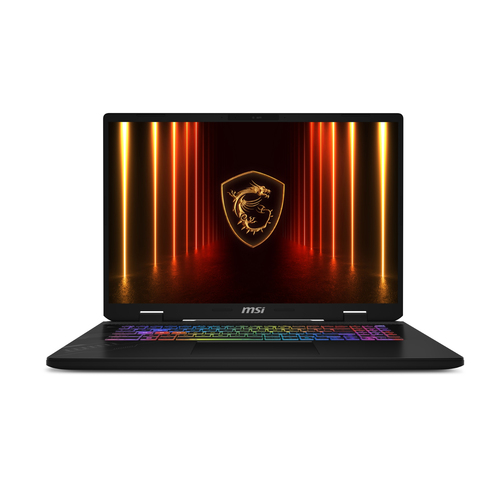

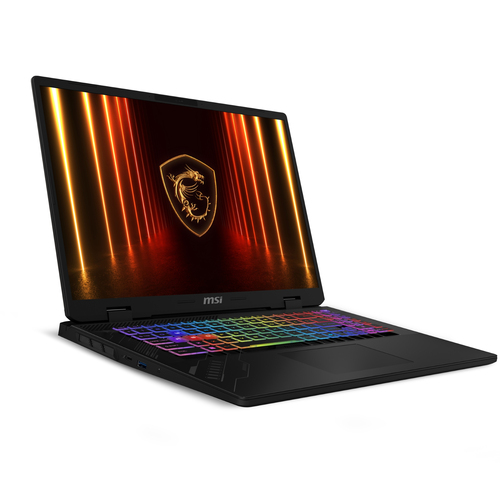

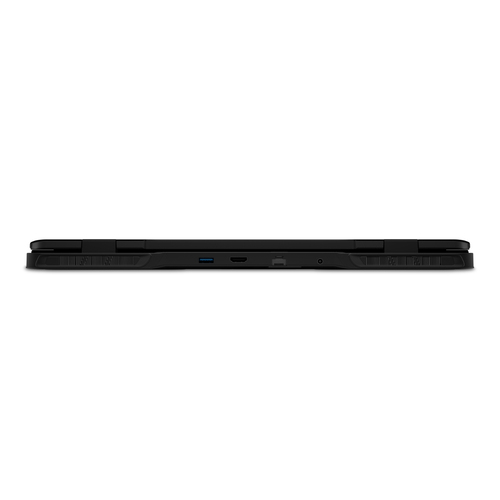

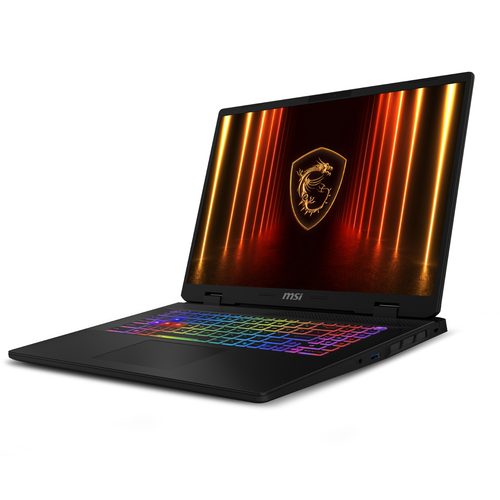

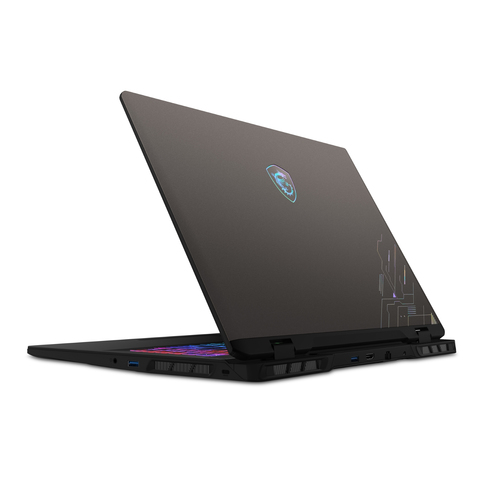

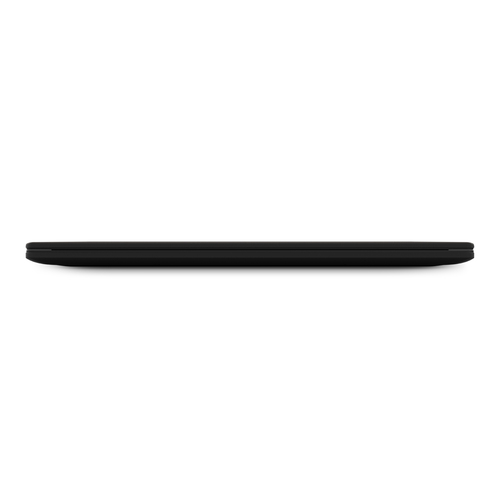

Crosshair 17 HX AI D2XWGKG-075IT
Model Crosshair 17 HX AI D2XWGKG-075ITPart no. CROSSHAIR 17 HX AI D2XWGKG-075ITEAN 4711377452373
116 specifications Checked today
- Display43.2 cm (17")
- Resolution2560 x 1600 pixels
- ProcessorIntel Core Ultra 7
- Memory16 GB
- Storage512 GB
- Battery90 Wh
Overview
- Display
- 43.2 cm (17")
- Resolution
- 2560 x 1600 pixels
- Processor
- Intel Core Ultra 7
- Memory
- 16 GB
- Storage
- 512 GB
- Battery
- 90 Wh
- Brand
- MSI
- Category
- Laptop
- Model
- Crosshair 17 HX AI D2XWGKG-075IT
- Part number
- CROSSHAIR 17 HX AI D2XWGKG-075IT
- EAN / UPC
- 4711377452373
- Also known as
- MSI Crosshair 17 HX AI D2XWGKG-075IT Intel Core Ultra 7 255HX Laptop 43.2 cm (17") Quad HD+ 16 GB DDR5-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 5070 Laptop GPU Wi-
Specifications
116 specifications in 19 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Grey |
| Colour name | Cosmos Gray |
| Form factor | Clamshell |
| Original brand name | MSI |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | Quad HD+ |
| Panel type | IPS-Level |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Colour gamut | 100% |
| RGB colour space | DCI-P3 |
| Maximum refresh rate | 240 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 255HX |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Low Power Efficient-cores | 0 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.5 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 2114 |
| Maximum turbo power | 160 W |
| Processor base power | 55 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 33 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6400 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 96 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 5070 Laptop GPU |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Video capturing speed | 30 fps |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel HM870 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | 24-zone RGB |
| Copilot key | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
| Battery weight | 322 g |
Power
| Specification | Value |
|---|---|
| AC adapter power | 240 W |
| DC-in jack | Yes |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 383.2 mm |
| Depth | 279.9 mm |
| Height | 29.7 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
