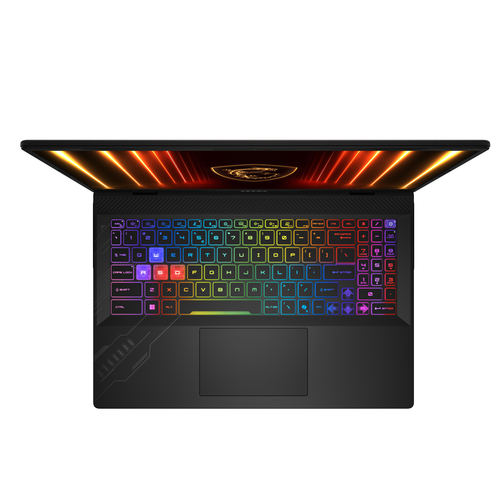

MSI Crosshair 16 HX AI D2XWGKG-087IT

Crosshair 16 HX AI D2XWGKG-087IT

Model Crosshair 16 HX AI D2XWGKG-087ITPart no. CROSSHAIR 16 HX AI D2XWGKG-087ITEAN 4711377358415

114 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel Core Ultra 7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 5070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel Core Ultra 7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 5070

Brand: MSI
Category: Laptop
Model: Crosshair 16 HX AI D2XWGKG-087IT
Part number: CROSSHAIR 16 HX AI D2XWGKG-087IT
EAN / UPC: 4711377358415
Also known as: MSI Crosshair 16 HX AI D2XWGKG-087IT Intel Core Ultra 7 255HX Laptop 40.6 cm (16") Quad HD+ 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 5070 Wi-Fi 6E (802.11

Specifications

114 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Cosmos Gray
Form factor	Clamshell
Original brand name	MSI

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	Quad HD+
Panel type	IPS-Level
Native aspect ratio	16:10
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	240 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel Core Ultra (Series 2)
Processor model	255HX
Processor cores	20
Processor threads	20
Processor boost frequency	5.2 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	30 MB
Maximum turbo power	160 W
Processor base power	55 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	6400 MHz
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	96 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 5070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Number of built-in speakers	2
Speakers manufacturer	Nahimic
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM870
Repairability index	8

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	24-zone RGB
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	240 W
DC-in jack	Yes
USB Type-C charging port	No
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	359 mm
Depth	266.4 mm
Height	27.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
