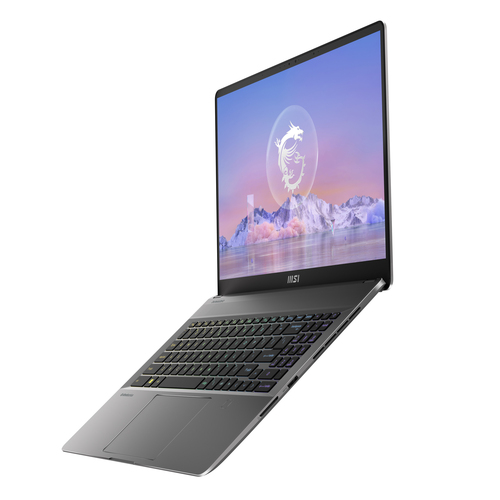

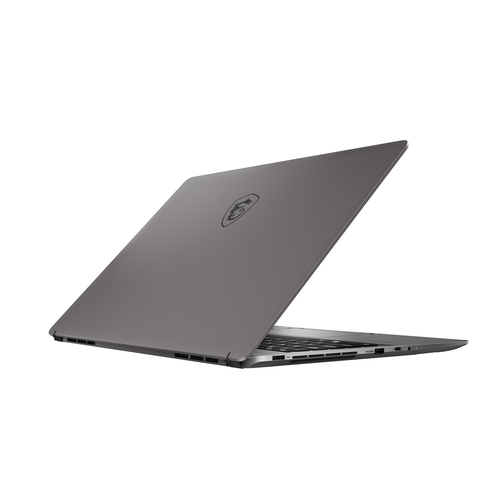

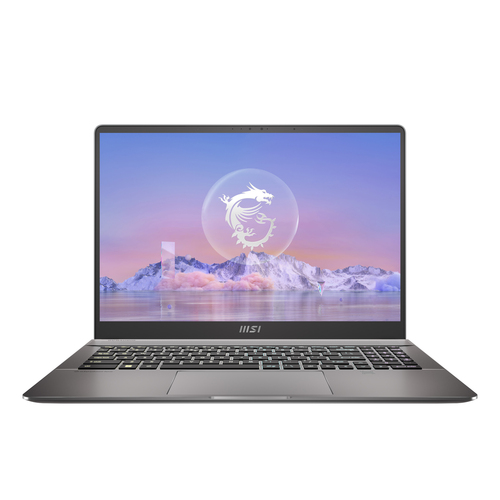

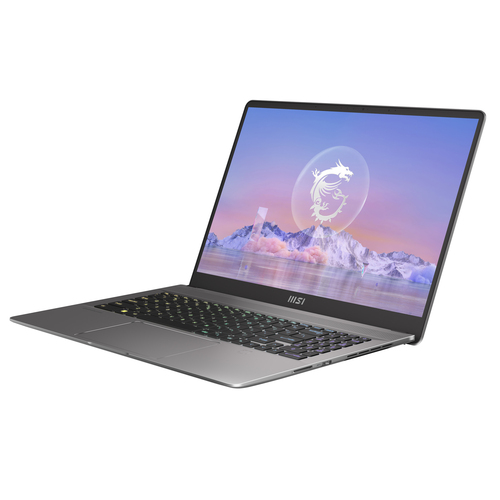

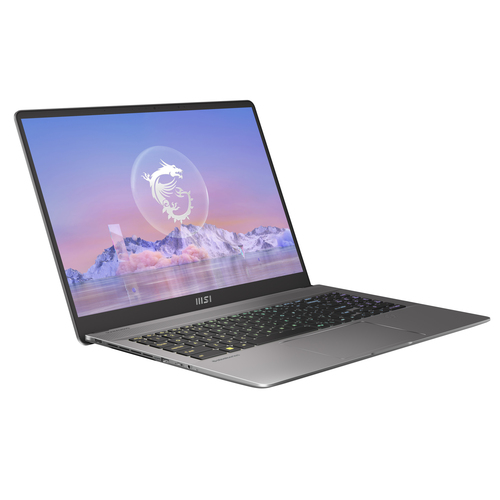

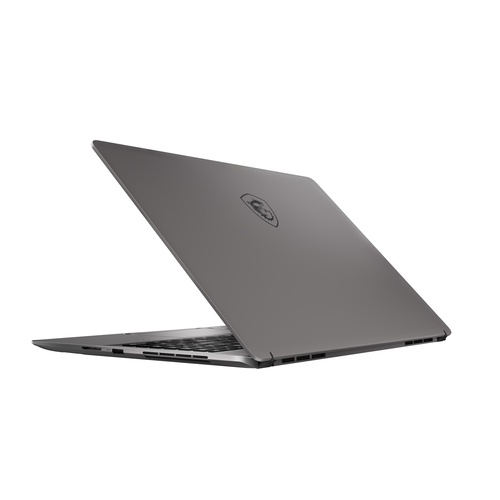

MSI Creator Z16HXStudio B13VGTO-014FR

Creator Z16HXStudio B13VGTO-014FR

Model Creator Z16HXStudio B13VGTO-014FRPart no. CREATOR Z16HXSTUDIO B13VGTO-014FREAN 4711377062060

105 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage2 TB
GraphicsNVIDIA GeForce RTX 4070

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 2 TB
Graphics: NVIDIA GeForce RTX 4070

Brand: MSI
Category: Laptop
Model: Creator Z16HXStudio B13VGTO-014FR
Part number: CREATOR Z16HXSTUDIO B13VGTO-014FR
EAN / UPC: 4711377062060
Also known as: MSI Creator Z16 HX Studio Z16HXStudio B13VGTO-014FR Intel® Core™ i7 i7-13700HX Laptop 40.6 cm (16") Touchscreen Quad HD+ 32 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForc

Specifications

105 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Lunar Gray
Form factor	Clamshell
Original brand name	MSI

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	Yes
HD type	Quad HD+
Panel type	IPS
Native aspect ratio	16:10
Display diagonal (metric)	40.6 cm
Maximum refresh rate	120 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model	i7-13700HX
Processor cores	16
Processor boost frequency	5 GHz
Performance cores	8
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Bus type	DMI4
Configurable TDP-down	45 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	PCI Express 4.0
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
On-board graphics card 4K support	Yes
On-board graphics card 6K support	Yes
Graphics card Open GL support	Yes

Audio

Specification	Value
Number of built-in speakers	4
Speaker power	2 W

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Killer
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM770
Ambient light sensor	Yes
Repairability index	8.1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	Per-key RGB

Software

Specification	Value
Operating system installed	Windows 11 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Intel Flex Memory Access	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	90 Wh

Power

Specification	Value
AC adapter power	280 W
USB Type-C charging port	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes

Weight & dimensions

Specification	Value
Weight	2.35 kg
Width	359 mm
Depth	256 mm
Height	18.4 mm
