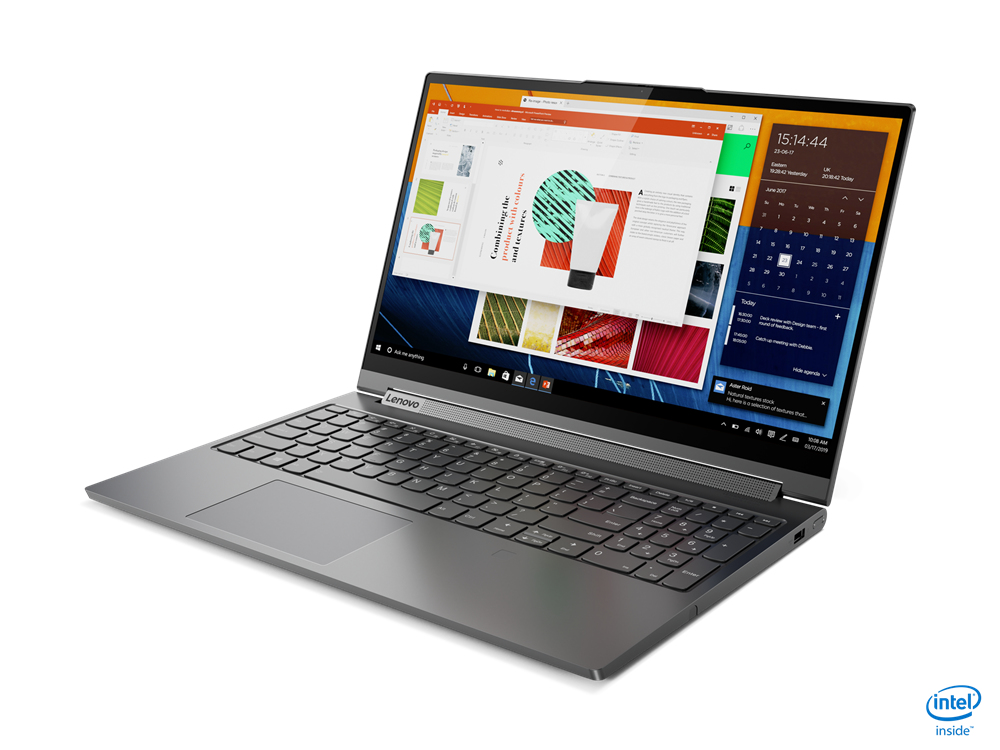

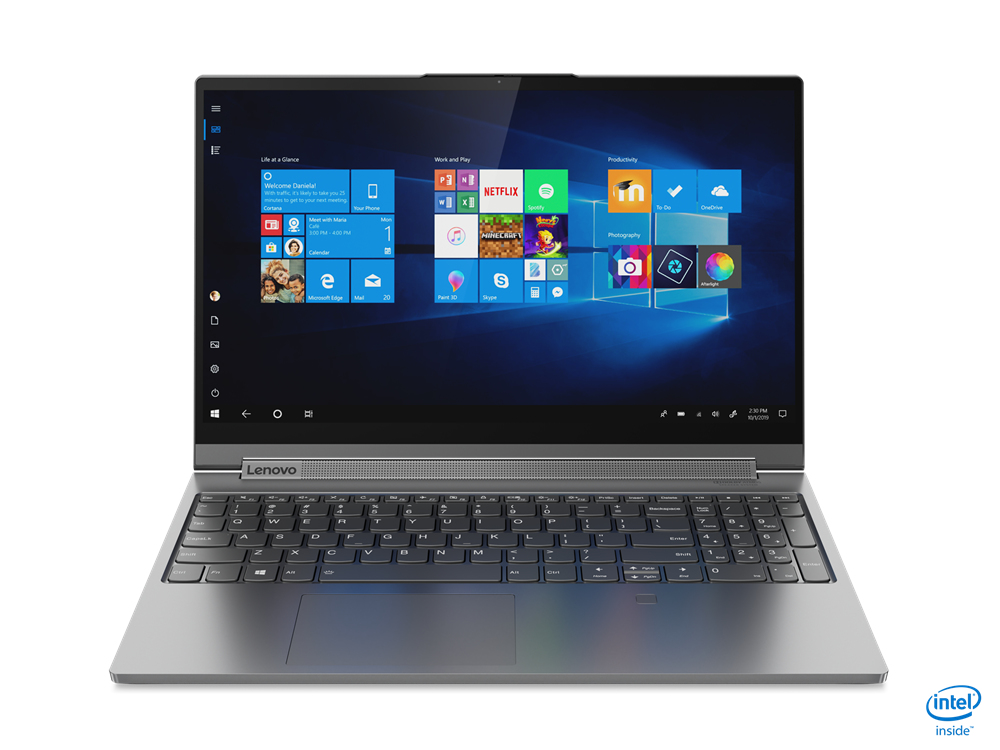

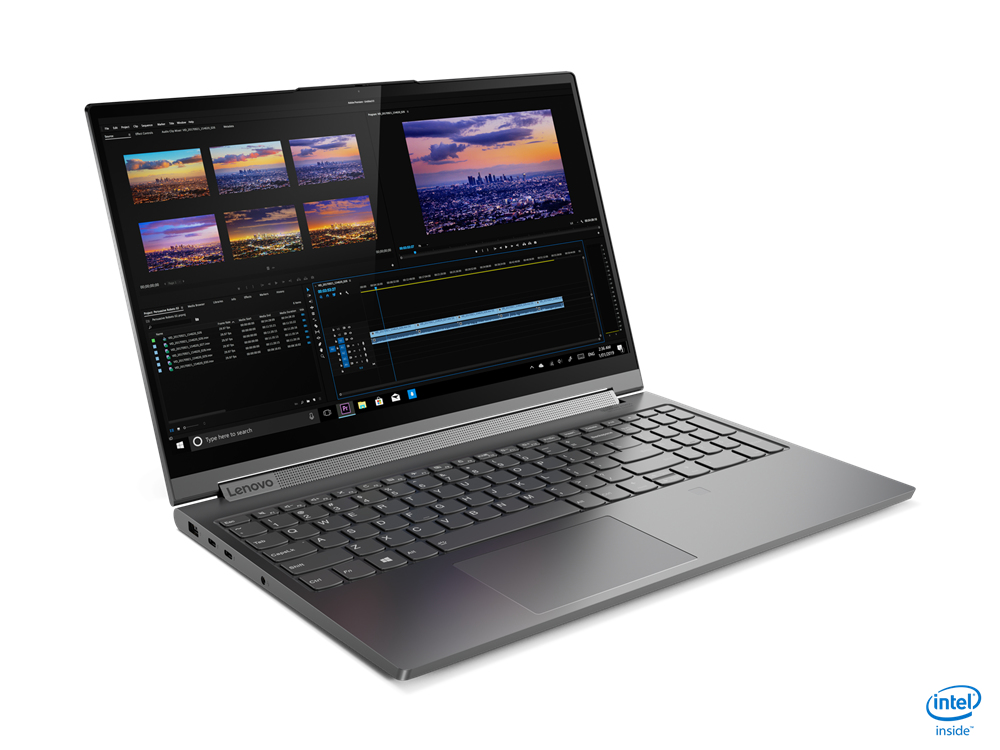

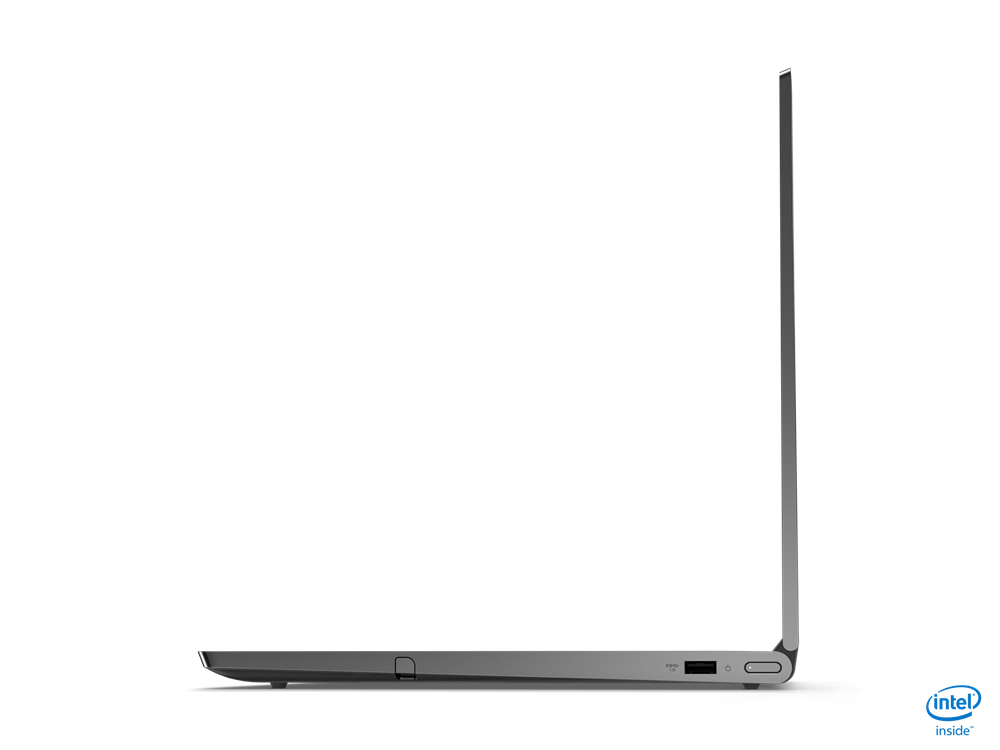

Yoga C940-15IRH
Model Yoga C940-15IRHPart no. 81TE0007SPEAN 193638879503
143 specifications Checked today
- Display39.6 cm (15.6")
- Resolution3840 x 2160 pixels
- ProcessorIntel® Core™ i9
- Memory16 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce® GTX 1650 Max-Q
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 3840 x 2160 pixels
- Processor
- Intel® Core™ i9
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce® GTX 1650 Max-Q
- Brand
- Lenovo
- Category
- Laptop
- Model
- Yoga C940-15IRH
- Part numbers
- 81TE0007SP, 81TE0002US, 81TE000DUS, 81TE000CGE, 81TE000BGE, 81TE000WMZ +22 more
- EAN / UPC
- 193638879503, 194552425722, 5707271892376, 194552705756 +22 more
- Also known as
- Lenovo Yoga C940-15IRH Intel® Core™ i9 i9-9880H Hybrid (2-in-1) 39.6 cm (15.6") Touchscreen 4K Ultra HD 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce® GTX 1650 Max-
Specifications
143 specifications in 22 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Grey |
| Colour name | Iron Grey |

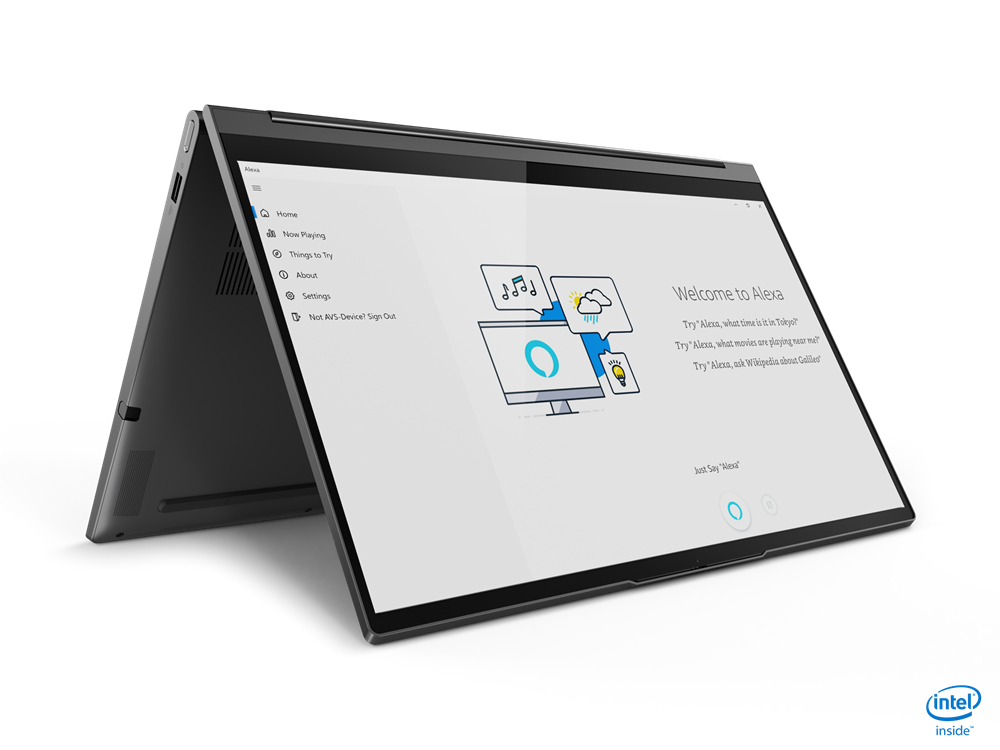

| Form factor | Convertible (Folder) |
| Housing material | Aluminium |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | Yes |
| HD type | 4K Ultra HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 500 cd/m² |
| Dual-screen | No |
| NTSC coverage (typical) | 72% |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 9th gen Intel® Core™ i9 |
| Processor model | i9-9880H |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 2.3 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 16 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1650 Max-Q |
| Discrete graphics card memory | 4 GB |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Number of discrete graphics cards installed | 1 |
| NVIDIA Max-Q | Yes |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 4 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | HD |
| Front camera signal format | 720p |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

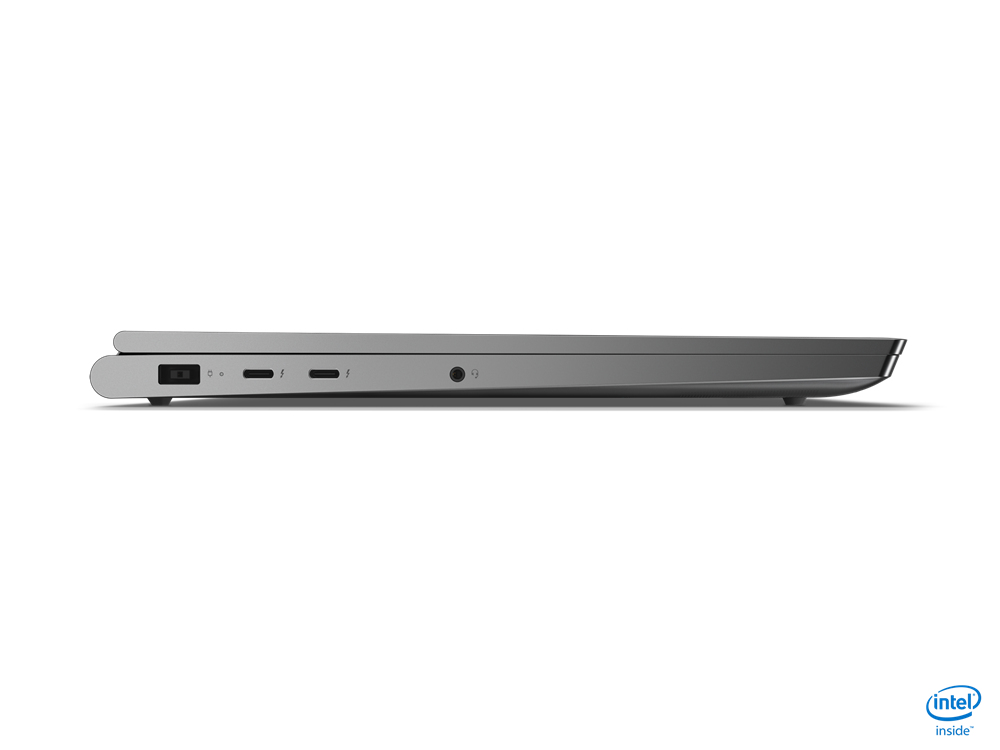

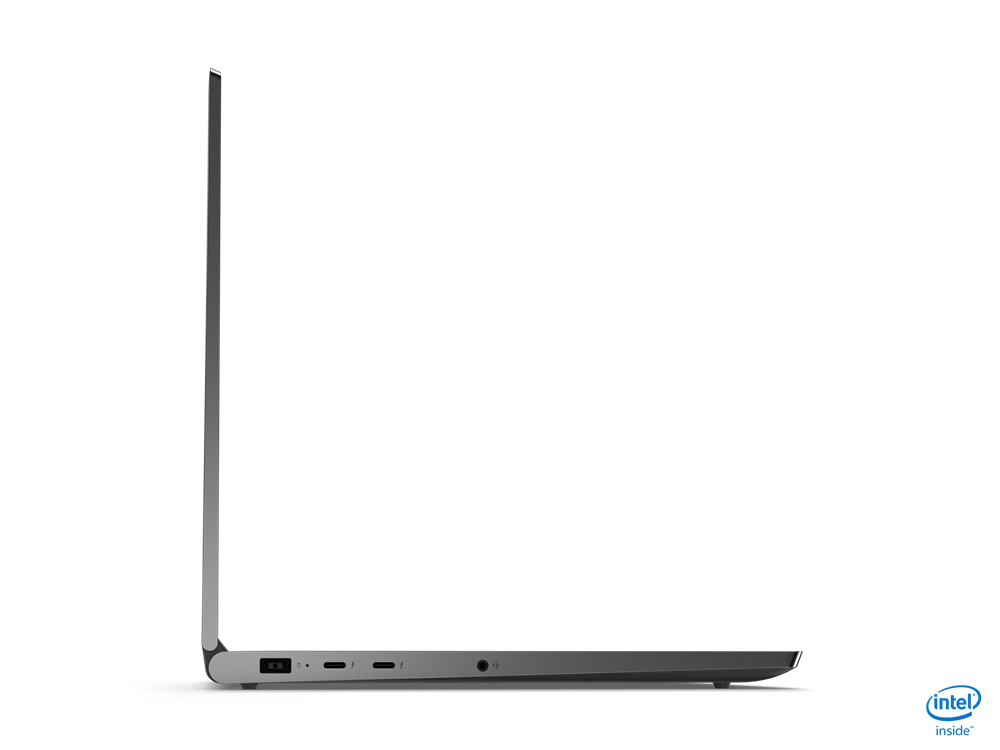

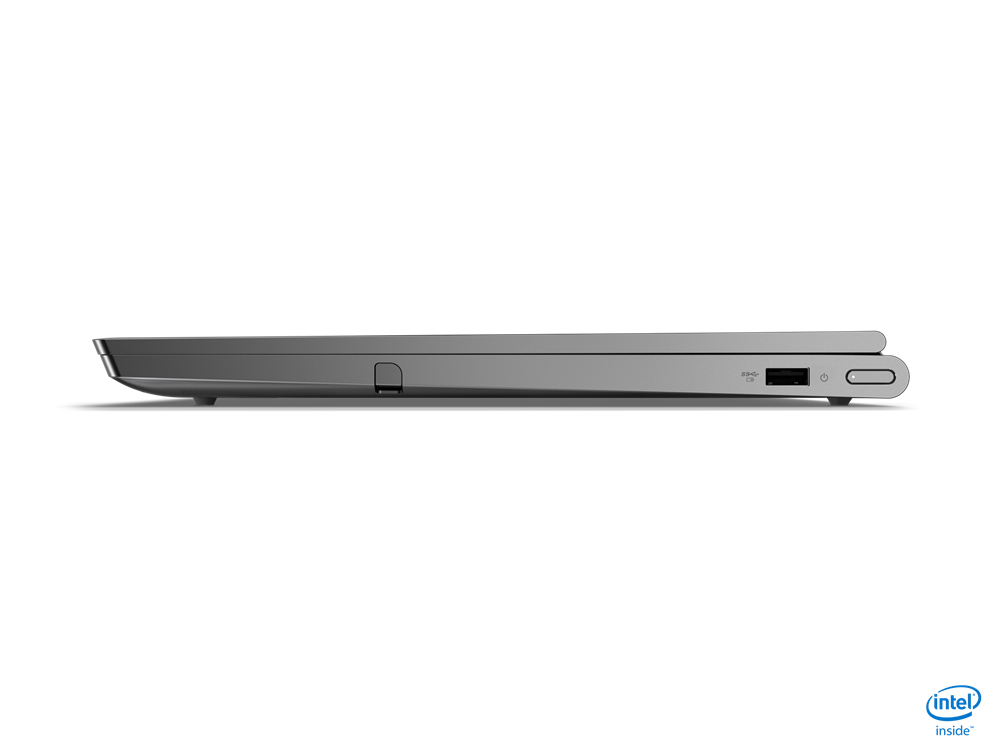

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Combo headphone/mic port | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® HM370 |
| Accelerometer | Yes |
| Ambient light sensor | No |
| Electronic compass | No |
| Gyroscope | No |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 192987 |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 69 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 135 W |
Security
| Specification | Value |
|---|---|
| Fingerprint reader | Yes |
| Password protection | Yes |
| Password protection type | Power on, Supervisor, User |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
| Width | 355.5 mm |
| Depth | 238.5 mm |
| Height (front) | 1.75 cm |
| Height (rear) | 1.97 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |

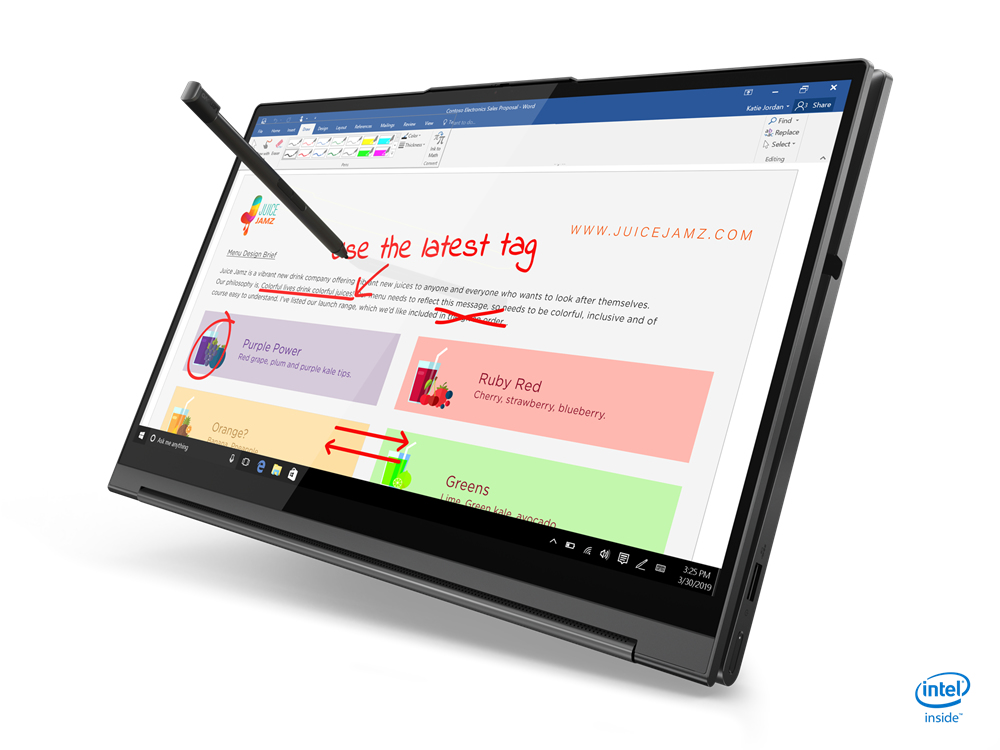

| Stylus pen | Yes |
| Manual | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| TV tuner integrated | No |
