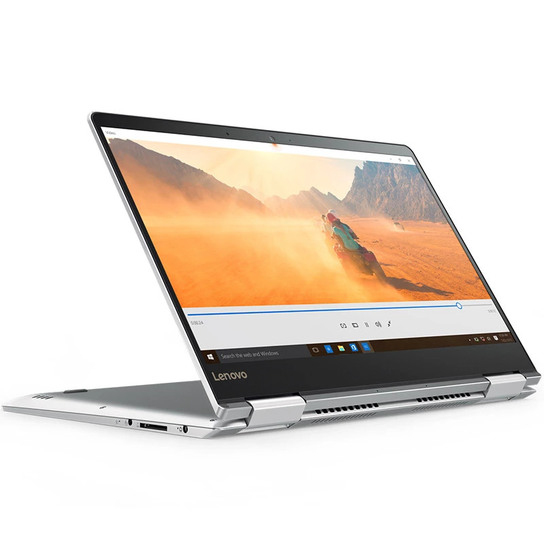

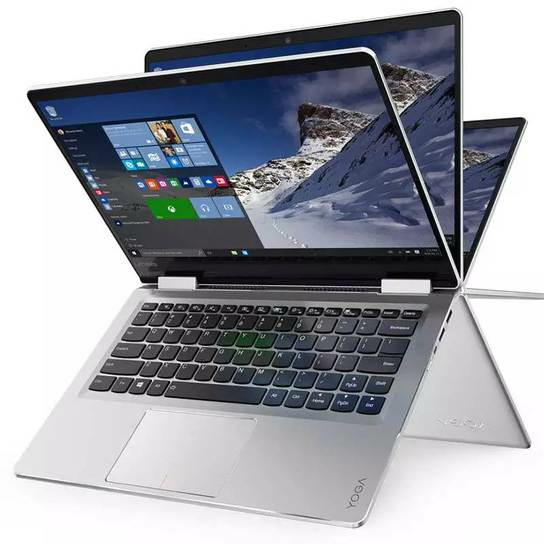

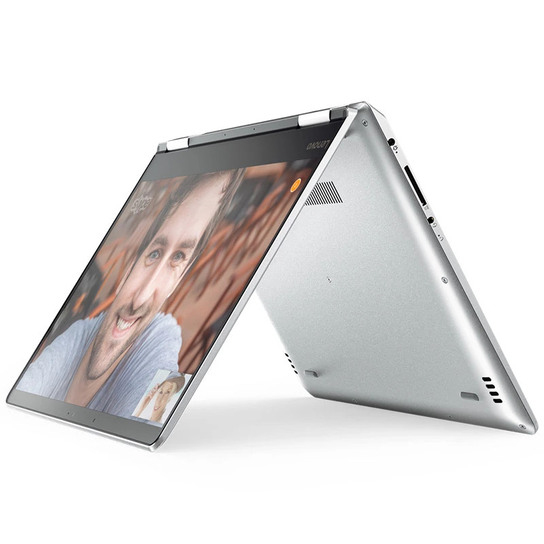

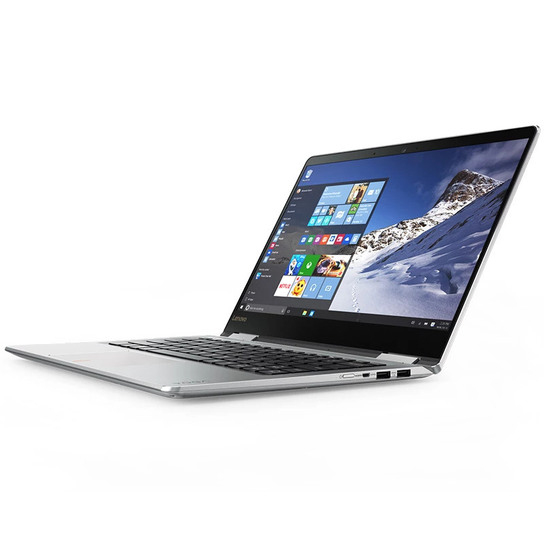

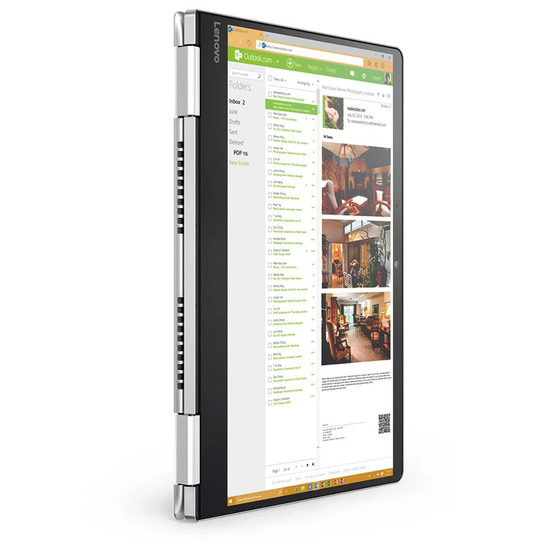

Yoga 710 (14")

Model Yoga 710 (14")Part no. 80TY0014US

190 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNVIDIA® GeForce® 940MX

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: NVIDIA® GeForce® 940MX

Brand: Lenovo
Category: Laptop
Model: Yoga 710 (14")
Part numbers: 80TY0014US, 80TY0015US, 80V4000GUS, 80V40023US
Also known as: Lenovo Yoga 710 (14") Intel® Core™ i5 i5-6200U Hybrid (2-in-1) 35.6 cm (14") Touchscreen Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce® 940MX Windows 10 Ho

Specifications

190 specifications in 24 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, Silver
Form factor	Convertible (Folder)
Housing material	Aluminium

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	Full HD
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²
Dual-screen	No
Contrast ratio (typical)	600:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.8 GHz
Processor frequency	2.3 GHz
System bus rate	4 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1356 (Socket B2)
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-6200 series
Processor codename	Skylake
Bus type	QPI
Stepping	D1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Memory form factor	SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 940MX
Discrete graphics card memory	2 GB
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	1916
Number of discrete graphics cards installed	1
Graphics card Open GL support	Yes

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	1 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
Mini DisplayPort/Thunderbolt combo port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Micro HDMI ports quantity	1
LAN/VGA combo port	No
Headphone outputs	1
Combo headphone/mic port	Yes
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88193
Processor code	SR2EY
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	53 Wh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 2438 m

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.6 kg
Width	322 mm
Depth	223 mm
Height	17.3 mm

Packaging content

Specification	Value
Mouse included	No
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Remote control included	No

Other features

Specification	Value
3D	No
