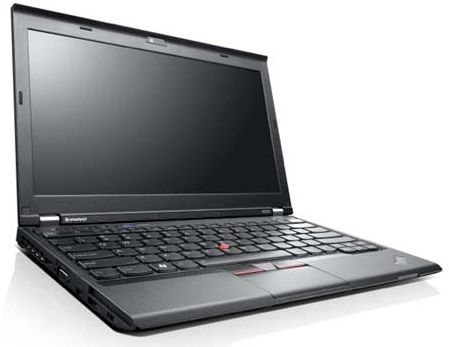

X230 Win7/8 CH
Model X230 Win7/8 CHPart no. 2325TLT
167 specifications Checked today
- Display31.8 cm (12.5")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 31.8 cm (12.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- Laptop
- Model
- X230 Win7/8 CH
- Part numbers
- 2325TLT, 2325ZD9
- Also known as
- Lenovo ThinkPad X230 Win7/8 CH Intel® Core™ i5 i5-3360M Laptop 31.8 cm (12.5") 8 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Black QWERTZ CHE
Specifications
167 specifications in 23 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 31.8 cm (12.5") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor model | i5-3360M |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.5 GHz |
| Processor frequency | 2.8 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| L3 cache | 3 MB |
| L2 cache | 0.512 MB |
| Processor socket | BGA 1023 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-3300 Mobile series |
| Processor codename | Ivy Bridge |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | L1 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| CPU multiplier (bus/core ratio) | 28 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4000 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card ID | 0x166 |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
| Built-in microphone | Yes |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | No |
Network
| Specification | Value |
|---|---|
| Mobile network connection | Yes |
| Mobile network generation | 3G |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| WWAN | Installed |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® 82579LM |
| Integrated 4G WiMAX | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| Docking connector | Yes |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® QM77 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad + Pointing Stick |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Keyboard layout | QWERTZ |
| Keyboard language | CHE |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8 Pro |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 64895 |
| Processor code | SR0MW |
| Processor package size | 37.5 x 37.5 (rPGA988B); 31.0 x 24.0 (BGA1023) |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 9 |
| Battery capacity | 94 Wh |
| Battery life (max) | 10.2 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.65 kg |
| Width | 305 mm |
| Depth | 230 mm |
| Height (front) | 2.5 cm |
| Height (rear) | 3.7 cm |
Hard drive
| Specification | Value |
|---|---|
| Storage drive height | 7 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Power adapter weight | 260 g |
