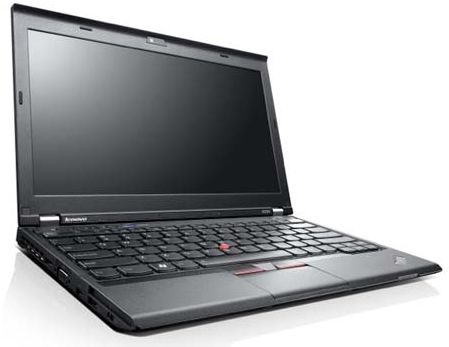

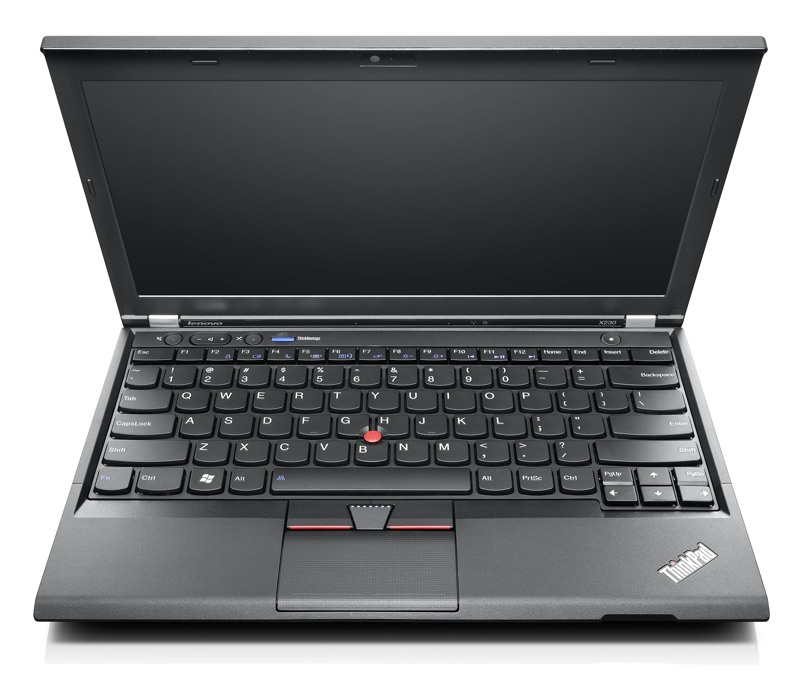

Lenovo X230 Dos CH
Lenovo

X230 Dos CH

Model X230 Dos CHPart no. 2324FE5

157 specifications Checked today
  • Display31.8 cm (12.5")
  • Resolution1366 x 768 pixels
  • ProcessorIntel® Core™ i5
  • Memory8 GB
  • Storage500 GB
  • GraphicsNot available
See all specifications

Overview

Display
31.8 cm (12.5")
Resolution
1366 x 768 pixels
Processor
Intel® Core™ i5
Memory
8 GB
Storage
500 GB
Graphics
Not available
Brand
Lenovo
Category
Laptop
Model
X230 Dos CH
Part numbers
2324FE5, 2325TLU, 2325ZDA
Also known as
Lenovo ThinkPad X230 Dos CH Intel® Core™ i5 i5-3360M 31.8 cm (12.5") 8 GB DDR3-SDRAM 500 GB HDD FreeDOS Black QWERTZ German

Specifications

157 specifications in 22 groups

Design

Product colourBlack
Form factorClamshell

Display

Display diagonal31.8 cm (12.5")
Display resolution1366 x 768 pixels
LED backlightYes
Native aspect ratio16:9
Display surfaceMatt

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation3rd gen Intel® Core™ i5
Processor modeli5-3360M
Processor cores2
Processor threads4
Processor boost frequency3.5 GHz
Processor frequency2.8 GHz
System bus rate5 GT/s
Processor cache3 MB
Processor cache typeSmart Cache
L3 cache4 MB
L2 cache0.512 MB
Processor socketBGA 1023
Processor lithography22 nm
Processor operating modes64-bit
Processor seriesIntel Core i5-3300 Mobile series
Processor codenameIvy Bridge
Bus typeDMI
FSB ParityNo
SteppingL1
Thermal Design Power (TDP)35 W
Tjunction105 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
CPU multiplier (bus/core ratio)28
ECC supported by processorNo

Memory

Internal memory8 GB
Internal memory typeDDR3-SDRAM
Memory clock speed1600 MHz
Memory layout (slots x size)2 x 4 GB
Memory slots2x SO-DIMM
Maximum internal memory16 GB

Storage

Total storage capacity500 GB
Storage mediaHDD
Number of HDDs installed1
HDD capacity500 GB
HDD interfaceSATA II
HDD speed7200 RPM
HDD size2.5"
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsMMC, SD, SDHC, SDXC

Graphics

On-board graphics cardYes
Discrete graphics cardNo
Discrete graphics card modelNot available
Graphics card familyIntel
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 4000
On-board graphics card base frequency650 MHz
On-board graphics card dynamic frequency (max)1200 MHz
On-board graphics card ID0x166

Audio

Audio systemHD
Built-in microphoneYes

Optical drive

LightScribeNo

Network

Mobile network connectionYes
Mobile network generation3G
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.0
WWANInstalled
Cabling technology10/100/1000Base-T(X)
LAN controllerIntel® 82579LM
Integrated 4G WiMAXYes

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1
DVI portNo
VGA (D-Sub) ports quantity1
S/PDIF out portNo
Combo headphone/mic portYes
Microphone inNo
Docking connectorYes
ExpressCard slotYes
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotNo
Modem (RJ-11) ports0

Performance

Motherboard chipsetIntel® QM77 Express

Keyboard

Pointing deviceTouchpad + Pointing Stick
Numeric keypadNo
Keyboard layoutQWERTZ
Keyboard languageGerman

Software

Operating system installedFreeDOS

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure Key Technology version1.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Processor ARK ID64895
Processor codeSR0MW
Processor package size37.5 x 37.5 (rPGA988B); 31.0 x 24.0 (BGA1023)
Supported instruction setsAVX
Thermal Monitoring TechnologiesYes
Conflict-Free processorYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells9
Battery capacity94 Wh
Battery life (max)10.2 h

Power

AC adapter power65 W
DC-in jackYes

Security

Cable lock slotYes
Cable lock slot typeKensington
Fingerprint readerYes
Trusted Platform Module (TPM)Yes

Certificates

Compliance certificatesRoHS

Sustainability

Sustainability certificatesEPEAT Gold, ENERGY STAR

Weight & dimensions

Weight1.65 kg
Width305 mm
Depth230 mm
Height (front)1.9 cm
Height (rear)3.5 cm

Packaging content

AC adapter includedYes

Other features

Infrared data portNo
Power adapter weight260 g
