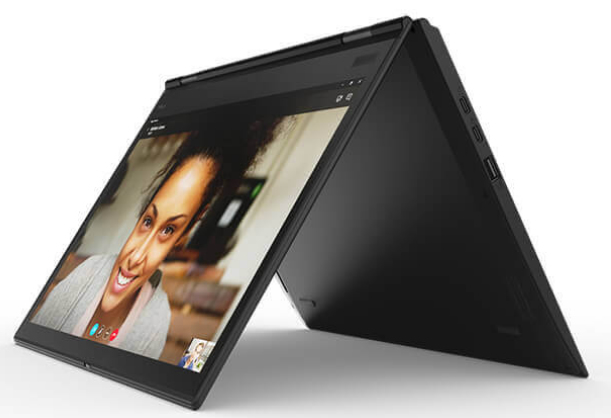

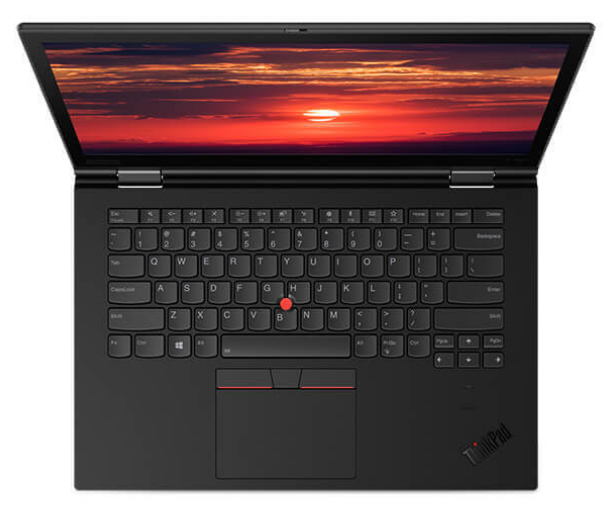

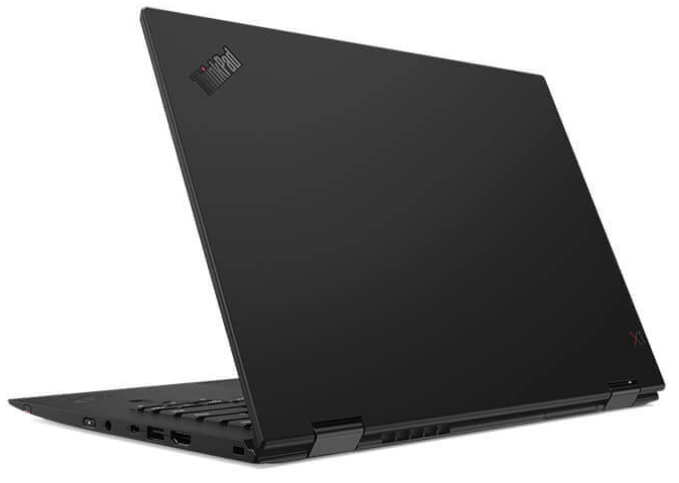

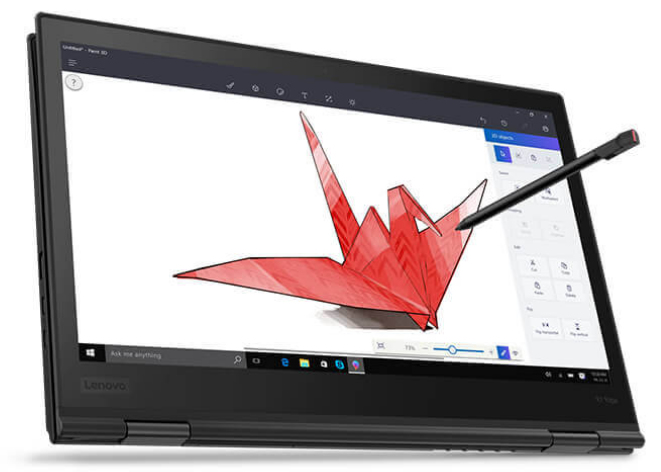

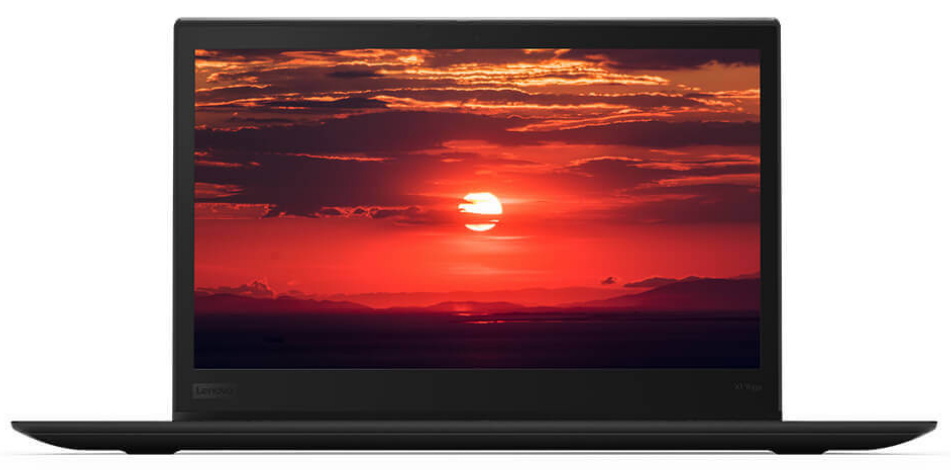

X1 Yoga (3rd Gen)
Model X1 Yoga (3rd Gen)Part no. 20LES3WN00EAN 193124435640
169 specifications Checked today
- Display35.6 cm (14")
- Resolution2560 x 1440 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNot available
Overview
- Display
- 35.6 cm (14")
- Resolution
- 2560 x 1440 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- Laptop
- Model
- X1 Yoga (3rd Gen)
- Part numbers
- 20LES3WN00, 20LES3WP00, 20LES22700
- EAN / UPC
- 193124435640, 5707271778663
- Also known as
- Lenovo ThinkPad X1 Yoga (3rd Gen) Intel® Core™ i7 i7-8550U Hybrid (2-in-1) 35.6 cm (14") Touchscreen Quad HD 16 GB LPDDR3-SDRAM 512 GB SSD Windows 10 Pro Black
Specifications
169 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Black |
| Form factor | Convertible (Folder) |
| Housing material | Carbon fibre, Magnesium |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 2560 x 1440 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| HD type | Quad HD |
| Touch technology | Multi-touch |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 500 cd/m² |
| Contrast ratio (typical) | 1500:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor model | i7-8550U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 1.8 GHz |
| System bus rate | 4 GT/s |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1356 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake R |
| Bus type | OPI |
| Stepping | Y0 |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 2133 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
| Maximum internal memory (64-bit) | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Maximum on-board graphics card memory | 32 GB |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5917 |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 1 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Audio decoders | Dolby Atmos |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 1 MP |
| Front camera HD type | HD |
| Front camera resolution | 1280 x 720 pixels |
| Front camera signal format | 720p |
Network
| Specification | Value |
|---|---|
| Mobile network connection | Yes |
| Mobile network generation | 4G |
| 3G standards | DC-HSPA+, UMTS |
| 4G standard | LTE |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| WWAN | Installed |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Thunderbolt 3 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Windows keys | Yes |
| Keyboard language | Swiss |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 122589 |
| Processor package size | 42 x 24 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery capacity | 54 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | MIL-STD-810G |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.4 kg |
| Width | 333 mm |
| Depth | 229 mm |
| Height | 17.1 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Stylus pen | Yes |
| Manual | Yes |
| Warranty card | Yes |
