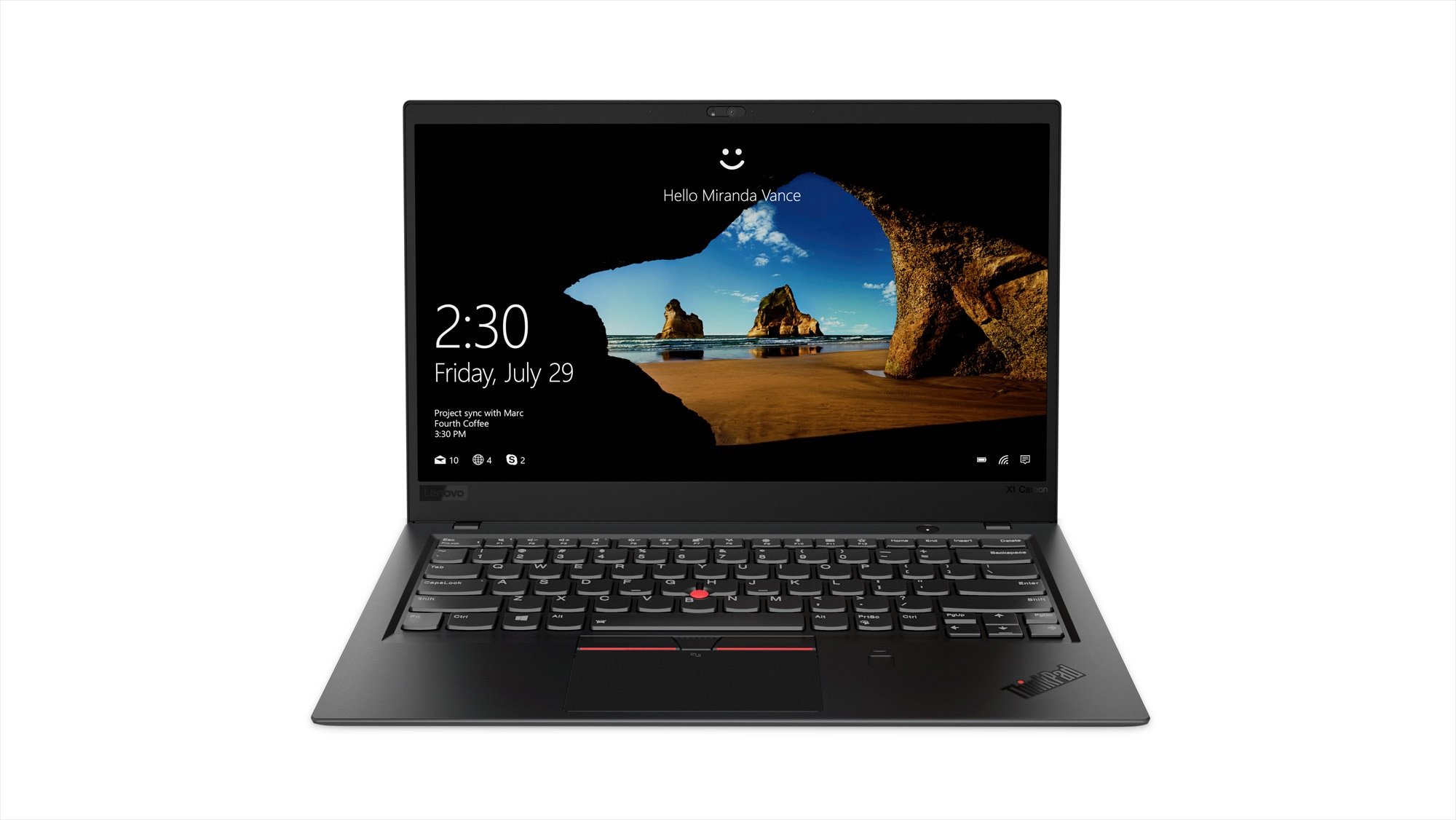

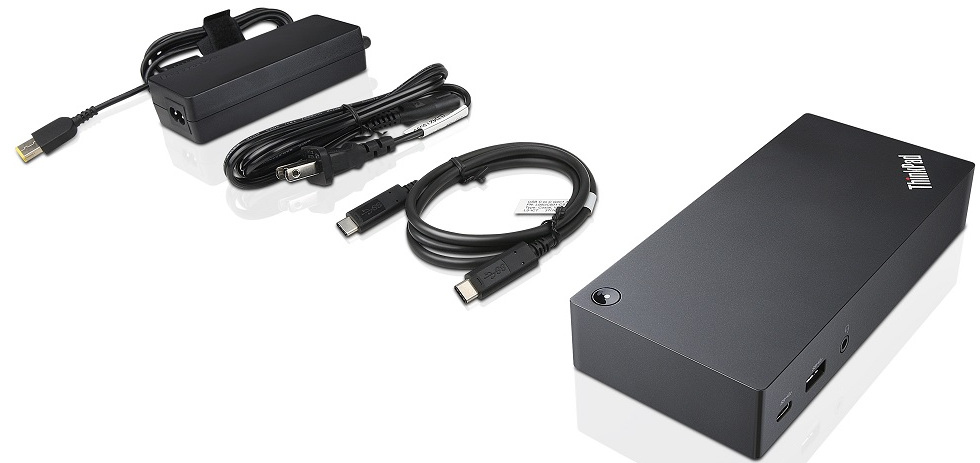

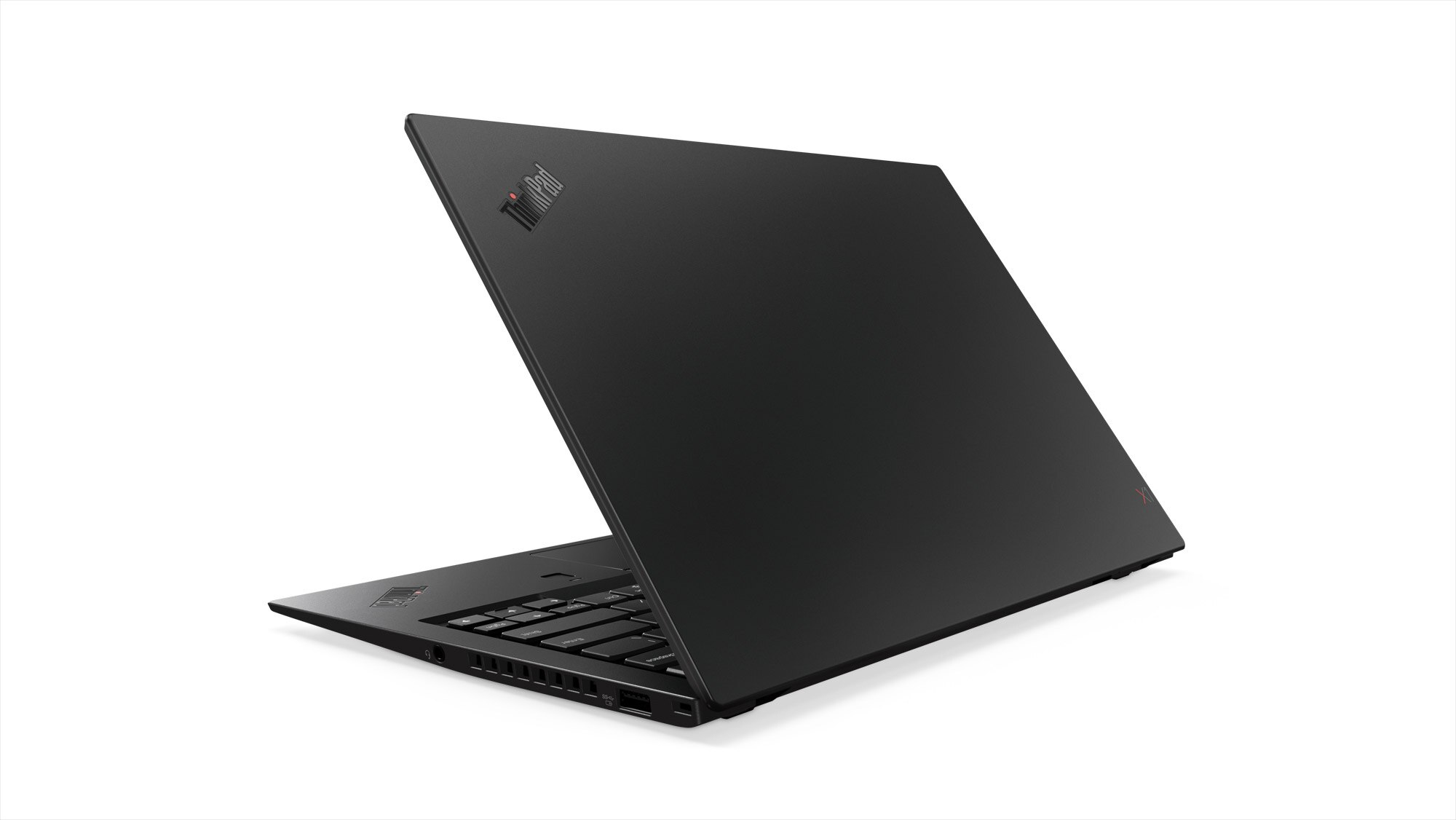

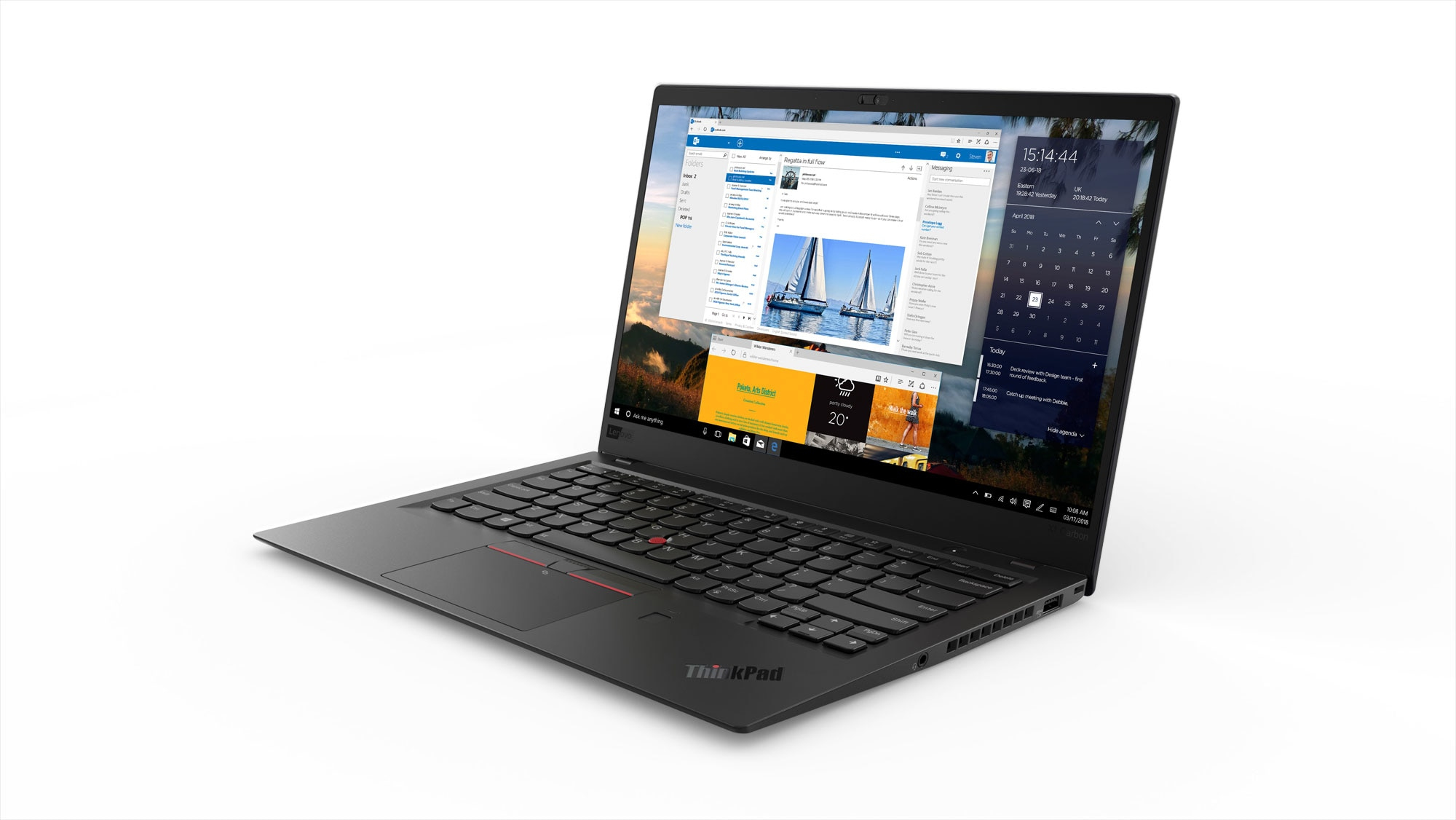

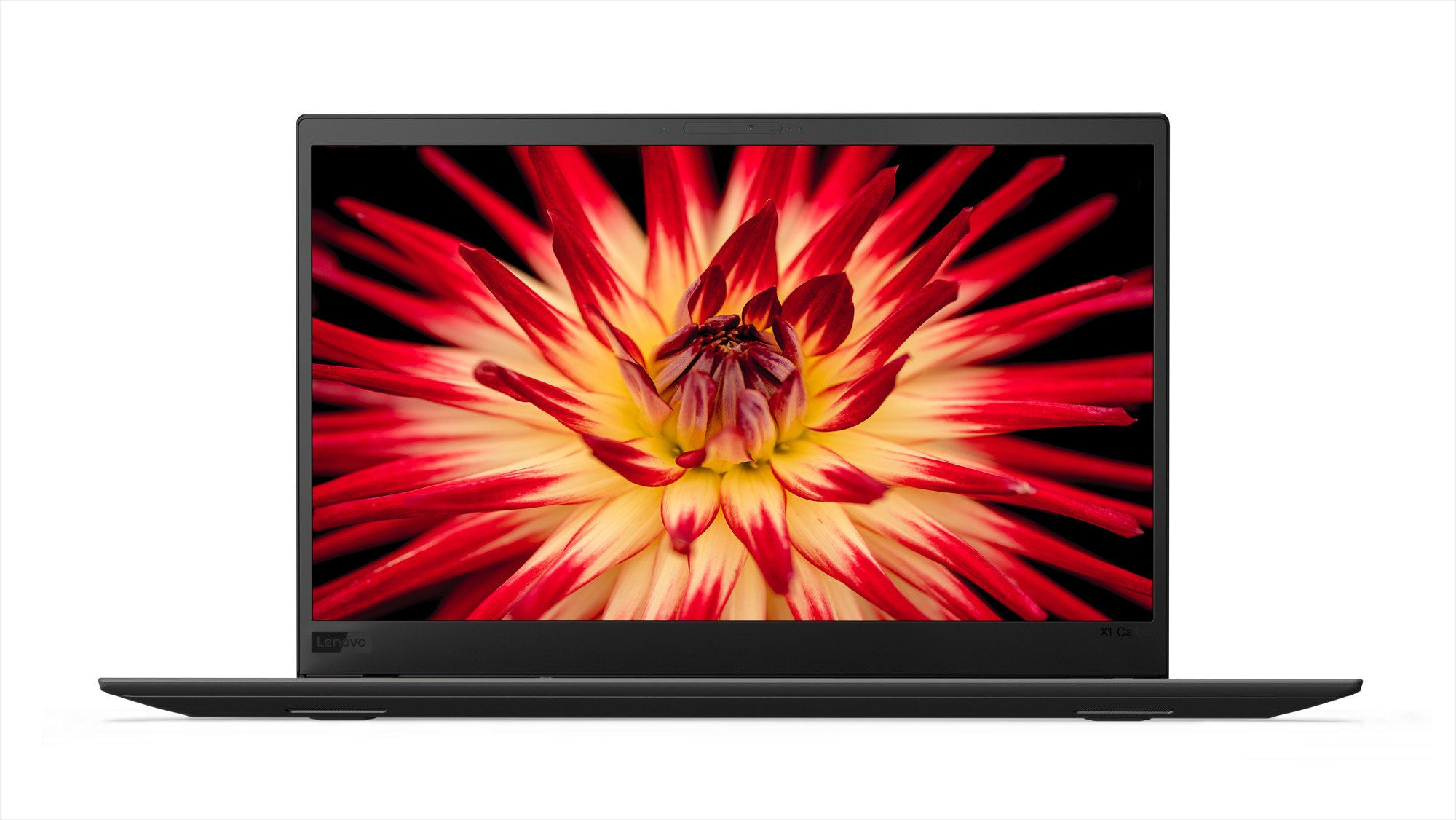

X1 Carbon + USB-C Dock

Model X1 Carbon + USB-C DockPart no. 20KHS2GH00-USBCDOCK

157 specifications Checked today

Overview

Brand: Lenovo
Category: Laptop
Model: X1 Carbon + USB-C Dock
Part numbers: 20KHS2GH00-USBCDOCK, 20KH006QAU-DOCK, 20KH006TAU-DOCK, 20KHS0C200-DOCK, 20KHS0C500-DOCK, 20KH000FAU-USBCDOCK +9 more
Also known as: Lenovo ThinkPad X1 Carbon + USB-C Dock Intel® Core™ i5 i5-8250U Laptop 35.6 cm (14") Touchscreen Full HD 8 GB LPDDR3-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Black

157 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8250U
Processor cores	4
Processor threads	8
Processor boost frequency	3.4 GHz
Processor frequency	1.6 GHz
System bus rate	4 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	BGA 1356
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake R
Bus type	OPI
Stepping	Y0
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-up	25 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 620
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	0x5917

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	1.4b
DisplayPorts quantity	0
Thunderbolt 3 ports quantity	0
Headphone outputs	0
Combo headphone/mic port	Yes
Microphone in	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Specification	Value
Motherboard chipset	Intel SoC

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	124967
Processor code	SR3LA
Processor package size	42 X 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
