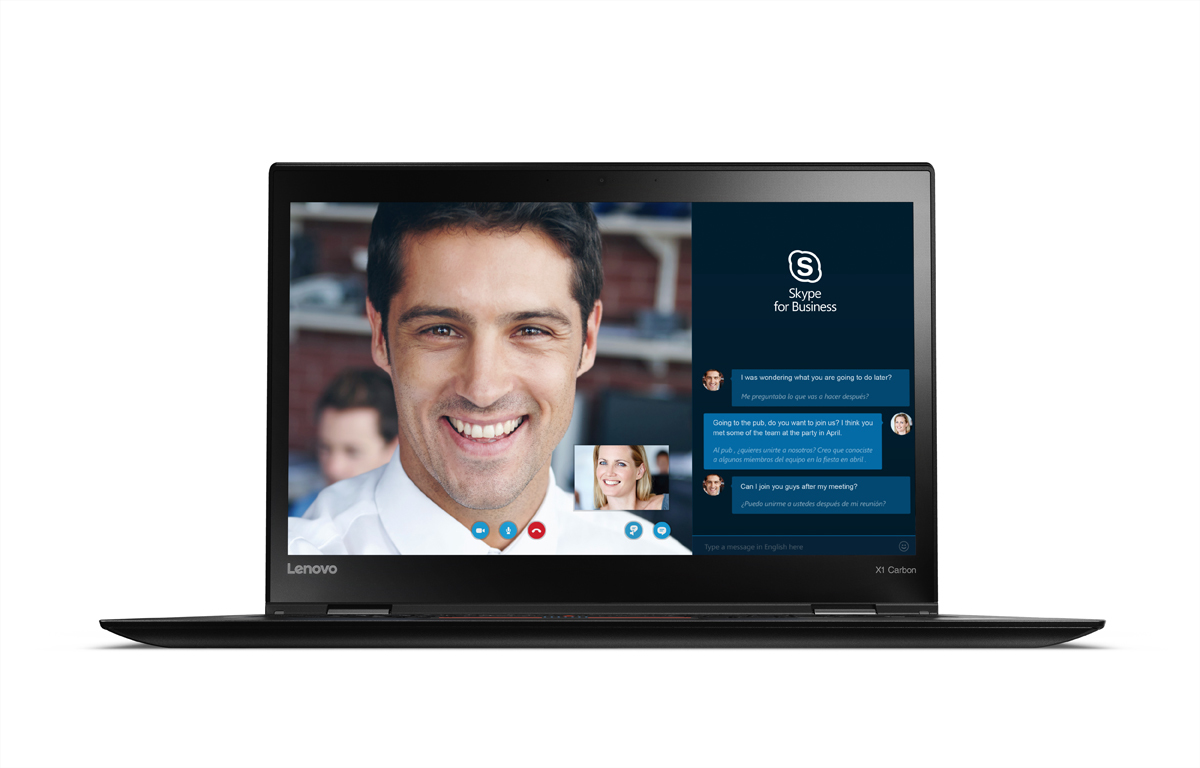

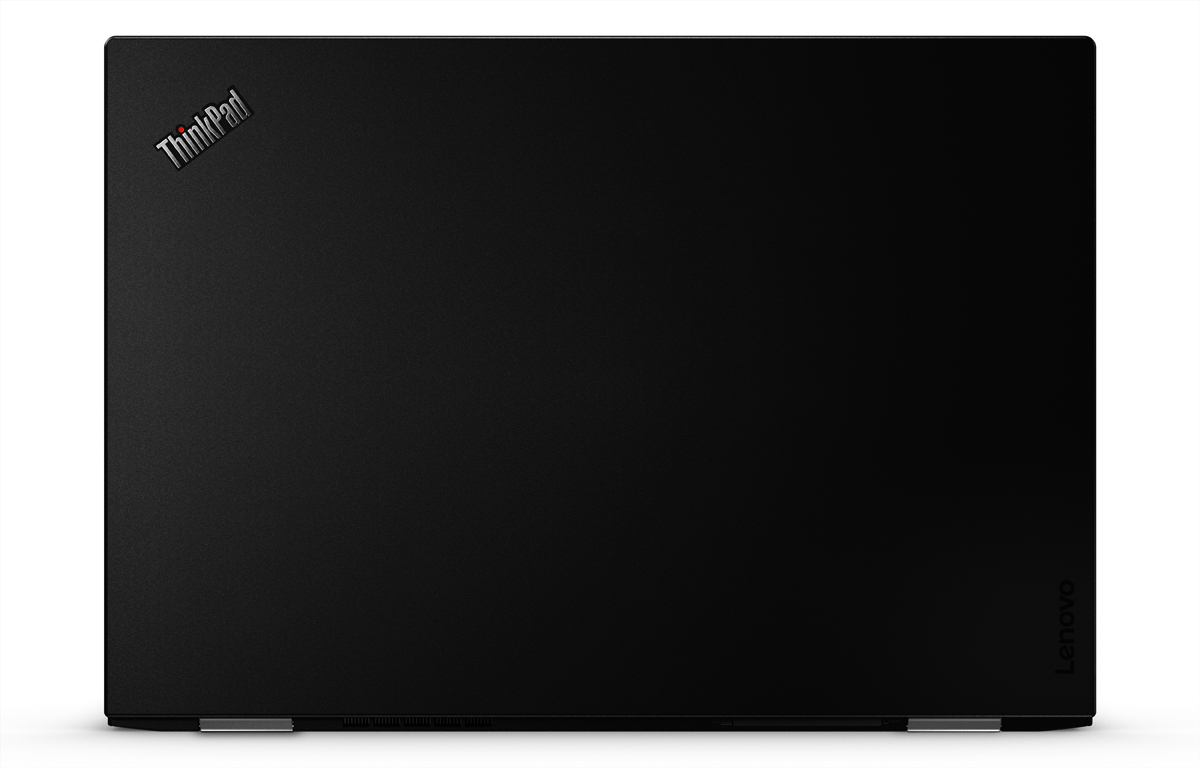

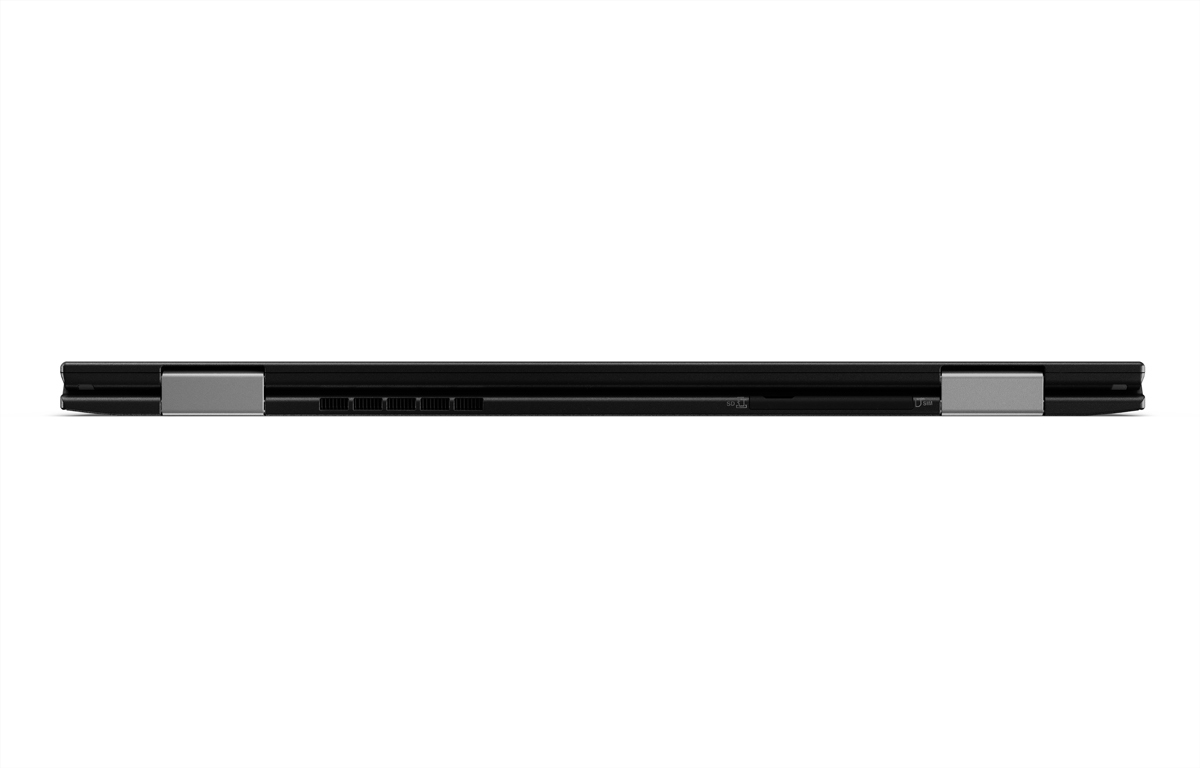

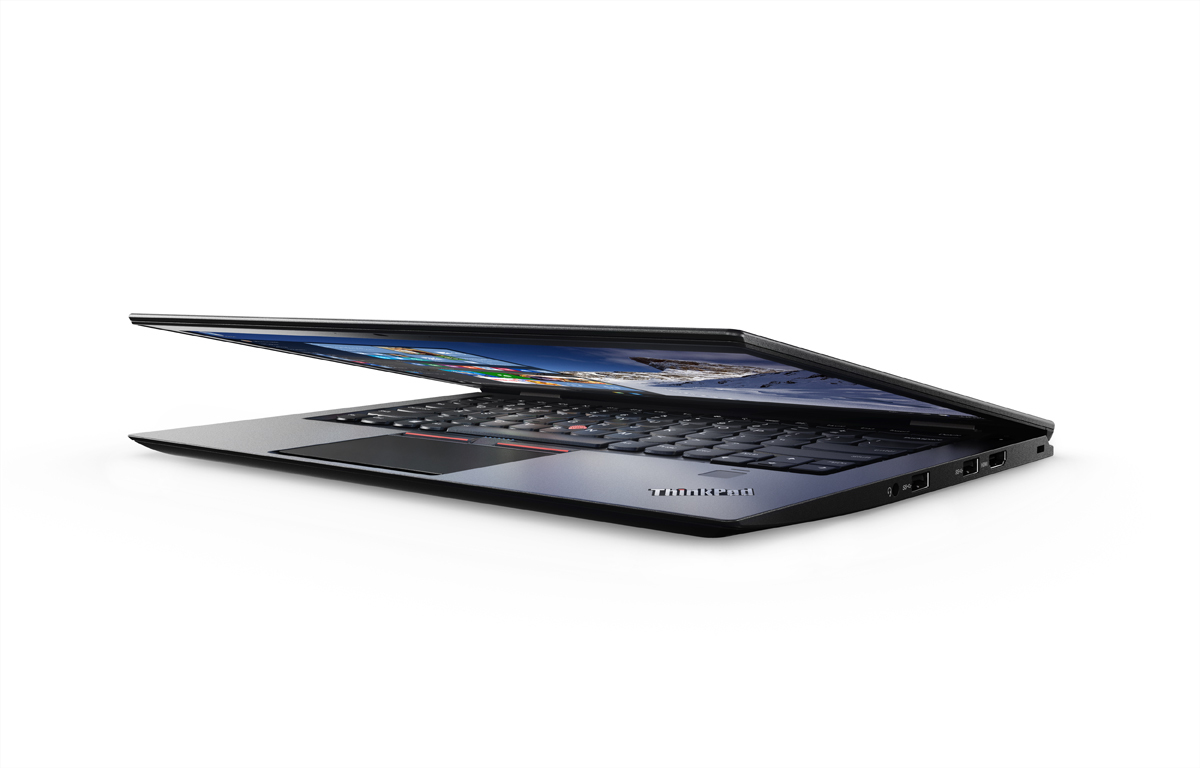

X1 Carbon (4th Gen.) DOS CH

Model X1 Carbon (4th Gen.) DOS CHPart no. 20FCS33B00EAN 190940088050

149 specifications Checked today

Display35.6 cm (14")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
Battery52 Wh

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Battery: 52 Wh

Brand: Lenovo
Category: Laptop
Model: X1 Carbon (4th Gen.) DOS CH
Part number: 20FCS33B00
EAN / UPC: 190940088050
Also known as: Lenovo ThinkPad X1 Carbon (4th Gen.) DOS CH

Specifications

149 specifications in 17 groups

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2560 x 1440 pixels
Touchscreen	No
HD type	Quad HD
Panel type	IPS
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6600U
Processor cores	2
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	2.6 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
L3 cache	4 MB
L2 cache	0.512 MB
Processor socket	LGA 1356 (Socket B2)
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6600 Mobile Series
Processor codename	Skylake
Bus type	OPI
Stepping	D1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 4x1
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1866 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Storage media	SSD
SSD capacity	512 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Compatible memory cards	MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	32 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	1916
Maximum resolution	4096 x 2160 pixels

Camera

Specification	Value
Front camera signal format	720p
Rear camera	No

Network

Specification	Value
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
WLAN controller model	Intel Dual Band Wireless-AC 8260
Ethernet LAN	No
Bluetooth version	4.1
WWAN	Installed

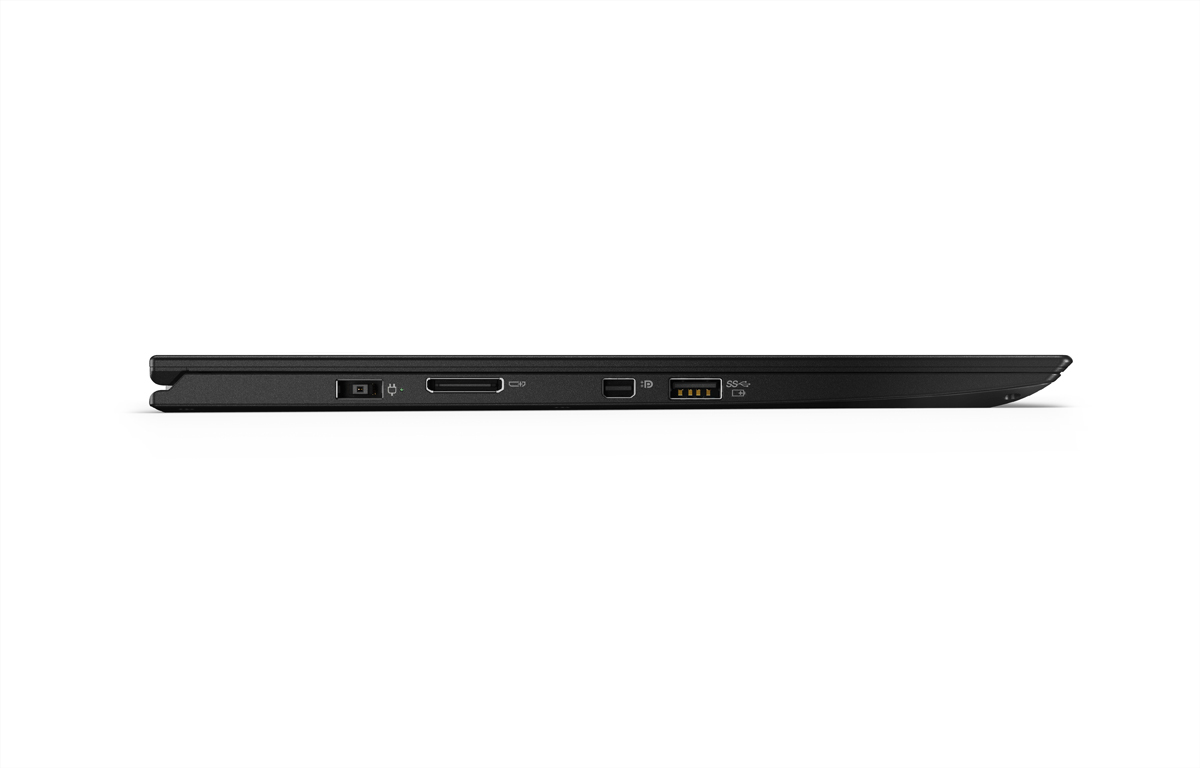

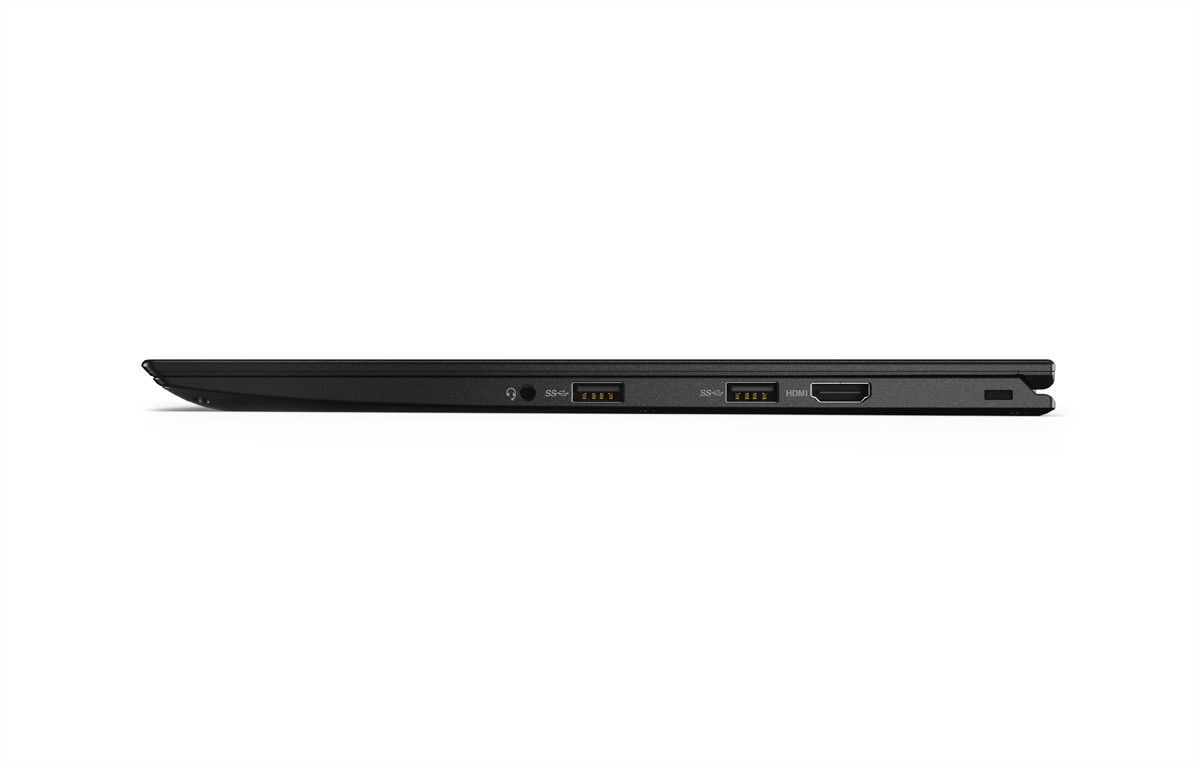

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	1
Mini DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes
Docking connector	Yes
ExpressCard slot	No
SmartCard slot	No

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	No
Electronic compass	No
GPS (satellite)	No
Gyroscope	No
Proximity sensor	No

Keyboard

Specification	Value
Pointing device	Touchpad + Pointing Stick
Keyboard backlit	Yes
Keyboard layout	QWERTZ
Keyboard language	Swiss
Number of pointing stick buttons	1
Number of touchpad buttons	3

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88192
Processor code	SR2F1
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
