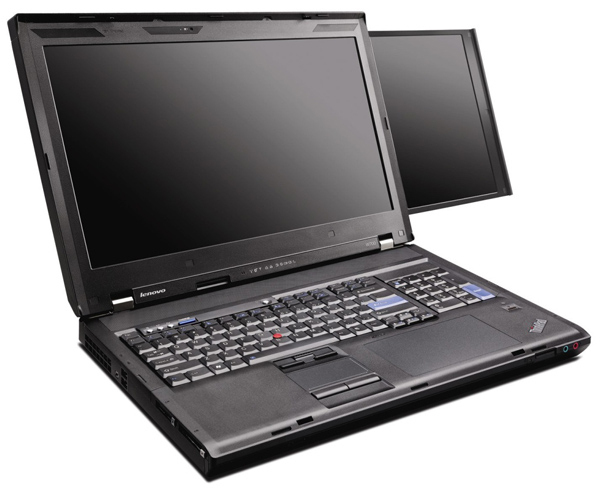

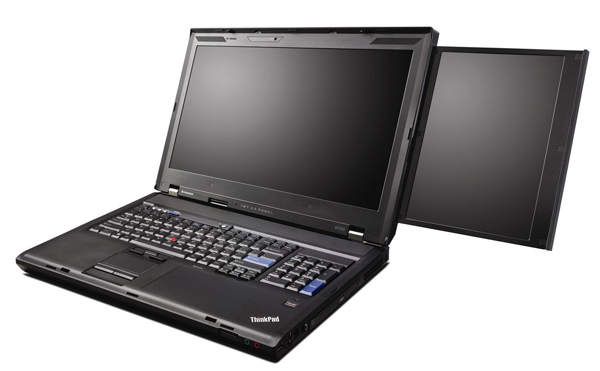

ThinkPad W700ds Intel® Core™ 2 Extreme QX9300
43.2 cm (17") 4 GB DDR3-SDRAM 320 GB Black
Model W700dsPart no. 2753E7UEAN 884343902562
128 specifications Checked today
- Display43.2 cm (17")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Core™ 2 Extreme
- Memory4 GB
- Storage320 GB
- Weight4.96 kg
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Core™ 2 Extreme
- Memory
- 4 GB
- Storage
- 320 GB
- Weight
- 4.96 kg
- Brand
- Lenovo
- Category
- Laptop
- Model
- W700ds
- Part numbers
- 2753E7U, NRPFEFR, NRKMBFR, 2758MMU
- EAN / UPC
- 884343902562, 884343491332, 8843434913322
- Also known as
- Lenovo ThinkPad W700ds Intel® Core™ 2 Extreme QX9300 43.2 cm (17") 4 GB DDR3-SDRAM 320 GB Black
Specifications
128 specifications in 18 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1920 x 1200 pixels |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display brightness | 400 cd/m² |
| External display | Yes |
| Contrast ratio (typical) | 500:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ 2 Extreme |
| Processor model | QX9300 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 2.53 GHz |
| Processor cache | 12 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Processor socket | Socket 478 |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Extreme QX9000 Series for Mobile |
| Processor codename | Penryn |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | E0 |
| Thermal Design Power (TDP) | 45 W |
| Tjunction | 100 °C |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| CPU multiplier (bus/core ratio) | 9.4 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1066 MHz |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Number of HDDs installed | 1 |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Optical drive type | DVD-ROM |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| TV-out | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® PM45 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | ThinkPad UltraNav |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 36727 |
| Processor code | SLB5J |
| Processor package size | 35 x 35 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 9 |
| Battery life (max) | 2 h |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | IBM |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | Supervisor |
| HDD user password | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.96 kg |
| Width | 410 mm |
| Depth | 310 mm |
| Height | 52.2 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| TV tuner integrated | No |
| Intel segment tagging | Professional |
| Supplied AC adapter type | AC |
