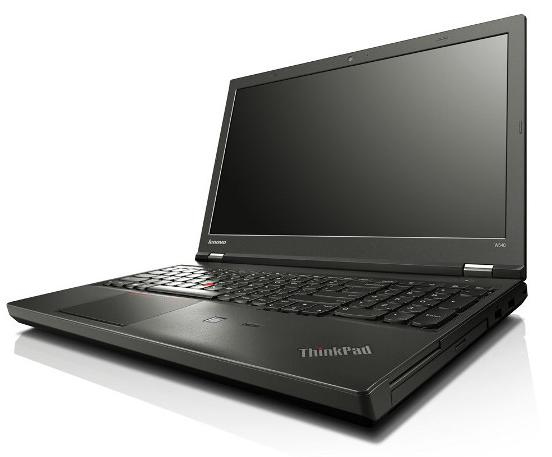

W540 Win7 CH
Model W540 Win7 CHPart no. 20BHA0YEMZ
171 specifications Checked today
- Display39.6 cm (15.6")
- Resolution2880 x 1620 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA® Quadro® K2100M
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 2880 x 1620 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® Quadro® K2100M
- Brand
- Lenovo
- Category
- Laptop
- Model
- W540 Win7 CH
- Part number
- 20BHA0YEMZ
- Also known as
- Lenovo ThinkPad W540 Win7 CH Intel® Core™ i7 i7-4810MQ Mobile workstation 39.6 cm (15.6") 16 GB DDR3L-SDRAM 512 GB SSD NVIDIA® Quadro® K2100M Windows 7 Professi
Specifications
171 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Mobile workstation |
| Product colour | Black |
| Form factor | Clamshell |
| Market positioning | High performance |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 2880 x 1620 pixels |
| Touchscreen | No |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display surface | Matt |
| Display brightness | 220 cd/m² |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 4th gen Intel® Core™ i7 |
| Processor model | i7-4810MQ |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 2.8 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-4800 Mobile series |
| Processor codename | Haswell |
| Bus type | DMI2 |
| FSB Parity | No |
| Stepping | C0 |
| Thermal Design Power (TDP) | 47 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x SO-DIMM |
| Maximum internal memory | 32 GB |
| Maximum internal memory (64-bit) | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | SATA III |
| Optical drive type | DVD Super Multi DL |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® K2100M |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card base frequency | 400 MHz |
| On-board graphics card dynamic frequency (max) | 1300 MHz |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x416 |
| Number of discrete graphics cards installed | 1 |
| Number of discrete graphics cards supported | 1 |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Home Theater v4 |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

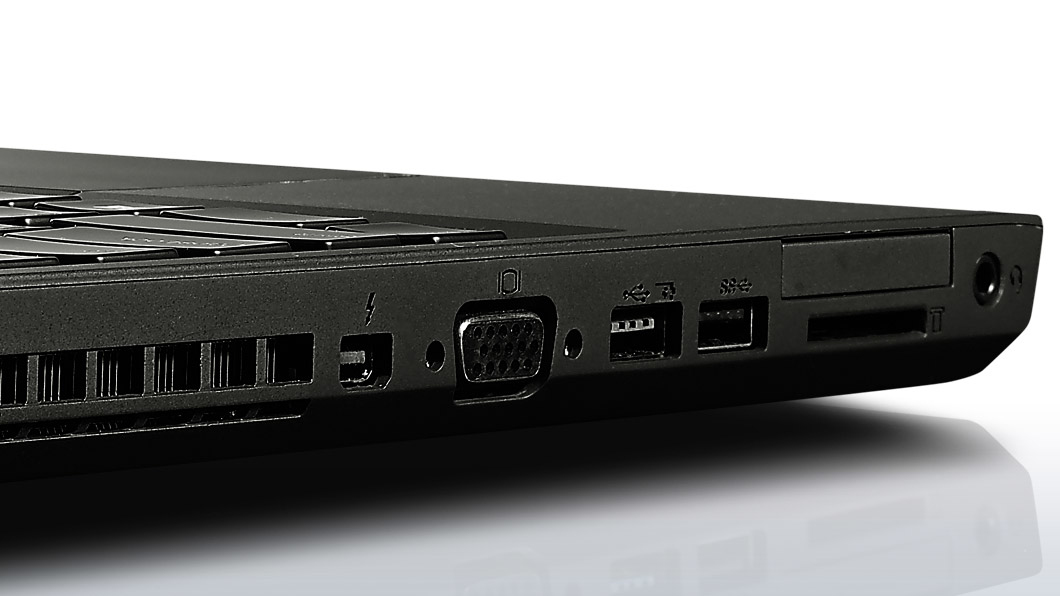

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 1 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® QM87 |

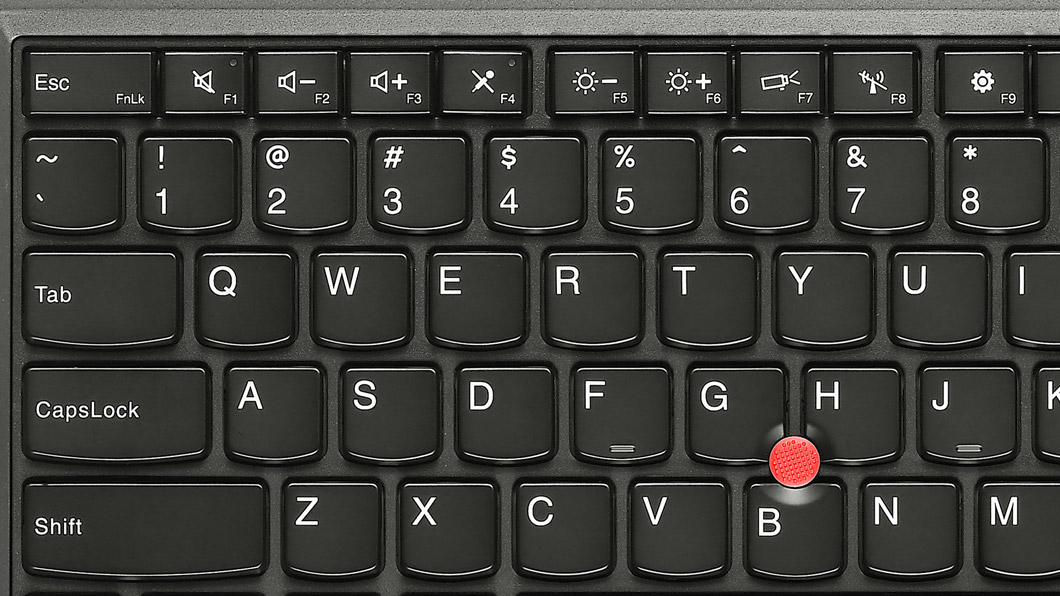

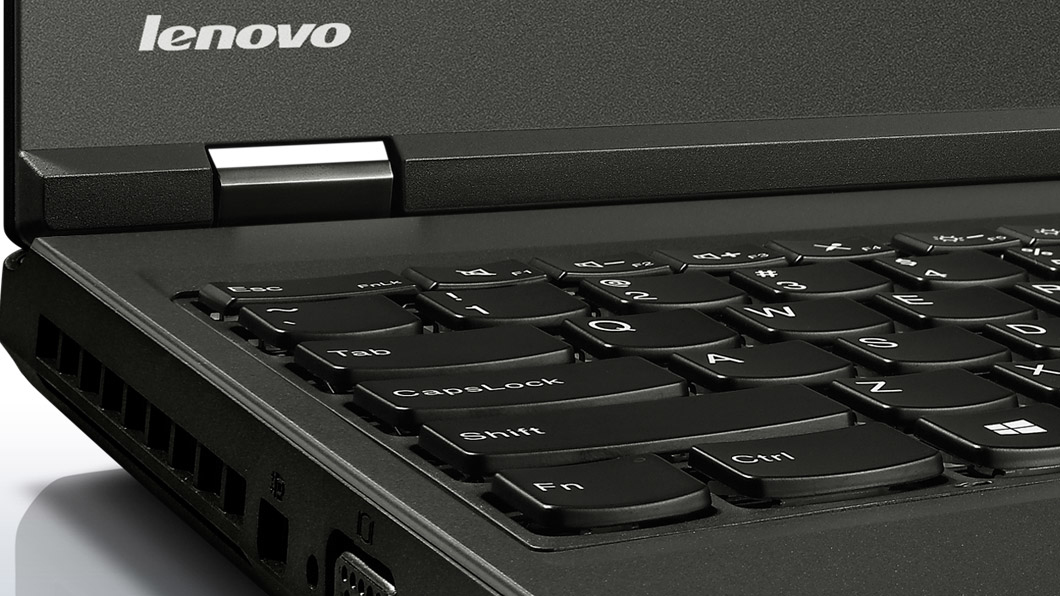

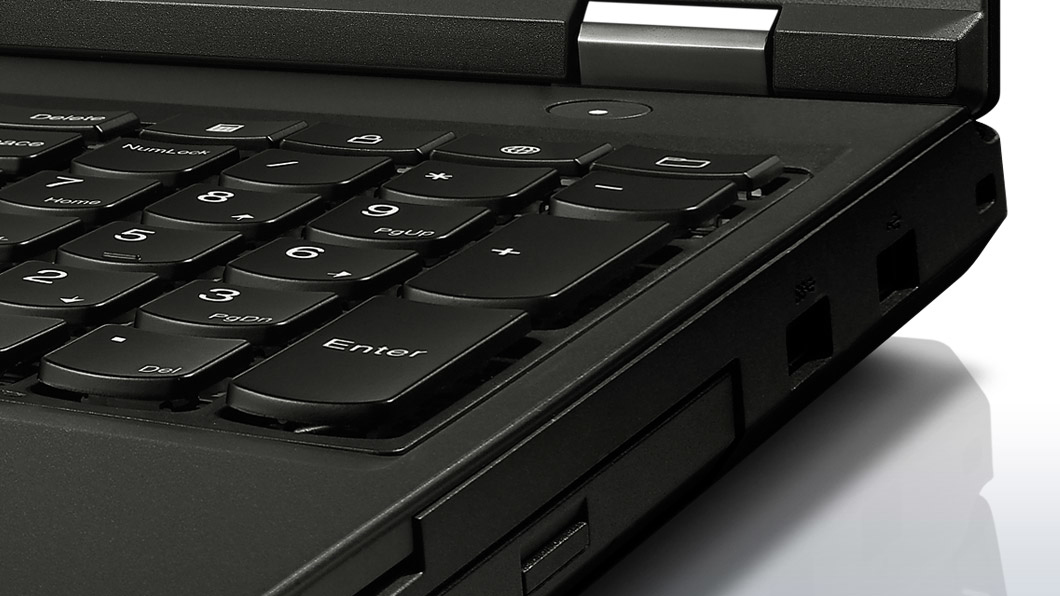

Keyboard
| Specification | Value |
|---|---|
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
| Keyboard layout | QWERTZ |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8.1 Pro |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel QuickPath Interconnect | Yes |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Connect Technology | No |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Active Management Technology (Intel® AMT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Rapid Start Technology | No |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 78937 |
| Processor code | SR15K |
| Processor package size | 37.5 x 37.5 x 4.7 mm |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 9 |
| Battery capacity | 99.9 Wh |
| Battery life (max) | 9 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 170 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 379 mm |
| Depth | 273 mm |
| Height (front) | 2.8 cm |
| Height (rear) | 3.5 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
Other features
| Specification | Value |
|---|---|
| Intel segment tagging | Professional |
