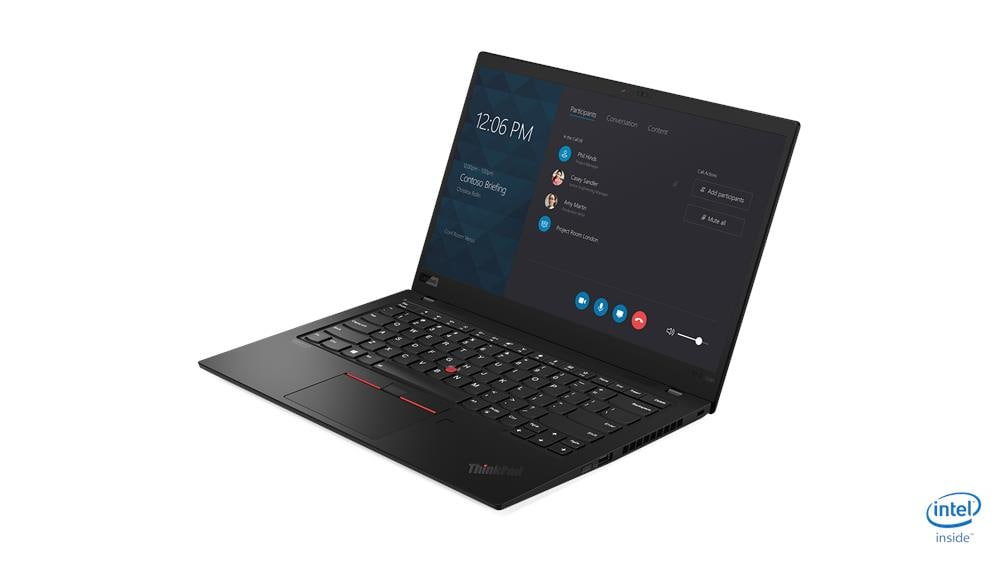

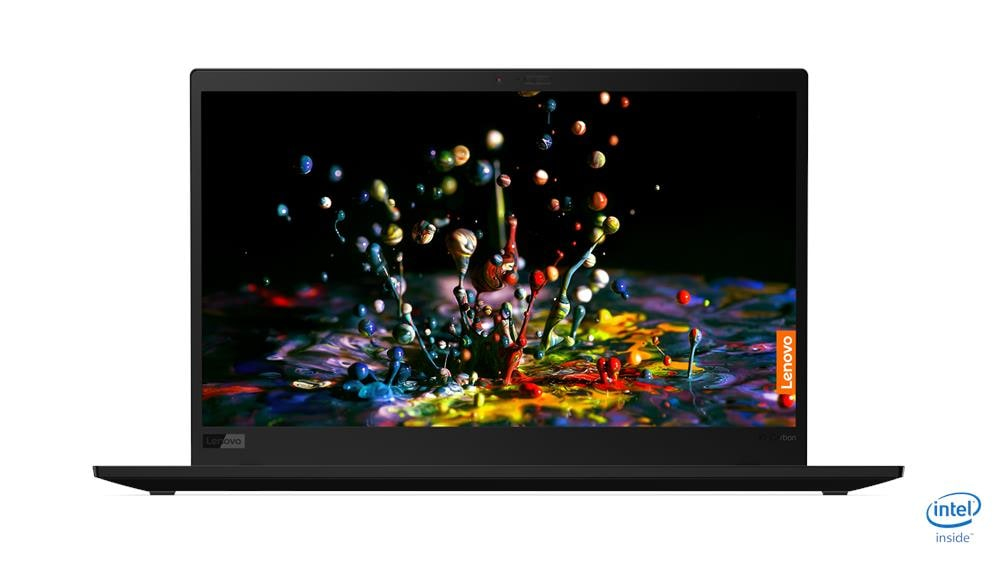

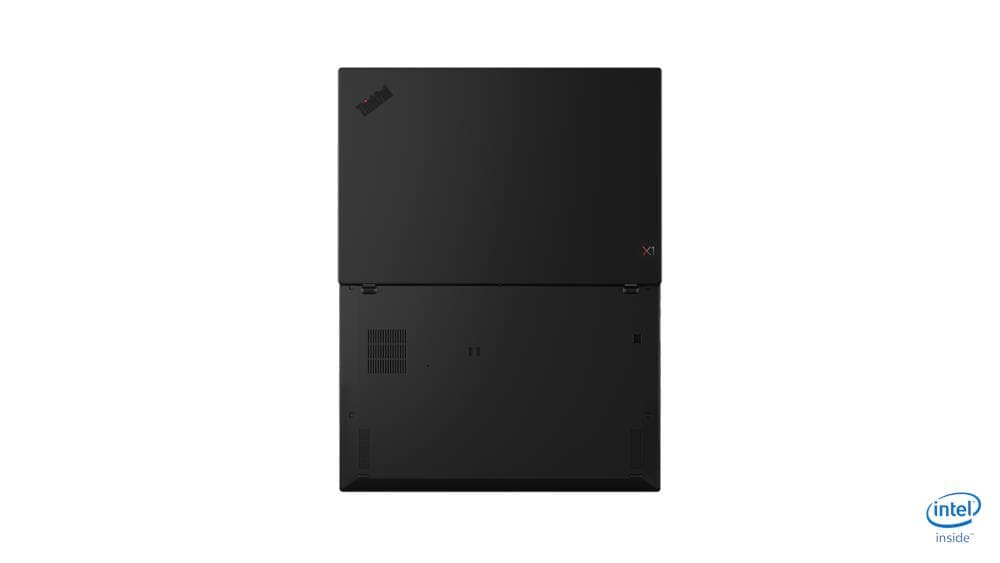

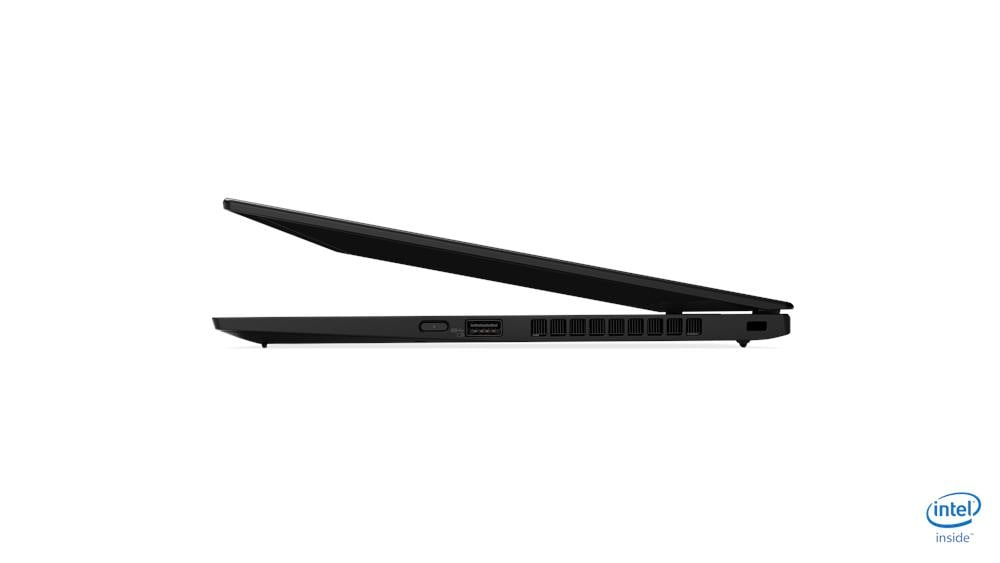

Lenovo ThinkPad X1 Carbon (7th Gen)

ThinkPad X1 Carbon (7th Gen)

Model ThinkPad X1 Carbon (7th Gen)Part no. 20QD0003CAEAN 193386815051

93 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: Lenovo
Category: Laptop
Model: ThinkPad X1 Carbon (7th Gen)
Part numbers: 20QD0003CA, 20QES83H00, 20QES83J00, 20R1S05R00, 20QE0010BR, 20QD0007CA +34 more
EAN / UPC: 193386815051, 194778533850, 194778533867, 194632764215 +56 more
Also known as: Lenovo ThinkPad X1 Carbon (7th Gen) Intel® Core™ i7 i7-8565U Laptop 35.6 cm (14") Full HD 16 GB LPDDR3-SDRAM 1 TB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Black Sp

Specifications

93 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Black, Paint
Form factor	Clamshell

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	400 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor model	i7-8565U
Processor cores	4
Processor threads	8
Processor boost frequency	4.6 GHz
Processor frequency	1.8 GHz

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	2133 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3286
Built-in microphone	Yes
Number of microphones	4

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Bluetooth	Yes
Bluetooth version	5.1
Near Field Communication (NFC)	No
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	1.4b
Thunderbolt 3 ports quantity	2
Combo headphone/mic port	Yes
Docking connector	Yes
USB Sleep-and-Charge	Yes

Performance

Specification	Value
Motherboard chipset	Intel SoC

Keyboard

Specification	Value
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Numeric keypad	No
Keyboard language	Spanish

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	Spanish

Battery

Specification	Value
Battery capacity	51 Wh

Power

Specification	Value
AC adapter power	65 W
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Certificates

Specification	Value
Certification	ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

Specification	Value
Weight	1.09 kg
Width	323 mm
Depth	217 mm
Height	14.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
