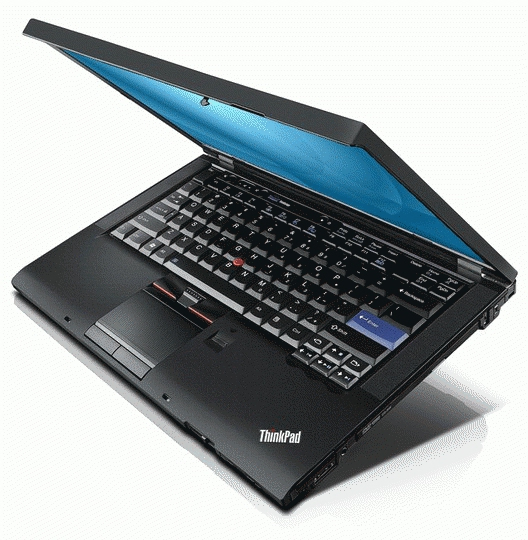

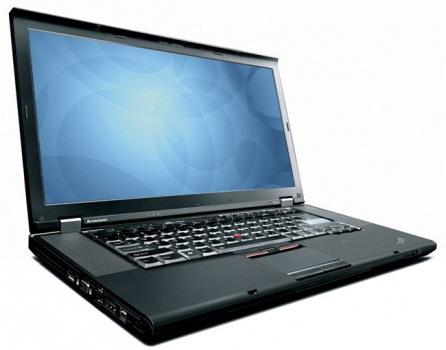

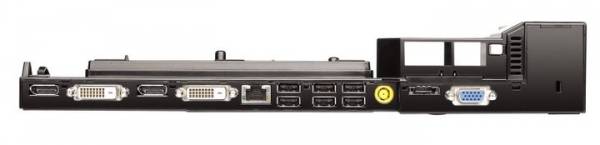

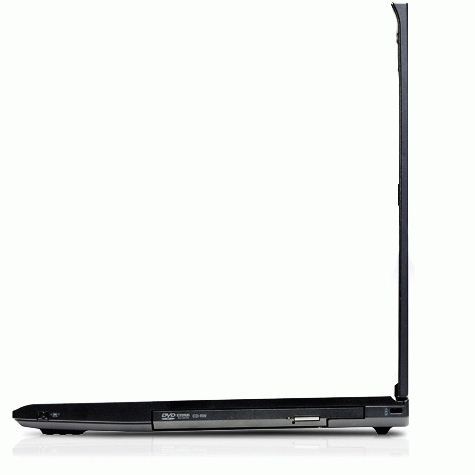

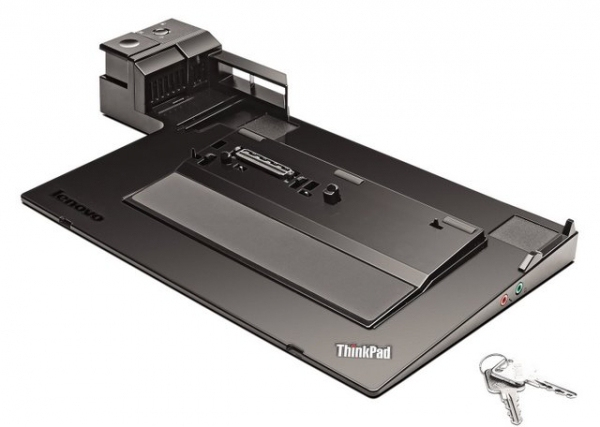

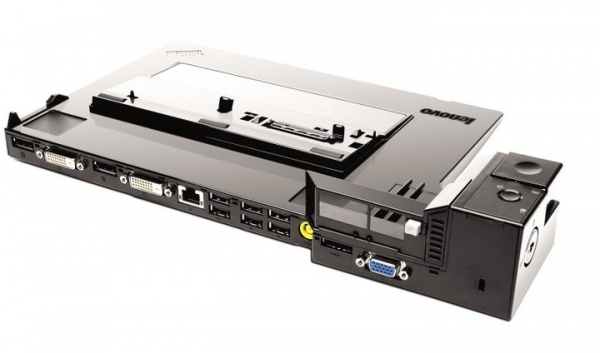

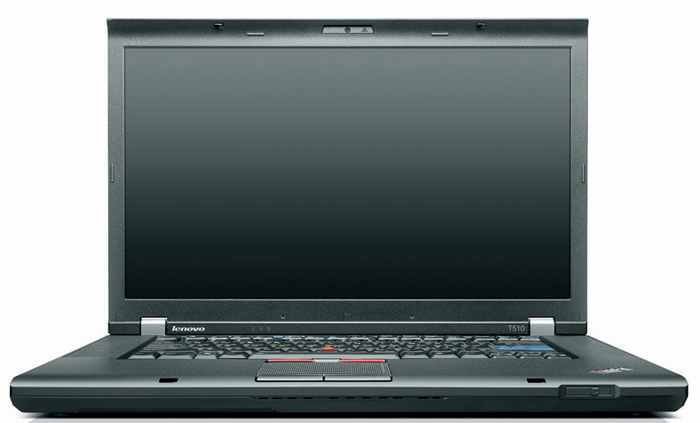

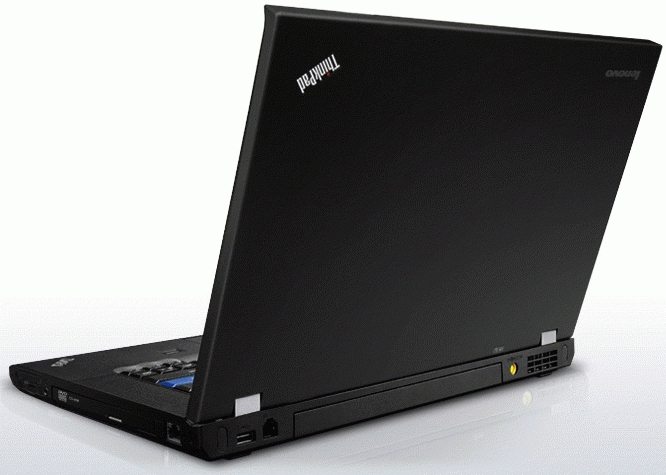

T510, Mini Dock+ 3

Model T510, Mini Dock+ 3Part no. NTH3RMD+45N6693

118 specifications Checked today

Overview

Brand: Lenovo
Category: Laptop
Model: T510, Mini Dock+ 3
Part numbers: NTH3RMD+45N6693, NTH3RMD+45N6694
Also known as: Lenovo ThinkPad T510, Mini Dock+ 3 Intel® Core™ i5 i5-540M 39.6 cm (15.6") 2 GB DDR3-SDRAM 250 GB Intel HD Windows 7 Professional Black

118 specifications in 17 groups

Specification	Value
Product colour	Black

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-540M
Processor cores	2
Processor threads	4
Processor boost frequency	3.07 GHz
Processor frequency	2.53 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 956
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-500 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Stepping	C2
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	19
ECC supported by processor	No

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	Intel HD
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz

Specification	Value
Number of built-in speakers	2

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-out	No

Specification	Value
Pointing device	ThinkPad UltraNav

Specification	Value
Operating system installed	Windows 7 Professional

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43544
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
