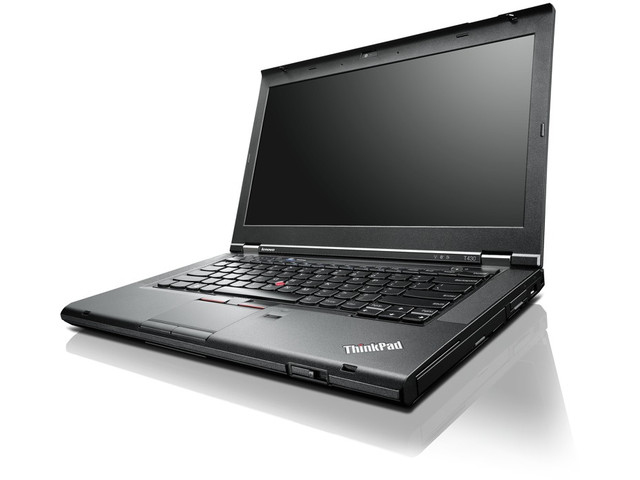

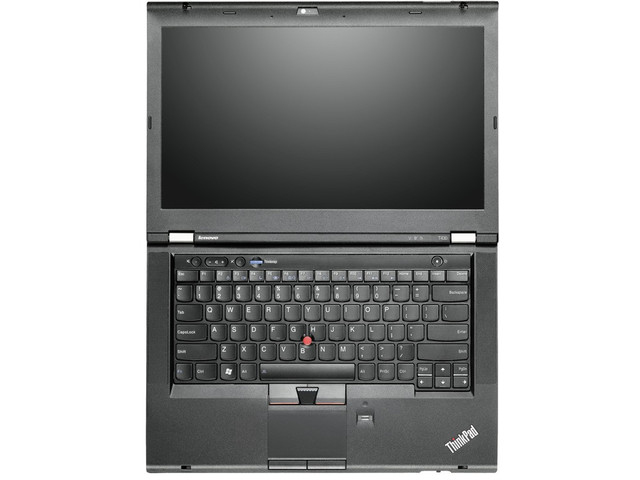

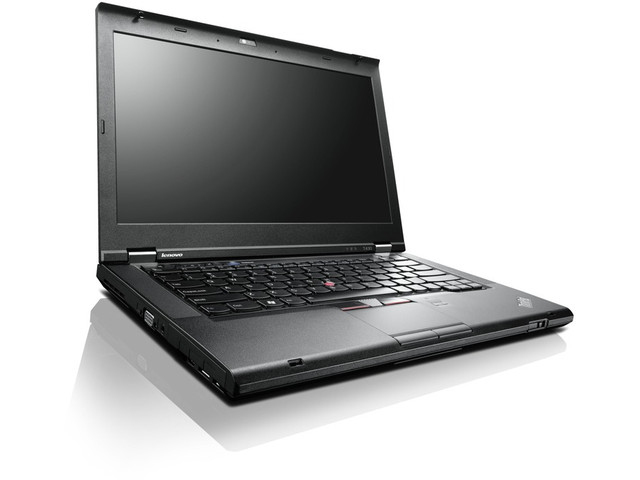

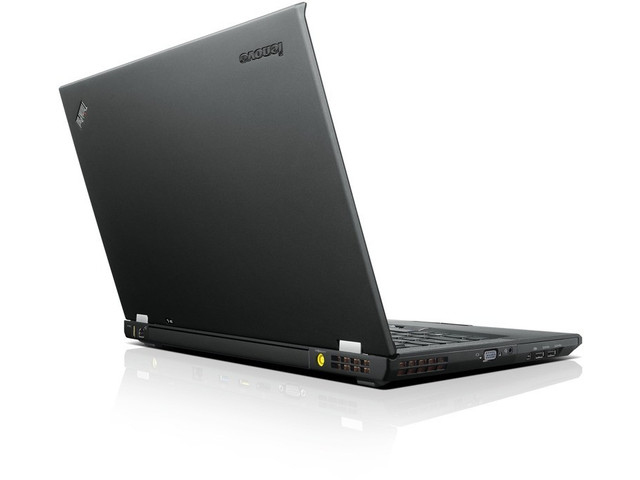

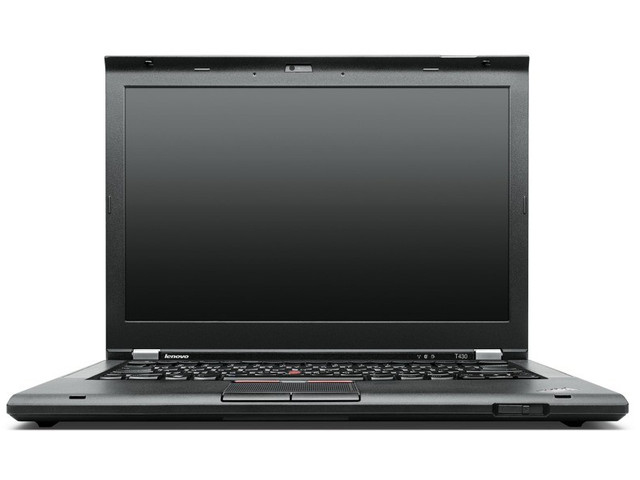

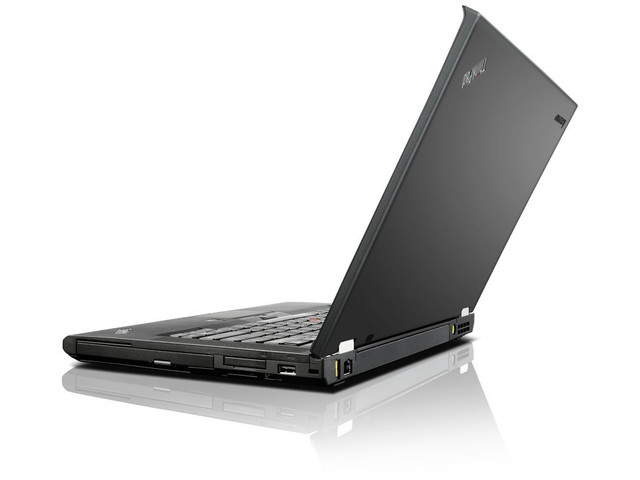

Lenovo T430 + 0A65685
Lenovo

T430 + 0A65685

Model T430 + 0A65685Part no. N1XKAMD+0A65685-BNDL

148 specifications Checked today
  • Display35.6 cm (14")
  • Resolution1600 x 900 pixels
  • ProcessorIntel® Core™ i5
  • Memory4 GB
  • Storage500 GB
  • TypeClamshell
See all specifications

Overview

Display
35.6 cm (14")
Resolution
1600 x 900 pixels
Processor
Intel® Core™ i5
Memory
4 GB
Storage
500 GB
Type
Clamshell
Brand
Lenovo
Category
Laptop
Model
T430 + 0A65685
Part numbers
N1XKAMD+0A65685-BNDL, N1T4SMD+0A65685, N1T4TMD+0A65685, N1XH2MD+0A65685, N1T4SMD+0A65685-BNDL, N1T4TMD+0A65685-BNDL +3 more
Also known as
Lenovo ThinkPad T430 + 0A65685 Intel® Core™ i5 i5-3210M 35.6 cm (14") HD+ 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional QWERTY

Specifications

148 specifications in 21 groups

Design

Form factorClamshell

Display

Display diagonal35.6 cm (14")
Display resolution1600 x 900 pixels
HD typeHD+
LED backlightYes
Native aspect ratio16:9
Display brightness250 cd/m²
Contrast ratio (typical)300:1

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation3rd gen Intel® Core™ i5
Processor modeli5-3210M
Processor cores2
Processor threads4
Processor boost frequency3.1 GHz
Processor frequency2.5 GHz
System bus rate5 GT/s
Processor cache3 MB
Processor cache typeSmart Cache
Processor socketBGA 1023
Processor lithography22 nm
Processor operating modes64-bit
Processor seriesIntel Core i5-3200 Mobile series
Processor codenameIvy Bridge
Bus typeDMI
FSB ParityNo
SteppingL1
Thermal Design Power (TDP)35 W
Tjunction105 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
CPU multiplier (bus/core ratio)25
ECC supported by processorNo

Memory

Internal memory4 GB
Internal memory typeDDR3-SDRAM
Memory clock speed1600 MHz
Memory layout (slots x size)1 x 4 GB
Memory slots2x SO-DIMM
Maximum internal memory8 GB

Storage

Total storage capacity500 GB
Storage mediaHDD
Number of HDDs installed1
HDD capacity500 GB
HDD interfaceSATA
HDD speed7200 RPM
Optical drive typeDVD Super Multi DL
Card reader integratedYes
Compatible memory cardsMMC, SD, SDHC, SDXC

Graphics

On-board graphics cardYes
Graphics card familyIntel, NVIDIA
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 4000
On-board graphics card base frequency650 MHz
On-board graphics card dynamic frequency (max)1100 MHz
On-board graphics card ID0x166
Maximum graphics card memory1.024 GB

Audio

Audio systemHigh Definition Audio
Number of built-in speakers2
Speaker power1 W
Built-in microphoneYes

Network

Mobile network connectionYes
Mobile network generation3G
Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.0
Integrated 4G WiMAXYes

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1
DVI portNo
VGA (D-Sub) ports quantity1
S/PDIF out portNo
Combo headphone/mic portYes
Microphone inNo
ExpressCard slotNo
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotNo

Performance

Motherboard chipsetIntel® QM77 Express

Keyboard

Pointing deviceThinkPad UltraNav
Numeric keypadNo
Keyboard layoutQWERTY

Software

Operating system installedWindows 7 Professional
Operating system architecture64-bit

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure Key Technology version1.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Processor ARK ID65708
Processor codeSR0N0
Processor package size31.0 x 24.0 (BGA1023)
Supported instruction setsAVX
Thermal Monitoring TechnologiesYes
Conflict-Free processorYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells6
Battery life (max)9.4 h

Power

AC adapter power90 W
DC-in jackYes

Security

Cable lock slotYes
Fingerprint readerYes
Password protection typeHDD, Power on, Supervisor

Certificates

Compliance certificatesRoHS

Sustainability

Sustainability certificatesEPEAT Gold, ENERGY STAR

Weight & dimensions

Weight2.33 kg
Width340.5 mm
Depth232 mm
Height (front)2.98 cm
Height (rear)2.99 cm

Packaging content

AC adapter includedYes

Other features

Infrared data portNo
Intel segment taggingHome office, Small Business
