T420+Mini Dock Series 3

Model T420+Mini Dock Series 3Part no. NW182MD+45N6678

140 specifications Checked today

Overview

Brand: Lenovo
Category: Laptop
Model: T420+Mini Dock Series 3
Part numbers: NW182MD+45N6678, NW182MD+45N6679, NW183MD+45N6678, NW183MD+45N6679
Also known as: Lenovo ThinkPad T420+Mini Dock Series 3 Intel® Core™ i5 i5-2410M 35.6 cm (14") HD+ 4 GB DDR3-SDRAM 500 GB N12P-NS1 Windows 7 Professional Black

140 specifications in 19 groups

Specification	Value
Product colour	Black

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2410M
Processor cores	2
Processor threads	4
Processor boost frequency	2.9 GHz
Processor frequency	2.3 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-2400 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	J1
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	23
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	N12P-NS1
Graphics card family	NVIDIA
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card ID	0x116

Specification	Value
Number of built-in speakers	2

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Specification	Value
Motherboard chipset	Intel® QM67 Express

Specification	Value

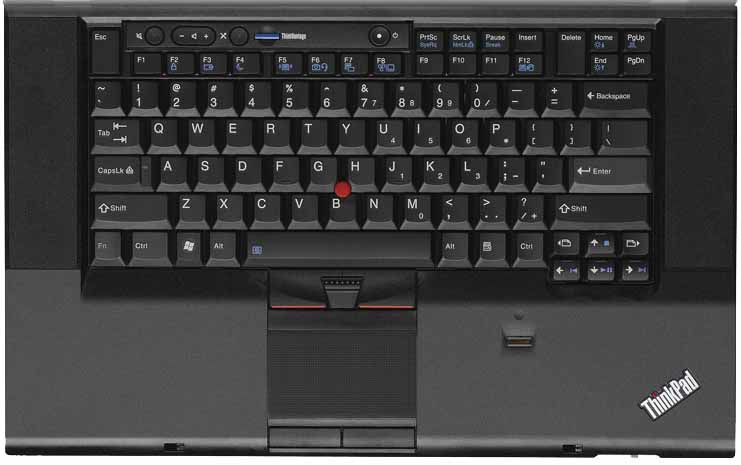

Pointing device	ThinkPad UltraNav
Full-size keyboard	No

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	52224
Processor package size	37.5x37.5 (rPGA988B); 31 x 24 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Number of battery cells	6

Specification	Value
DC-in jack	Yes

Specification	Value
AC adapter included	Yes

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power requirements	100-240V
Intel segment tagging	Home office, Small Business
Supplied AC adapter type	AC
