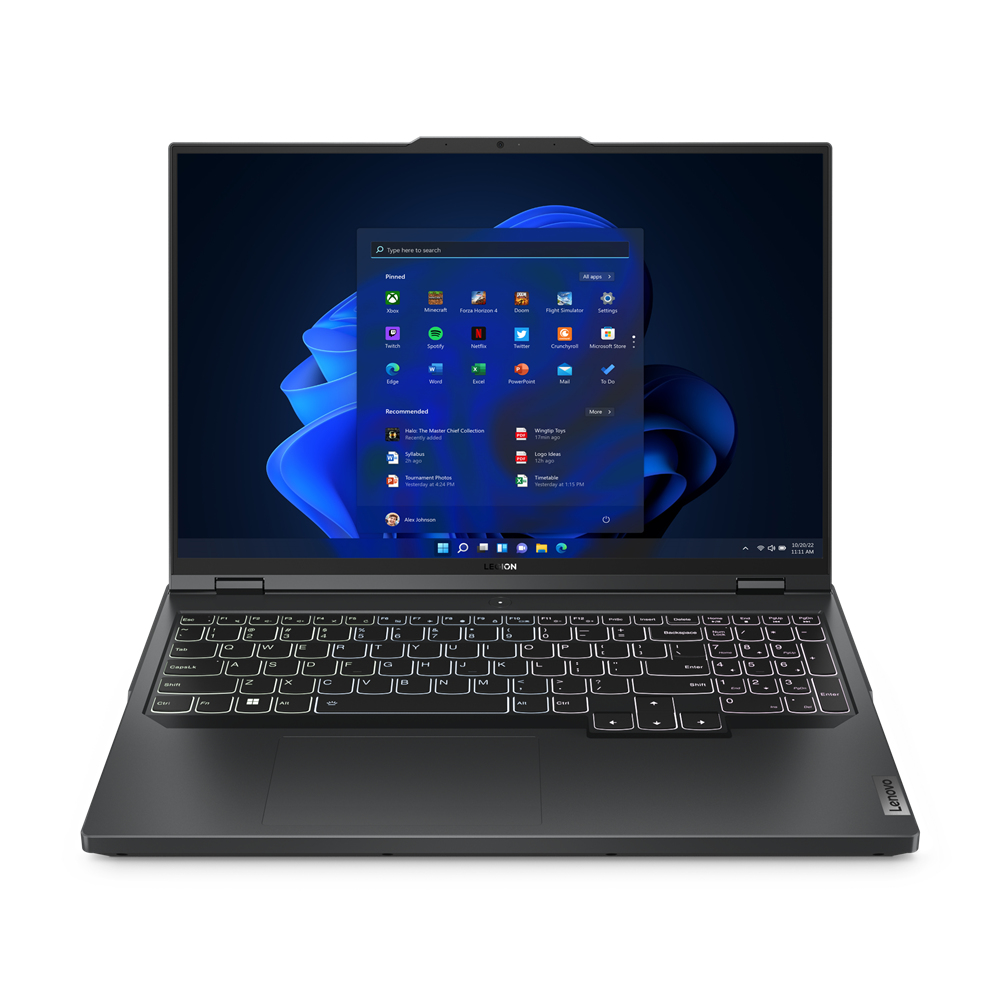

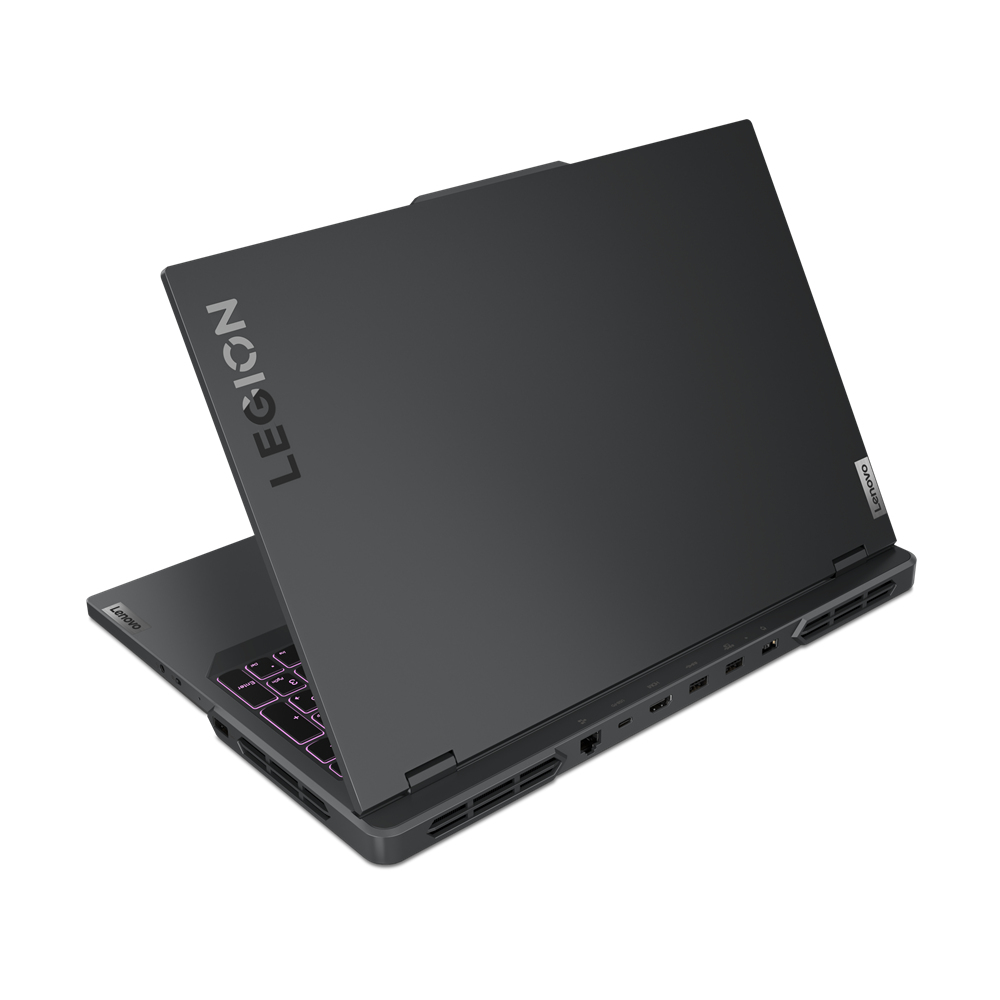

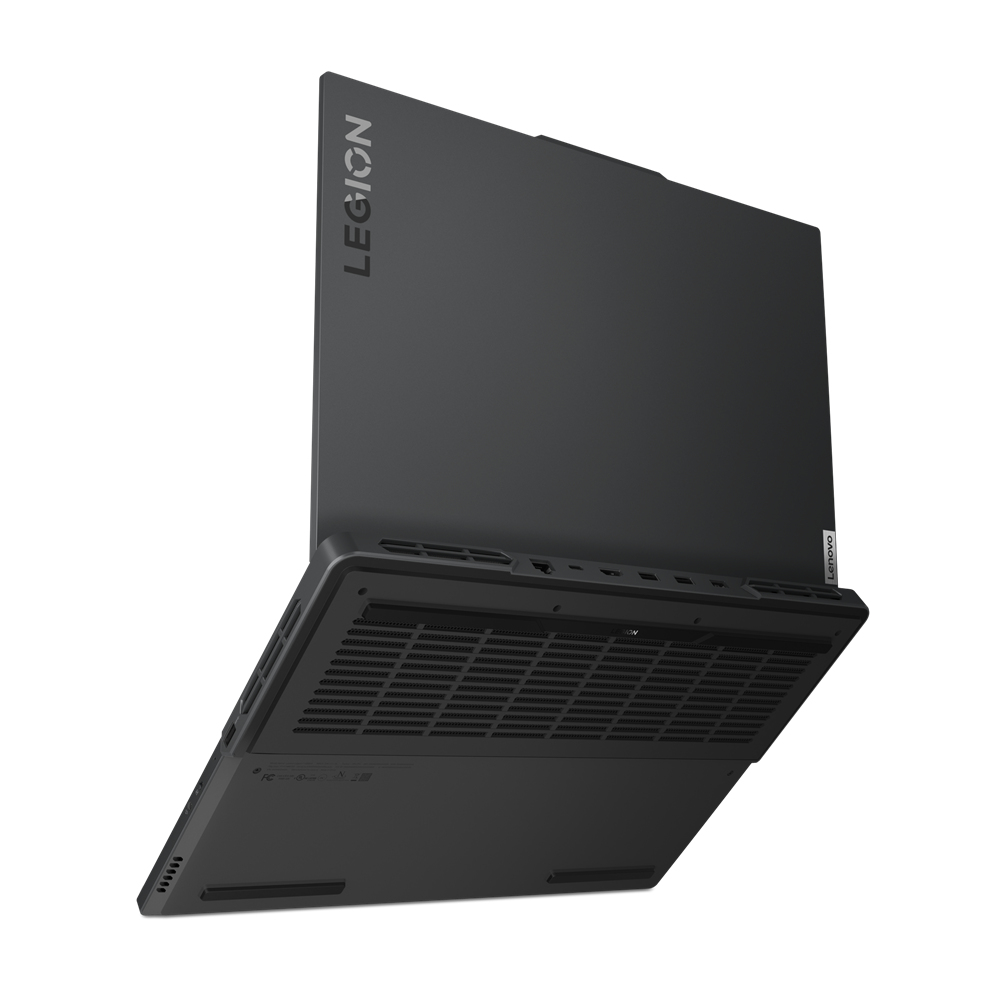

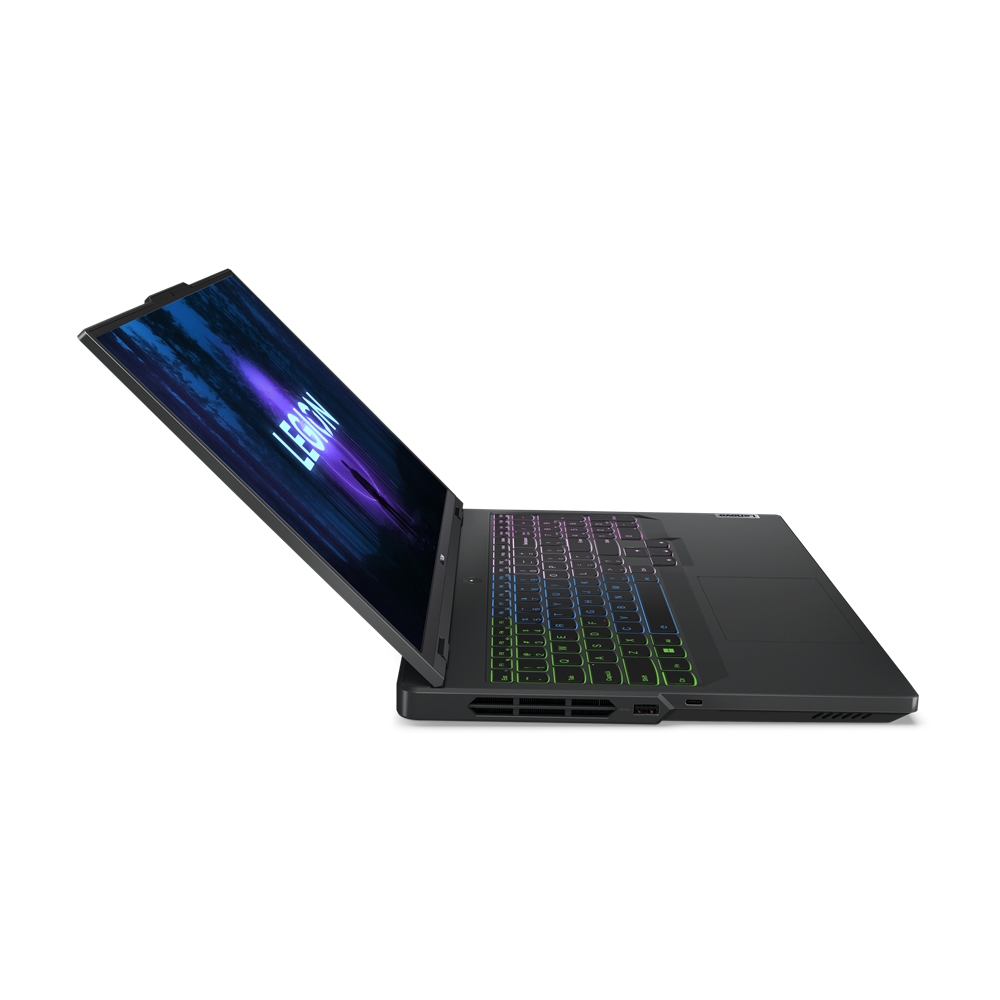

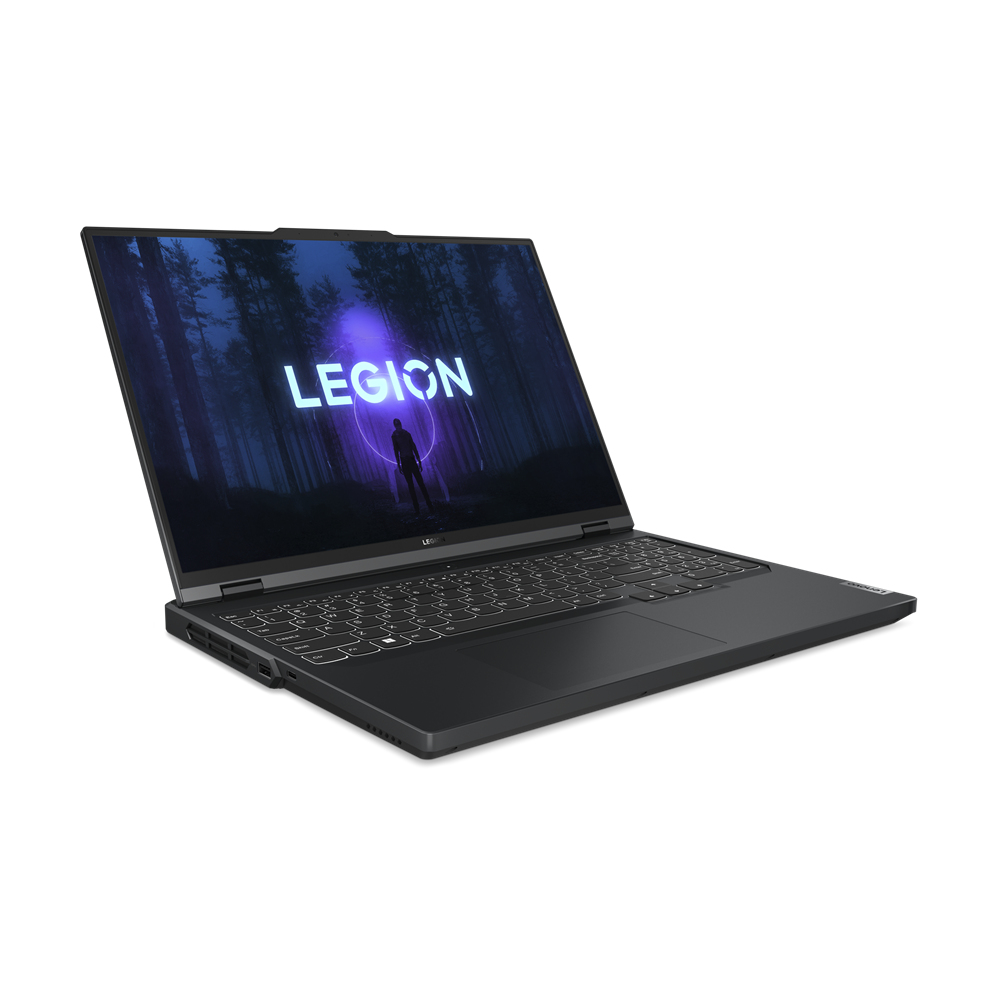

Legion Pro 5 i9 32GB 1TB SSD W11H
Model Legion Pro 5 i9 32GB 1TB SSD W11HPart no. 82WK00J5TXEAN 197528251288
67 specifications Checked yesterday
- Display40.6 cm (16")
- Resolution2560 x 1600 pixels
- ProcessorIntel® Core™ i9
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 4070
Overview
- Display
- 40.6 cm (16")
- Resolution
- 2560 x 1600 pixels
- Processor
- Intel® Core™ i9
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 4070
- Brand
- Lenovo
- Category
- Laptop
- Model
- Legion Pro 5 i9 32GB 1TB SSD W11H
- Part number
- 82WK00J5TX
- EAN / UPC
- 197528251288
- Also known as
- Lenovo Legion Pro 5 i9 32GB 1TB SSD W11H Intel® Core™ i9 i9-13900HX Laptop 40.6 cm (16") WQXGA DDR5-SDRAM NVIDIA GeForce RTX 4070 Wi-Fi 6E (802.11ax) Windows 11
Specifications
67 specifications in 17 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Grey |
| Colour name | Onyx Grey |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 40.6 cm (16") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Maximum refresh rate | 240 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 13th gen Intel® Core™ i9 |
| Processor model | i9-13900HX |
| Processor frequency | 2.2 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 3.9 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Bus type | DMI4 |
| Configurable TDP-down | 45 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 12 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4070 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3306 |
| Speaker power | 2 W |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | Full HD |
| Rear camera | No |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel HM770 |
Keyboard
| Specification | Value |
|---|---|
| Numeric keypad | Yes |
| Touch Bar | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 |
| Bundled software | Office Trial |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 80 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.55 kg |
| Width | 363.4 mm |
| Depth | 260.4 mm |
| Height | 22.4 mm |
