L512 + 45N6678 + 73Y2616
Model L512 + 45N6678 + 73Y2616Part no. NVW4NGE+4N6678+73Y2616
129 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i5
- Memory2 GB
- Storage320 GB
- OSWindows 7 Professional
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i5
- Memory
- 2 GB
- Storage
- 320 GB
- OS
- Windows 7 Professional
- Brand
- Lenovo
- Category
- Laptop
- Model
- L512 + 45N6678 + 73Y2616
- Part number
- NVW4NGE+4N6678+73Y2616
- Also known as
- Lenovo ThinkPad L512 + 45N6678 + 73Y2616 Intel® Core™ i5 i5-460M 39.6 cm (15.6") 2 GB DDR3-SDRAM 320 GB Windows 7 Professional
Specifications
129 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 220 cd/m² |
| Contrast ratio (typical) | 500:1 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-460M |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.8 GHz |
| Processor frequency | 2.53 GHz |
| System bus rate | 2.5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1288 |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-400 Series |
| Processor codename | Arrandale |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | K0 |
| Thermal Design Power (TDP) | 35 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16 |
| PCI Express slots version | 2.0 |
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| CPU multiplier (bus/core ratio) | 19 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Optical drive type | DVD-RW |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 500 MHz |
| On-board graphics card dynamic frequency (max) | 766 MHz |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| eSATA ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | Yes |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | Yes |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® QM57 Express |
Keyboard
| Specification | Value |
|---|---|

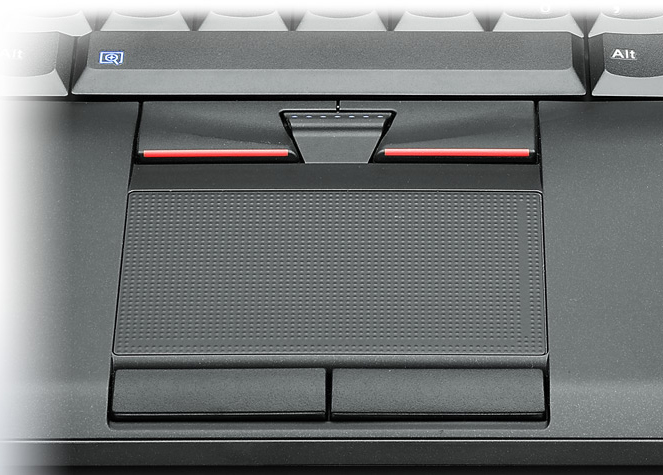

| Pointing device | ThinkPad UltraNav |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 50179 |
| Processor code | SLC22 |
| Processor package size | rPGA 37.5x 37.5, BGA 34x28 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 6 |
| Battery life (max) | 4.7 h |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | IBM |

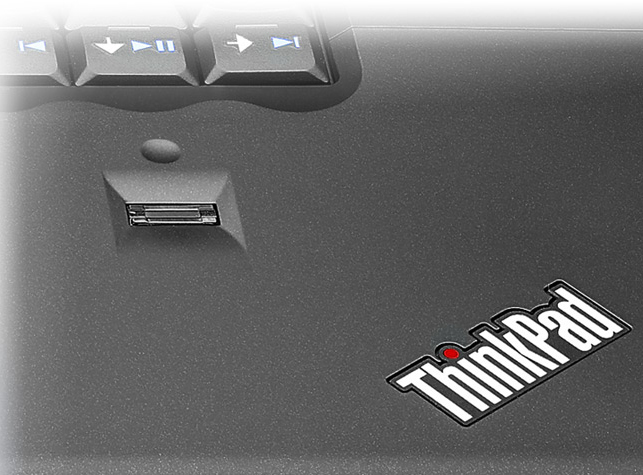

| Fingerprint reader | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.56 kg |
| Width | 380 mm |
| Depth | 247 mm |
| Height (front) | 3.2 cm |
| Height (rear) | 3.6 cm |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Intel segment tagging | Home office, Small Business |
| Supplied AC adapter type | AC |
