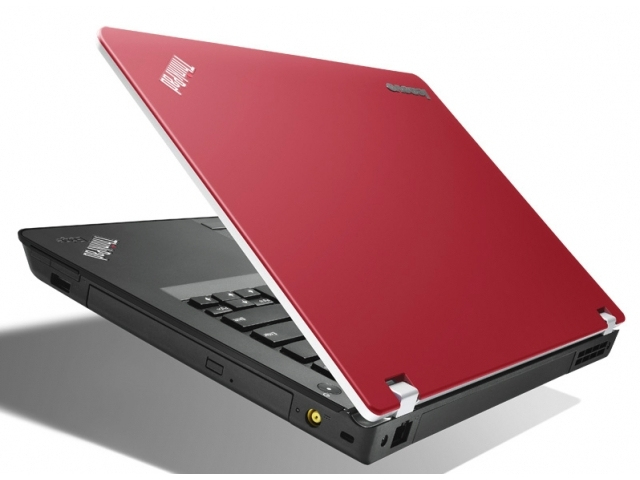

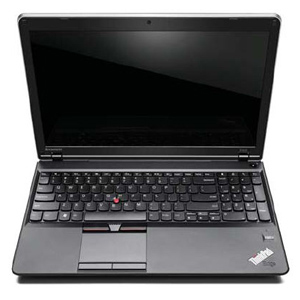

Edge E520

Model Edge E520Part no. NZ3B8MBEAN 886843271131

157 specifications Checked today

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage500 GB
Battery2200 mAh

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 500 GB
Battery: 2200 mAh

Brand: Lenovo
Category: Laptop
Model: Edge E520
Part numbers: NZ3B8MB, NZ3KCSP, NZ3JYMC, NZ3H8PB, NZ3K7GE, NZ3K7MB +18 more
EAN / UPC: 886843271131, 645743993167, 645743943896, 886605649314 +8 more
Also known as: Lenovo ThinkPad Edge E520 Intel® Pentium® B940 39.6 cm (15.6") 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Red Alphanumeric

Specifications

157 specifications in 23 groups

Design

Specification	Value
Product colour	Red
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	B940
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	PGA988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium B900 Series for Mobile
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Thermal Design Power (TDP)	35 W
Tjunction	85 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	20
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
HDD size	2.5"
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Audio

Specification	Value
Audio system	HD
Built-in speaker(s)	Yes
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Swivel webcam	No

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No
WWAN	Not installed
Data network	Not supported
Cabling technology	10/100/1000Base-T(X)
4G WiMAX	No
Integrated 4G WiMAX	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel QM65

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Full-size keyboard	Yes
Keyboard layout	Alphanumeric

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	55626
Processor package size	37.5x37.5 (rPGA988B)
Supported instruction sets	SSE4.x
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	2200 mAh
Battery life (max)	6 h

Power

Specification	Value
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.35 kg
Width	375 mm
Depth	245 mm
Height (front)	2.8 cm
Height (rear)	3.3 cm
Width (imperial)	37.5 cm (14.8")
Depth (imperial)	24.5 cm (9.64")
Height (front) (imperial)	2.79 cm (1.1")
Height (rear) (imperial)	3.28 cm (1.29")

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Quick start guide	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power supply type	AC/DC
Wake-on-LAN ready	Yes
Internal modem	No
Intel segment tagging	Home office, Small Business
Supplied AC adapter type	AC
