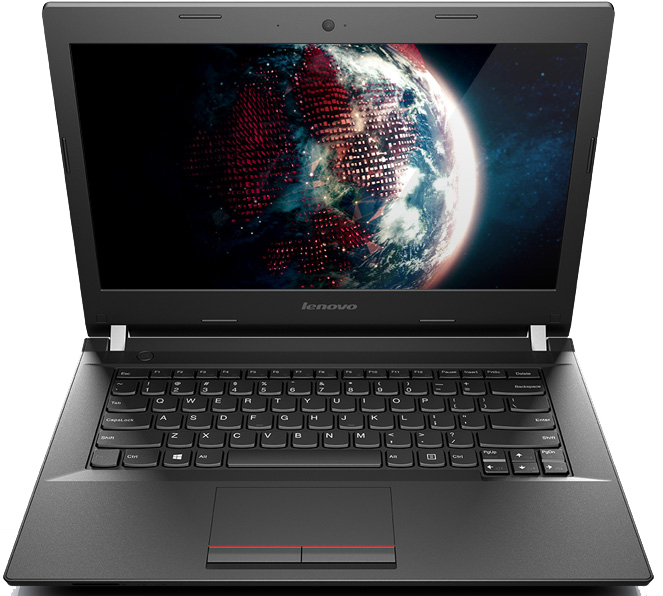

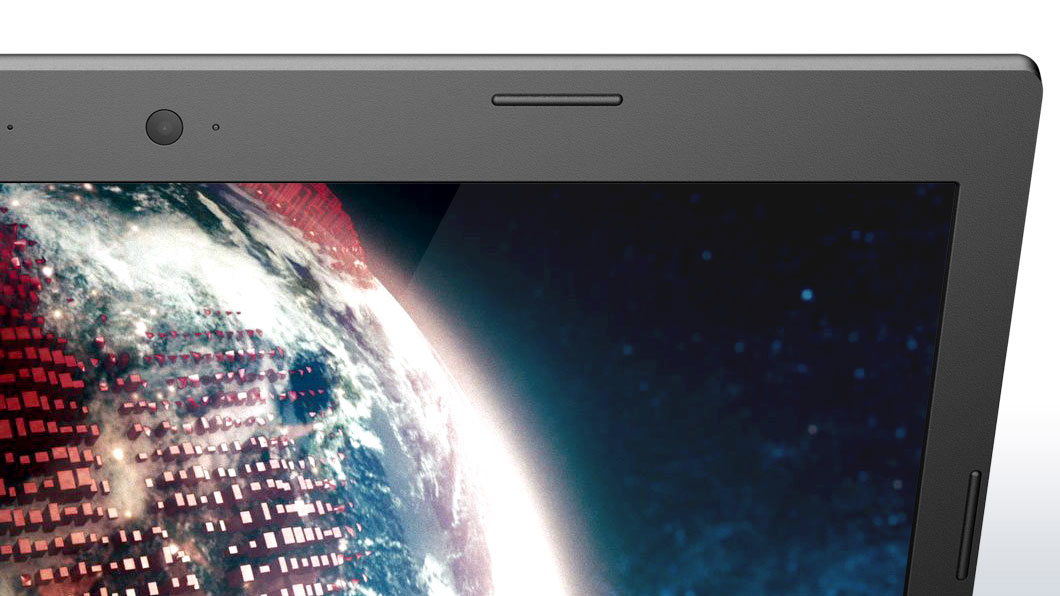

ThinkPad Edge E40-70 Intel® Core™ i5 i5-4200U Laptop

35.6 cm (14") 4 GB DDR3L-SDRAM 500 GB HDD Windows 8.1 Pro Black

Model E40-70Part no. 80EQ000JLMEAN 888772167370

153 specifications Checked today

Display35.6 cm (14")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
TypeLaptop

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Type: Laptop

Brand: Lenovo
Category: Laptop
Model: E40-70
Part numbers: 80EQ000JLM, 80EQ000HLM, 80EQ006YLM, 80EQ006LLM, 80EQ0087CL, 80EQ006MLM
EAN / UPC: 888772167370
Also known as: Lenovo ThinkPad Edge E40-70 Intel® Core™ i5 i5-4200U Laptop 35.6 cm (14") 4 GB DDR3L-SDRAM 500 GB HDD Windows 8.1 Pro Black

Specifications

153 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Business

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.6 GHz
Processor frequency	1.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4200 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12
On-board graphics card ID	0xA16

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

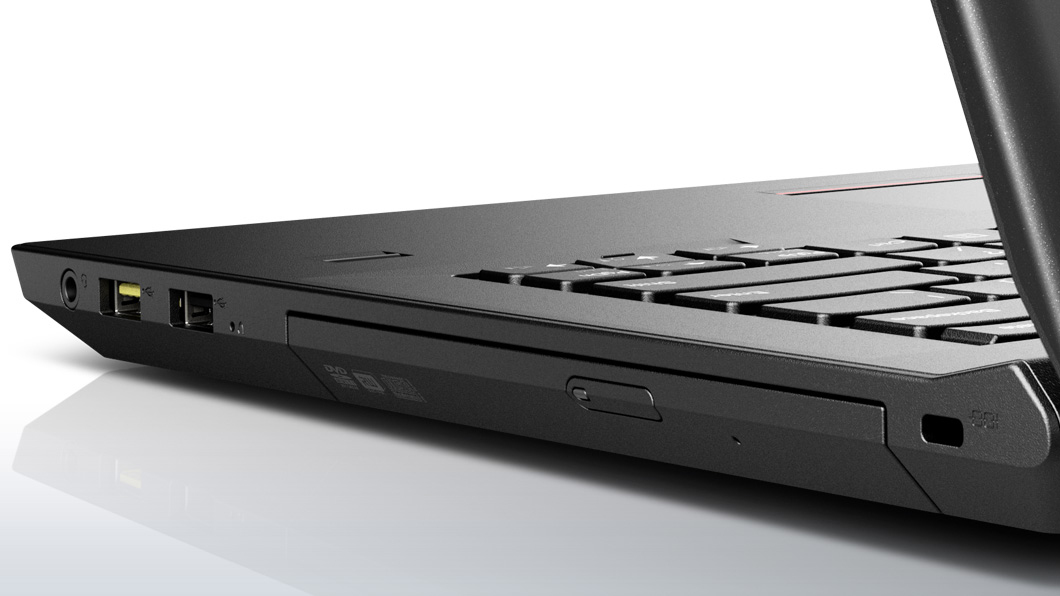

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Total number of SATA connectors	4
Number of SATA III connectors	4

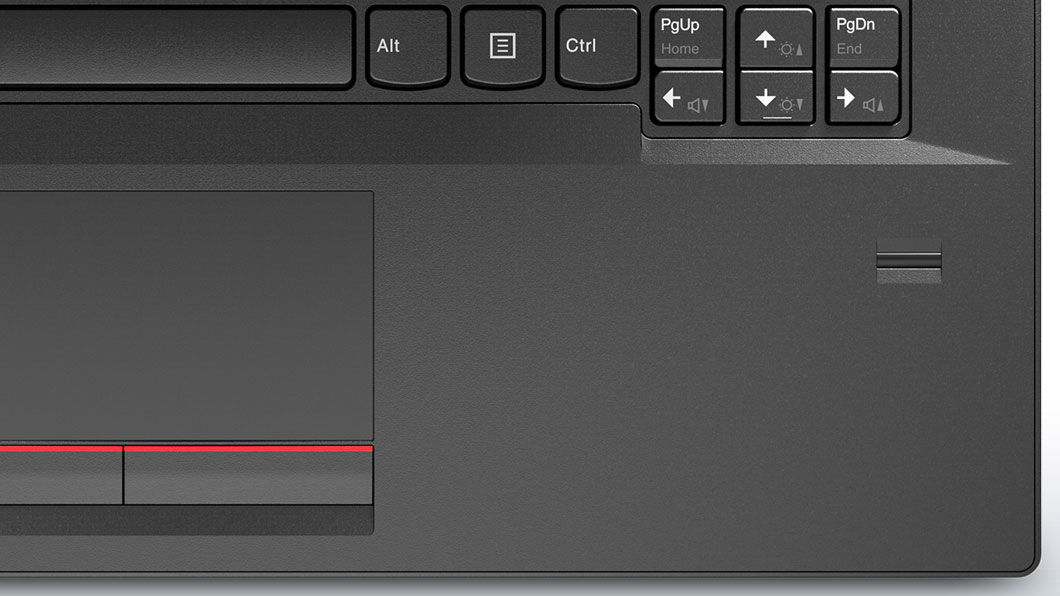

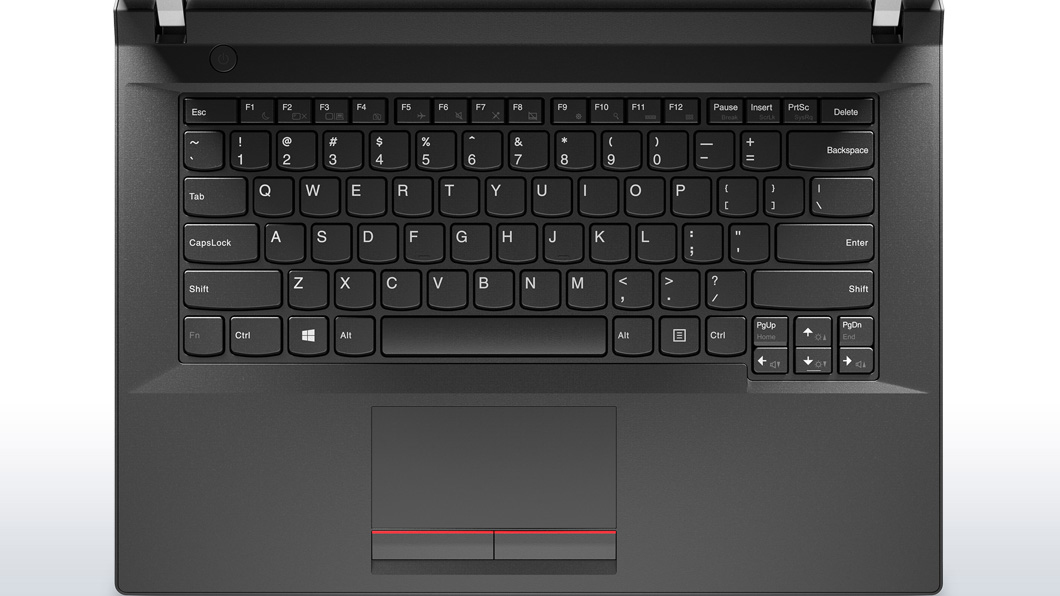

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1 Pro

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Processor ARK ID	75459
Processor code	SR170
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
