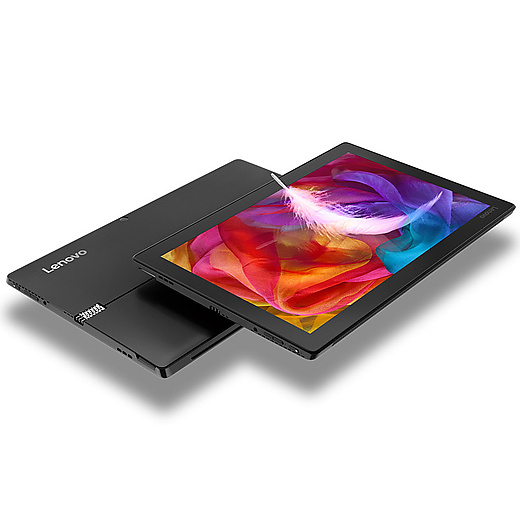

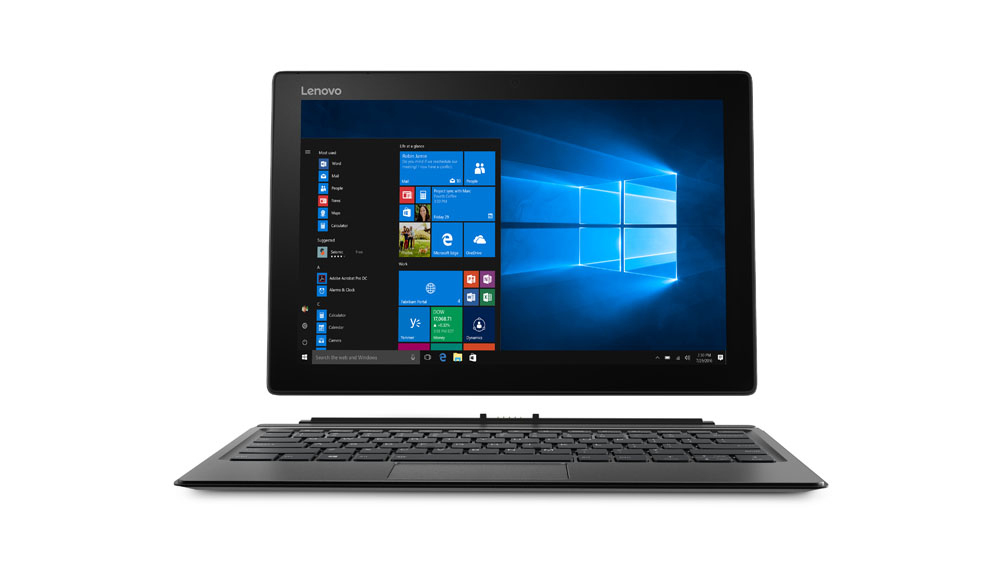

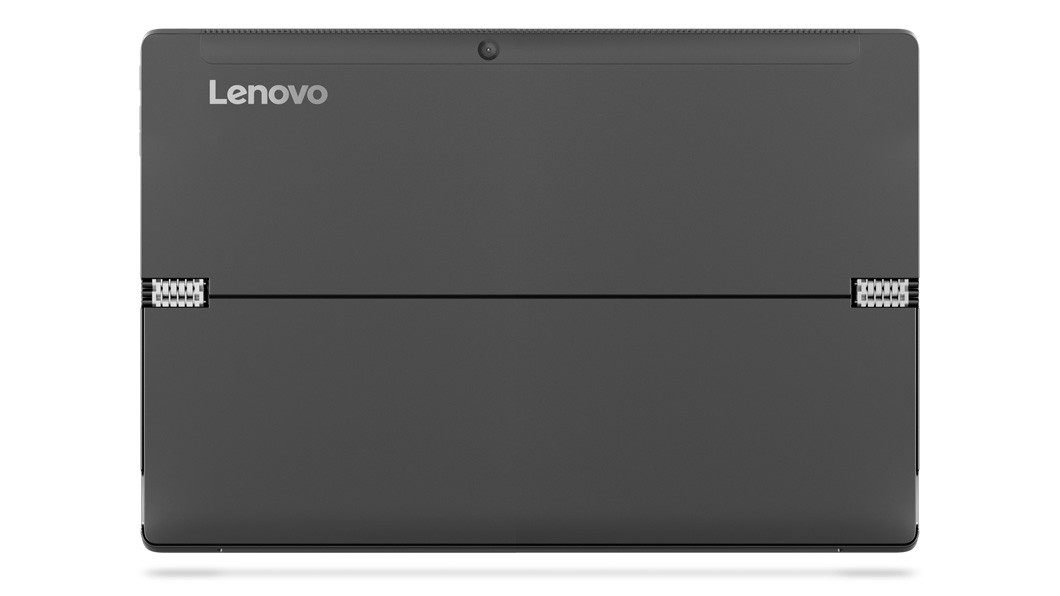

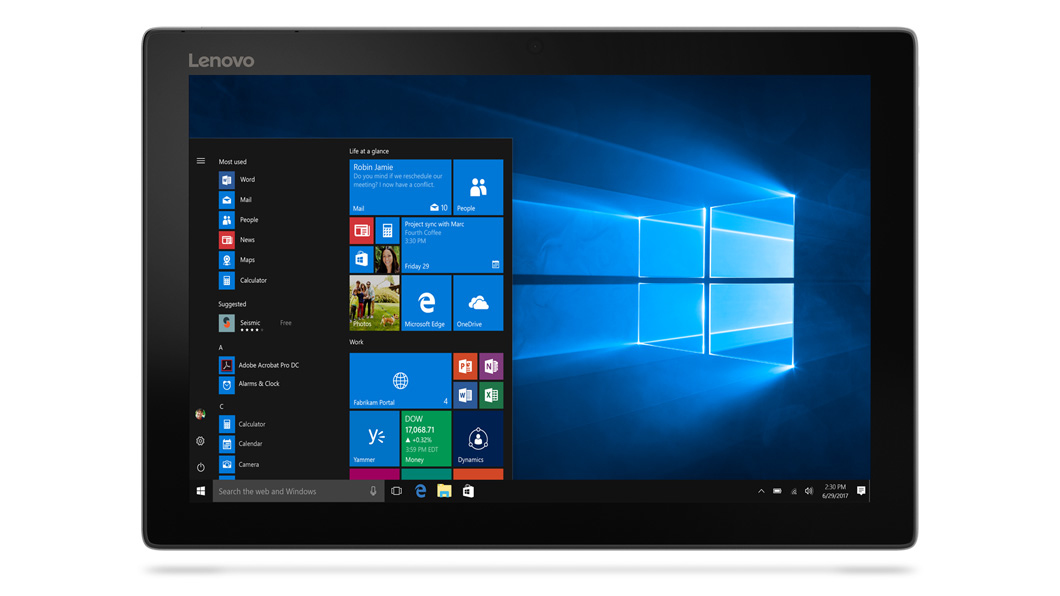

Lenovo 520 Business Editon + USB-C to Ethernet Adapter
Lenovo

520 Business Editon + USB-C to Ethernet Adapter

Model 520 Business Editon + USB-C to Ethernet AdapterPart no. 20M3000JMX+4X90L66917

154 specifications Checked today
  • Display31 cm (12.2")
  • Resolution1920 x 1200 pixels
  • ProcessorIntel® Core™ i5
  • Memory8 GB
  • Storage256 GB
  • GraphicsNot available
See all specifications

Overview

Display
31 cm (12.2")
Resolution
1920 x 1200 pixels
Processor
Intel® Core™ i5
Memory
8 GB
Storage
256 GB
Graphics
Not available
Brand
Lenovo
Category
Laptop
Model
520 Business Editon + USB-C to Ethernet Adapter
Part number
20M3000JMX+4X90L66917
Also known as
Lenovo Miix 520 Business Editon + USB-C to Ethernet Adapter Intel® Core™ i5 i5-8250U Hybrid (2-in-1) 31 cm (12.2") Touchscreen Full HD 8 GB DDR4-SDRAM 256 GB SS

Specifications

154 specifications in 20 groups

Design

Product typeHybrid (2-in-1)
Product colourGrey
Colour nameIron grey
Form factorConvertible (Detachable)
Housing materialAluminium, Magnesium

Display

Display diagonal31 cm (12.2")
Display resolution1920 x 1200 pixels
TouchscreenYes
Touchscreen typeCapacitive
HD typeFull HD
Touch technologyMulti-touch
Panel typeIPS
LED backlightYes
Native aspect ratio16:10
Display brightness320 cd/m²

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation8th gen Intel® Core™ i5
Processor modeli5-8250U
Processor cores4
Processor threads8
Processor boost frequency3.4 GHz
Processor frequency1.6 GHz
System bus rate4 GT/s
Processor cache6 MB
Processor cache typeSmart Cache
Processor socketBGA 1356
Processor lithography14 nm
Processor operating modes64-bit
Processor codenameKaby Lake R
Bus typeOPI
SteppingY0
Thermal Design Power (TDP)15 W
Configurable TDP-up frequency1.8 GHz
Configurable TDP-up25 W
Configurable TDP-down10 W
Configurable TDP-down frequency0.8 GHz
Tjunction100 °C
Maximum number of PCI Express lanes12
PCI Express configurations1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version3.0
ECC supported by processorNo

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Memory clock speed2133 MHz
Memory form factorOn-board
Maximum internal memory8 GB

Storage

Total storage capacity256 GB
Storage mediaSSD
Number of SSDs installed1
SSD capacity256 GB
SSD form factorM.2
Optical drive typeNo

Graphics

On-board graphics cardYes
Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics card familyIntel® UHD Graphics
On-board graphics card modelIntel® UHD Graphics 620
Maximum on-board graphics card memory32 GB
On-board graphics card base frequency300 MHz
On-board graphics card dynamic frequency (max)1100 MHz
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.4
On-board graphics card ID0x5917

Audio

Audio systemDolby Audio
Number of built-in speakers2
Speaker power1 W
Built-in subwooferNo
Built-in microphoneYes

Camera

Front cameraYes
Front camera resolution (numeric)5 MP
Rear cameraYes
Rear camera resolution (numeric)8 MP

Network

Mobile network connectionYes
Mobile network generation4G
4G standardLTE
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet LANNo
BluetoothYes
Bluetooth version4.1
WWANInstalled
SIM card supportYes

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
HDMI ports quantity0
DisplayPorts quantity0
Thunderbolt ports quantity0
Thunderbolt 3 ports quantity0
Combo headphone/mic portYes

Keyboard

Pointing deviceTouchpad
Numeric keypadNo
Windows keysYes

Software

Operating system installedWindows 10 Pro
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Smart Response Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart Response TechnologyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID124967
Processor codeSR3LA
Processor package size42 x 24 mm
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Conflict-Free processorYes

Battery

Battery technologyLithium Polymer (LiPo)
Number of battery cells2
Battery capacity39 Wh
Battery life (max)8 h

Power

AC adapter power45 W
DC-in jackYes

Certificates

Compliance certificatesRoHS

Sustainability

Sustainability certificatesEPEAT Silver, ENERGY STAR

Weight & dimensions

Weight1.26 kg
Weight (tablet mode)880 g
Width (tablet mode)30 cm
Depth (tablet mode)20.5 cm
Height (tablet mode)9.9 mm

Packaging content

AC adapter includedYes
ManualYes

Other features

3DNo
