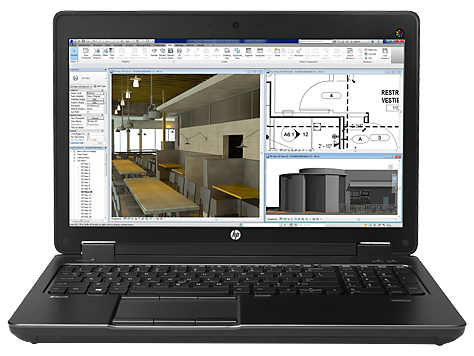

ZBook 15 G2 Win 7 US

Model ZBook 15 G2 Win 7 USPart no. M4S03ES#ABB

154 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage512 GB
GraphicsNVIDIA® Quadro® K2100M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 512 GB
Graphics: NVIDIA® Quadro® K2100M

Brand: HP
Category: Laptop
Model: ZBook 15 G2 Win 7 US
Part number: M4S03ES#ABB
Also known as: HP ZBook 15 G2 Win 7 US Intel® Core™ i7 i7-4710MQ Mobile workstation 39.6 cm (15.6") 32 GB DDR3L-SDRAM 512 GB SSD NVIDIA® Quadro® K2100M Windows 7 Professional

Specifications

154 specifications in 20 groups

Design

Specification	Value
Product type	Mobile workstation
Product colour	Black, Silver
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4710MQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.5 GHz
Processor frequency	2.5 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	PGA946
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Mobile series
Processor codename	Haswell
Bus type	DMI
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	47 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory layout (slots x size)	4 x 8 GB
Memory slots	4x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	SD, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® Quadro® K2100M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card ID	0x416

Audio

Specification	Value
Audio system	HD Audio with DTS Studio Sound
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Near Field Communication (NFC)	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	1
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes

Performance

Specification	Value
Motherboard chipset	Intel® QM87

Keyboard

Specification	Value
Pointing device	Trackpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	US English

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	78931
Processor code	SR1PQ
Processor package size	37.5 x 32 x 1.6 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
