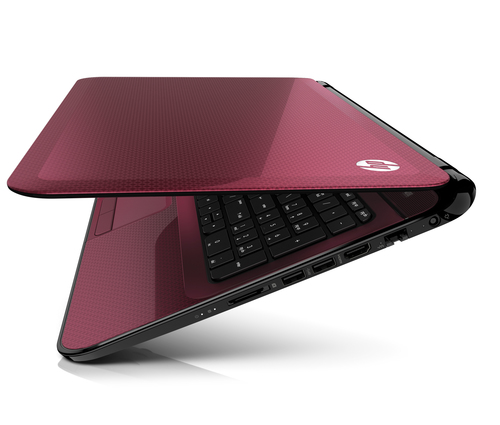

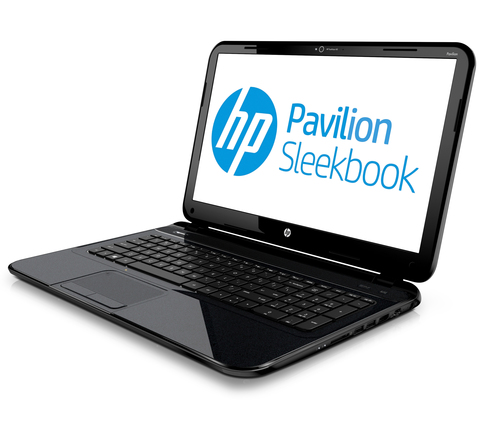

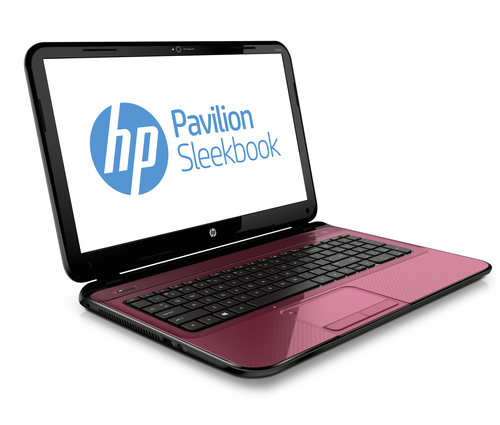

Pavilion 15-b146sa Sleekbook D2X66EA
Model Pavilion 15-b146sa Sleekbook D2X66EAPart no. D2X66EAEAN 887758078433
185 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage750 GB
- GraphicsNot available
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 750 GB
- Graphics
- Not available
- Brand
- HP
- Category
- Laptop
- Model
- Pavilion 15-b146sa Sleekbook D2X66EA
- Part number
- D2X66EA
- EAN / UPC
- 887758078433
- Also known as
- HP Pavilion 15-b146sa Sleekbook D2X66EA Intel® Core™ i5 i5-3337U Laptop 39.6 cm (15.6") HD 4 GB DDR3-SDRAM 750 GB HDD Wi-Fi 4 (802.11n) Windows 8 Black, Red
Specifications
185 specifications in 25 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black, Red |
| Form factor | Clamshell |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| Display number of colours | 16.78 million colours |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor model | i5-3337U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 1.8 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Processor socket | BGA 1023 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-3300 Mobile series |
| Processor codename | Ivy Bridge |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | L1 |
| Thermal Design Power (TDP) | 17 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 2.0 |
| CPU multiplier (bus/core ratio) | 18 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
| Maximum internal memory (64-bit) | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 750 GB |
| Storage media | HDD |
| Total HDDs capacity | 750 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 750 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4000 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card ID | 0x166 |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Advanced audio |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Altec Lansing |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth | No |
| Data network | Not supported |
| 4G WiMAX | No |
| Integrated 4G WiMAX | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Headphone connectivity | 3.5 mm |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel HM77 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Connect Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Rapid Start Technology | No |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 72055 |
| Processor code | SR0XL |
| Processor package size | 31 x 24 (BGA1023) |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| Power auto-sensing | Yes |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
| Password protection | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Wi-Fi certified | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.1 kg |
| Width | 386 mm |
| Depth | 259 mm |
| Height | 21 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 560 mm |
| Package depth | 80 mm |
| Package height | 345 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
