Mini 2140 + 3y Return to Depot NB/TAB Only SVC
Model Mini 2140 + 3y Return to Depot NB/TAB Only SVCPart no. NN355EA#AKD?UK735A
121 specifications Checked today
- Display25.6 cm (10.1")
- Resolution1024 x 576 pixels
- ProcessorIntel Pentium Mobile
- Memory1 GB
- Storage160 GB
- TypeNetbook
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1024 x 576 pixels
- Processor
- Intel Pentium Mobile
- Memory
- 1 GB
- Storage
- 160 GB
- Type
- Netbook
- Brand
- HP
- Category
- Laptop
- Model
- Mini 2140 + 3y Return to Depot NB/TAB Only SVC
- Part number
- NN355EA#AKD?UK735A
- Also known as
- HP Mini 2140 + 3y Return to Depot NB/TAB Only SVC Intel Pentium Mobile N270 Netbook 25.6 cm (10.1") 1 GB DDR2-SDRAM Windows XP Home Edition Silver
Specifications
121 specifications in 21 groups
Design
| Specification | Value |
|---|---|
| Product type | Netbook |
| Product colour | Silver |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1024 x 576 pixels |
| HD type | Not supported |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium Mobile |
| Processor model | N270 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Processor socket | Socket F (1207) |
| Processor lithography | 45 nm |
| Processor operating modes | 32-bit |
| Processor series | Intel Atom N200 Series |
| Processor codename | Diamondville |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | C0 |
| Thermal Design Power (TDP) | 2.5 W |
| Tjunction | 90 °C |
| Number of Processing Die Transistors | 47 M |
| Processing Die size | 26 mm² |
| CPU multiplier (bus/core ratio) | 12 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 1 GB |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 160 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Graphics card | GMA 950 |
Audio
| Specification | Value |
|---|---|
| Audio system | High-definition audio |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Audio included | High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated stereo microphones |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 NIC |
| Wireless technology | IEEE 802.11a/b/g/n, Y |
| Ethernet LAN data rates | 1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |

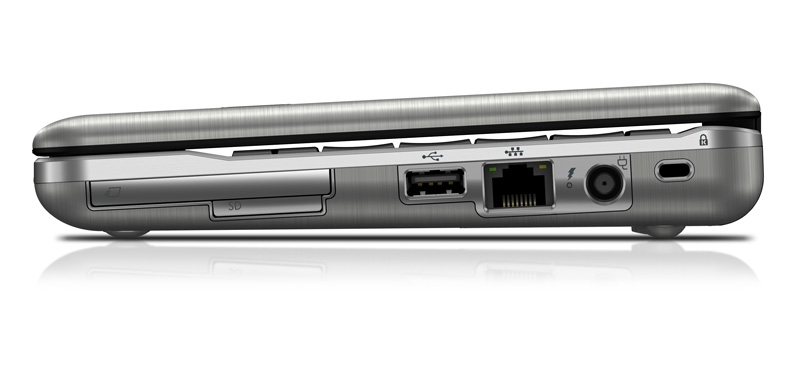

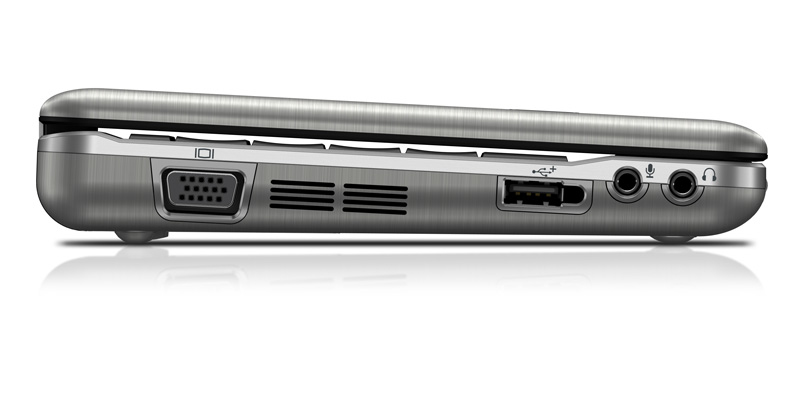

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| ExpressCard slot | Yes |
| I/O ports | 2 USB 2.0; 1 microphone in; 1 headphone/line-out; 1 external VGA monitor; 1 RJ-45; 1 AC power |

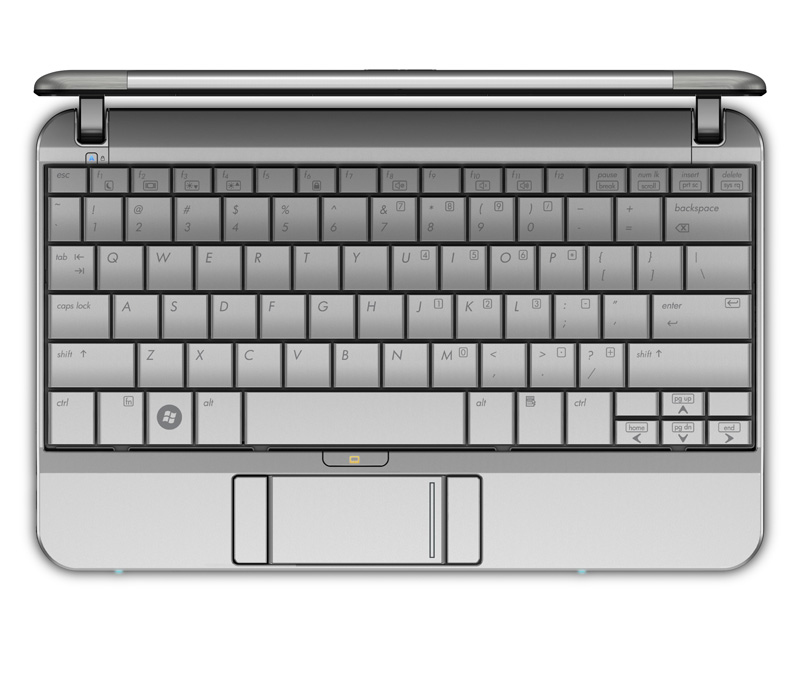

Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard type | 92% of full-size keyboard |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Home Edition |
| Bundled software | Roxio Creator 9, Microsoft Office Ready 2007, SuSE Linux Enterprise Desktop 10 |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 36331 |
| Processor code | SLB73 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 3 |
| Battery life (max) | 3 h |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Security management description | Configuration Control Hardware; Memory Change Alert; Ownership Tag; Setup Password; Power-On Password; Kensington Lock Slot |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | ENERGY STAR qualified |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.19 kg |
| Width | 261.4 mm |
| Depth | 166.2 mm |
| Height | 26.7 mm |
| Dimensions (WxDxH) | 261.4 x 166.2 x 26.7 mm |
| Weight (imperial) | Weight varies by configuration and component. Starting at 2.6 lb |
Hard drive
| Specification | Value |
|---|---|
| Storage drive type | 160 GB 5400 rpm SATA |
Video
| Specification | Value |
|---|---|
| Video card features | Intel GMA 950 |
Other features
| Specification | Value |
|---|---|
| Battery type | 3-cell (28 WHr) high capacity Lithium-Ion |
| Power requirements | 65W HP Smart AC Adapter, HP Fast Charge |
| Modem type | No modem included |
| Manageability features | HP 3D DriveGuard |
| Expansion slots | 1 Express Card/54; 1 secure digital |
| Multi-bay devices | Optional external Multibay II devices |
| Multimedia features | ADI1984HD High Definition CODEC; 24-bit DAC; Integrated stereo speakers; Stereo headphone/line out; Stereo microphone in |
| Supplied AC adapter type | AC, 1000 |
