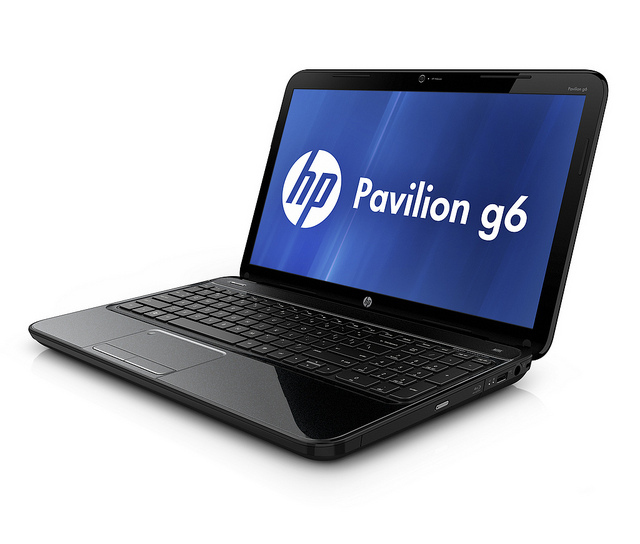

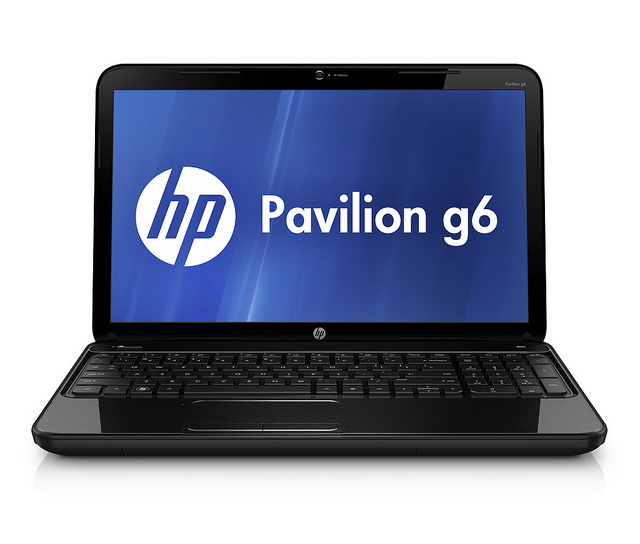

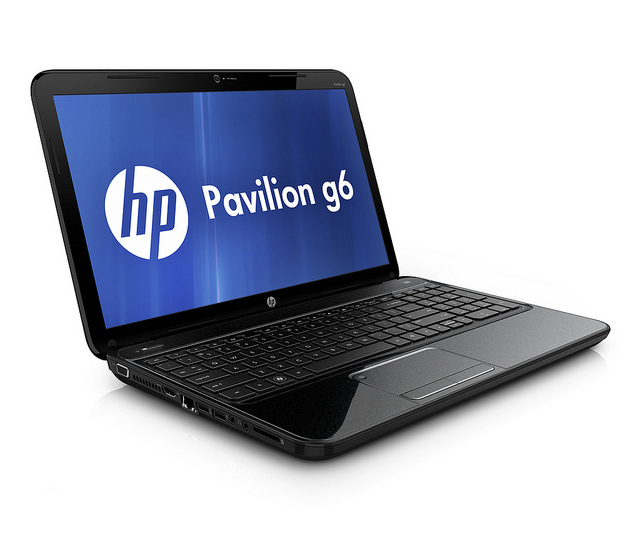

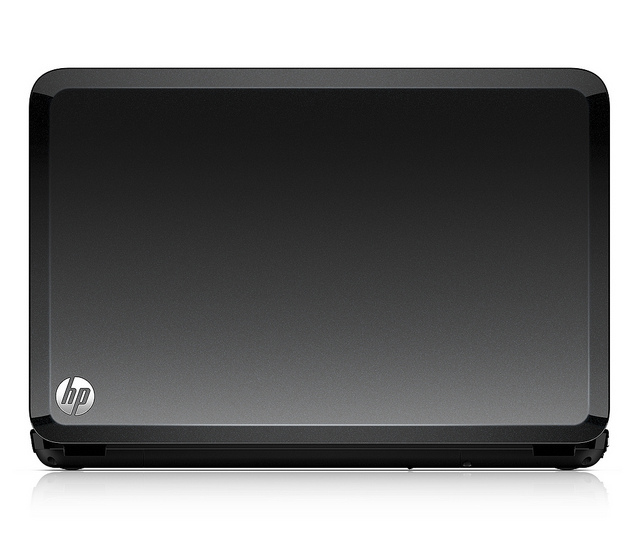

Pavilion g6-2301sd AMD A6 A6-4400M Laptop
39.6 cm (15.6") HD 6 GB DDR3-SDRAM 750 GB HDD AMD Radeon HD 7670M Windows 8 Black QWERTY
Model g6-2301sdPart no. D2G86EA#ABH
141 specifications Checked today
- Display39.6 cm (15.6")
- Resolution1366 x 768 pixels
- ProcessorAMD A6
- Memory6 GB
- Storage750 GB
- GraphicsAMD Radeon HD 7670M
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1366 x 768 pixels
- Processor
- AMD A6
- Memory
- 6 GB
- Storage
- 750 GB
- Graphics
- AMD Radeon HD 7670M
- Brand
- HP
- Category
- Laptop
- Model
- g6-2301sd
- Part number
- D2G86EA#ABH
- Also known as
- HP Pavilion g6-2301sd AMD A6 A6-4400M Laptop 39.6 cm (15.6") HD 6 GB DDR3-SDRAM 750 GB HDD AMD Radeon HD 7670M Windows 8 Black QWERTY
Specifications
141 specifications in 23 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| HD type | HD |
| Display number of colours | 16.78 million colours |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD A6 |
| Processor model | A6-4400M |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.7 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 2 + 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory slots (available) | 0 |
| Maximum internal memory | 8 GB |
| Maximum internal memory (64-bit) | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 750 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 750 GB |
| HDD interface | SATA |
| HDD speed | 5400 RPM |
| Number of SSDs installed | 0 |
| Optical drive type | DVD Super Multi DL |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | AMD Radeon HD 7670M |
| Discrete graphics memory type | GDDR3 |
| On-board graphics card family | AMD Radeon HD 7000 |
| On-board graphics card model | AMD Radeon HD 7520G |
| Number of discrete graphics cards | 1 |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Advanced audio |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Altec Lansing |
| Built-in microphone | Yes |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | No |
| CD read speed | 24x |
| CD write speed | 24x |
| CD-R read speed | 24x |
| CD-R write speed | 24x |
| Optical drive interface | SATA |
| DVD-R read speed | 8x |
| DVD-R write speed | 8x |
| DVD-R Double Layer read speed | 6x |
| DVD-R Double Layer write speed | 6x |
| DVD-RW read speed | 8x |
| DVD-RW write speed | 8x |
| DVD+R read speed | 8x |
| DVD+R write speed | 8x |
| DVD+R Double Layer read speed | 6x |
| DVD+R Double Layer write speed | 6x |
| DVD+RW read speed | 8x |
| DVD+RW write speed | 8x |
| DVD-RAM read speed | 5x |
| DVD-RAM write speed | 5x |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth | No |
| WWAN | Not installed |
| Cabling technology | 10/100Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 0 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Combo headphone/mic port | No |
| Microphone in | Yes |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Headphone connectivity | 3.5 mm |
| Microphone connectivity | 3.5 mm |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | AMD A70M |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Island-style keyboard | Yes |
| Full-size keyboard | Yes |
| Keyboard layout | QWERTY |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 |
| Operating system architecture | 64-bit |
| Trial software | Symantec Norton Internet Security 2013 |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 6 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 90 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| Power auto-sensing | Yes |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
| Password protection type | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Wi-Fi certified | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.48 kg |
| Width | 376 mm |
| Depth | 244 mm |
| Height | 36.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 520 mm |
| Package depth | 80 mm |
| Package height | 345 mm |
| Package weight | 3.34 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Manual | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| Supplied AC adapter type | AC |
