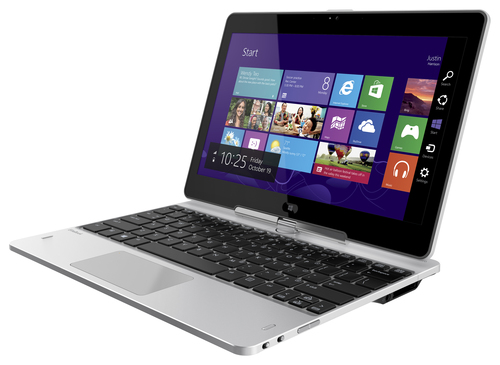

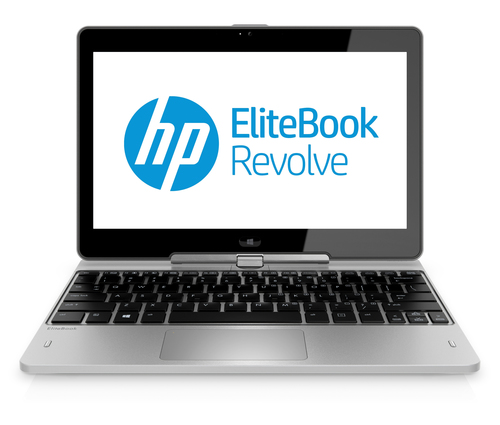

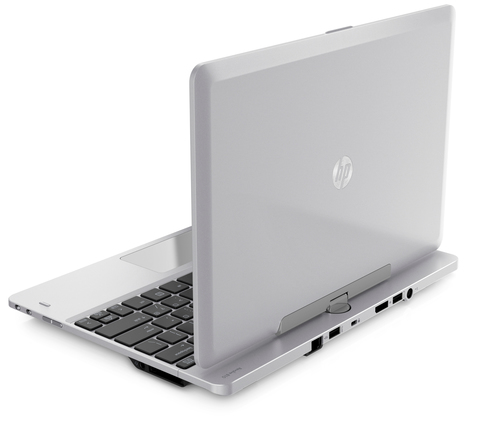

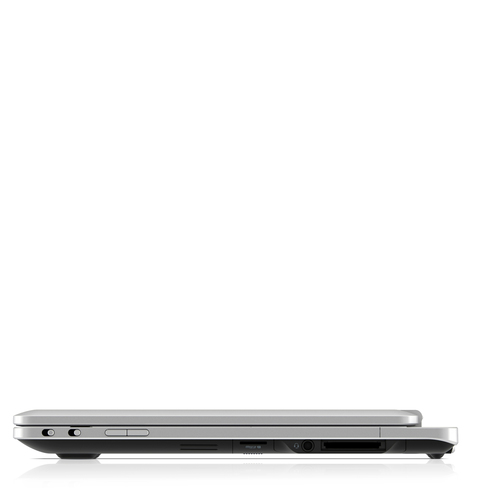

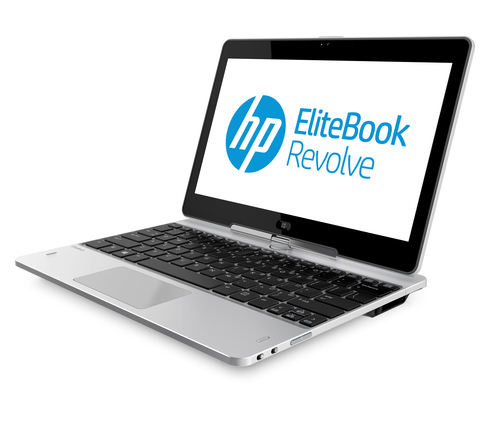

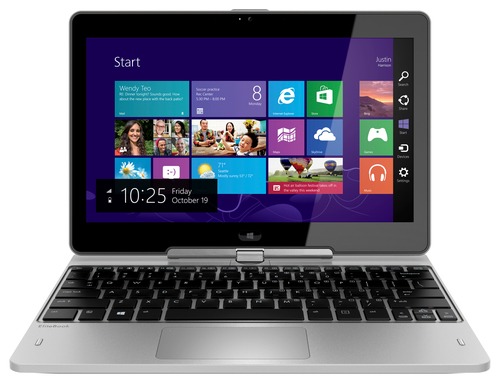

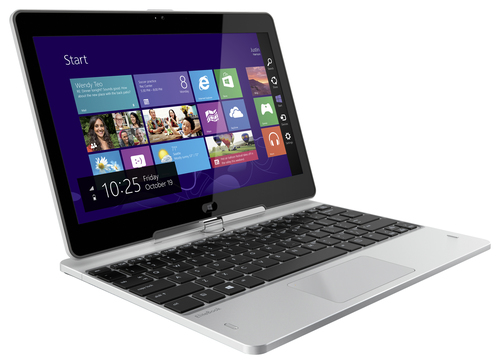

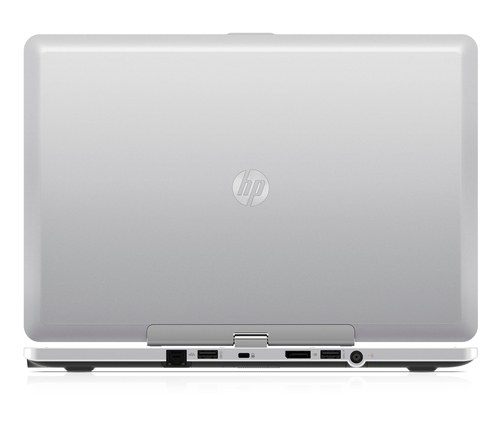

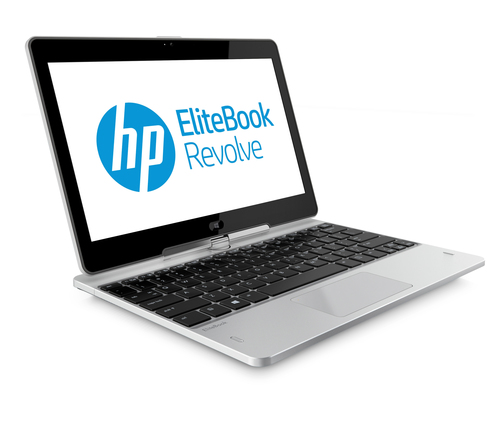

EliteBook Revolve 810 G1 Tablet
Model EliteBook Revolve 810 G1 TabletPart no. H5F14EA#ABB
149 specifications Checked today
- Display29.5 cm (11.6")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage128 GB
- GraphicsNot available
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 128 GB
- Graphics
- Not available
- Brand
- HP
- Category
- Laptop
- Model
- EliteBook Revolve 810 G1 Tablet
- Part numbers
- H5F14EA#ABB, H5F56EA#ABH, D7P56AW#ABB, D7P58AW#ABB, H5F11ET#DAM
- Also known as
- HP EliteBook Revolve 810 G1 Tablet Intel® Core™ i5 i5-3437U Hybrid (2-in-1) 29.5 cm (11.6") Touchscreen HD 4 GB DDR3-SDRAM 128 GB SSD Wi-Fi 4 (802.11n) Windows
Specifications
149 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Silver |
| Form factor | Convertible (Swivel) |
| Country of origin | China |
Display
| Specification | Value |
|---|---|
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | Yes |
| HD type | HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor model | i5-3437U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.9 GHz |
| Processor frequency | 1.9 GHz |
| System bus rate | 5 GT/s |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1023 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor codename | Ivy Bridge |
| Bus type | DMI |
| FSB Parity | No |
| Stepping | L1 |
| Thermal Design Power (TDP) | 17 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 2.0 |
| CPU multiplier (bus/core ratio) | 19 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 12 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4000 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card ID | 0x166 |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS Studio Sound |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 1 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Integrated 4G WiMAX | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA/USB 2.0 ports quantity | 0 |
| eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| Docking connector | Yes |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® QM77 Express |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Spill-resistant keyboard | Yes |
| Full-size keyboard | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 71259 |
| Processor code | SR0XE |
| Processor package size | 31.0 x 24.0 (BGA1023) |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
| Battery capacity | 44 Wh |
| Battery life (max) | 8 h |
Power
| Specification | Value |
|---|---|
| AC adapter power | 45 W |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.4 kg |
| Width | 285 mm |
| Depth | 212 mm |
| Height | 22.2 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
