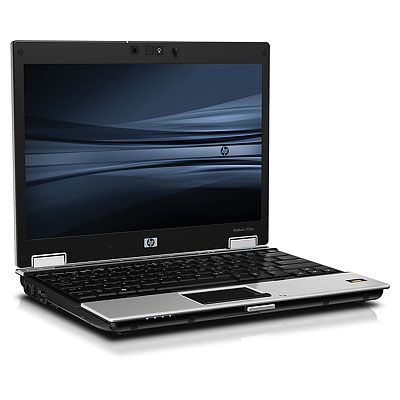

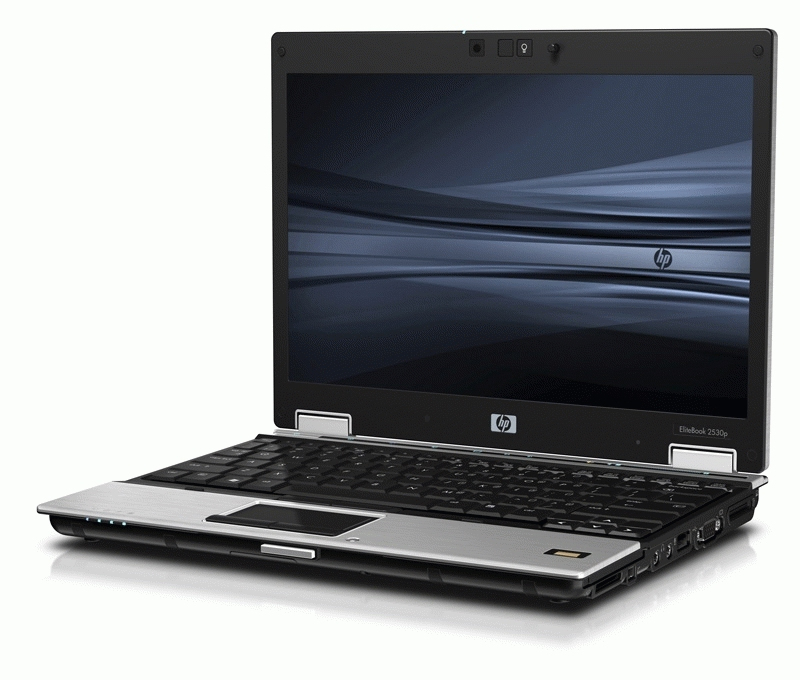

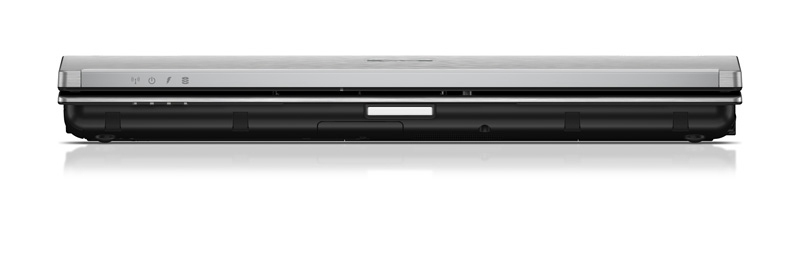

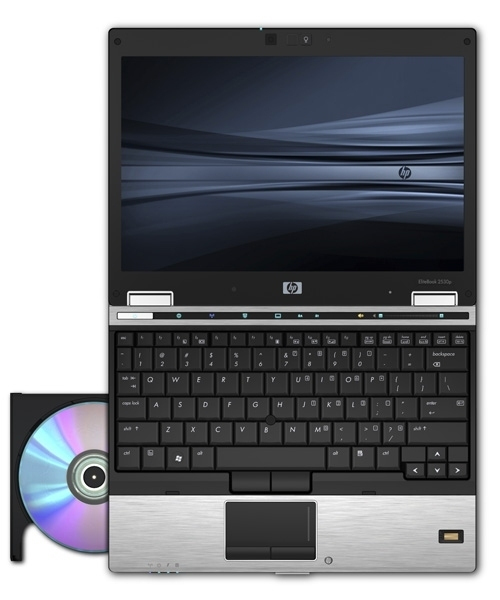

EliteBook 2530p Notebook PC (ENERGY STAR)

Model EliteBook 2530p Notebook PC (ENERGY STAR)Part no. SF940UCEAN 884420995500

139 specifications Checked today

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage120 GB
GraphicsIntel® GMA X4500HD

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 120 GB
Graphics: Intel® GMA X4500HD

Brand: HP
Category: Laptop
Model: EliteBook 2530p Notebook PC (ENERGY STAR)
Part numbers: SF940UC, SF936UC, FV879AW#ABH, FM863UA, NQ102AW, KS092UT#ABA-B2 +18 more
EAN / UPC: 884420995500, 884420994602, 884420995364, 884420995371 +36 more
Also known as: HP EliteBook 2530p Notebook PC (ENERGY STAR) Intel® Core™2 Duo SL9400 30.7 cm (12.1") 2 GB DDR2-SDRAM 120 GB Intel® GMA X4500HD Windows Vista Business QWERTY

Specifications

139 specifications in 22 groups

Design

Specification	Value
Country of origin	China

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	SL9400
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo SL9000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	17 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	7.1
ECC supported by processor	No
Processor technology	Intel Centrino w/ vPro

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	800 MHz
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	120 GB
HDD capacity	120 GB
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	SD
Maximum HDD capacity	160 GB

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X4500HD
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Audio system	High Definition Audio, integrated mono speaker, stereo headphone/line out, stereo microphone in, integrated dual-microphone array, optional 2 MP Webcam with Business Card Reader Software
Audio included	High Definition Audio, integrated mono speaker, stereo headphone/line out, stereo microphone in, integrated dual-microphone array

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Networking features	Intel Gigabit Network Connection (10/100/1000 NIC)
Wireless technology	Intel Wireless LAN 802.11a/b/g/n mini-pci card, Bluetooth, Y
Bluetooth	Yes

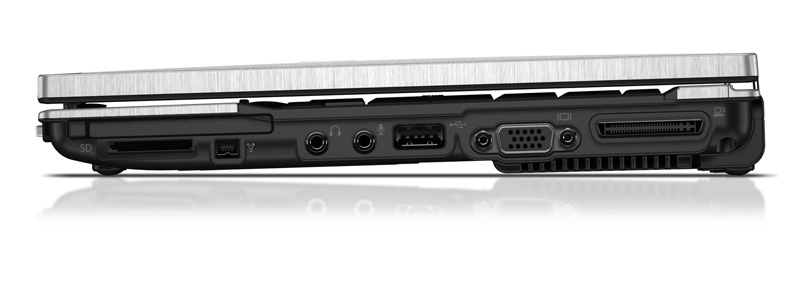

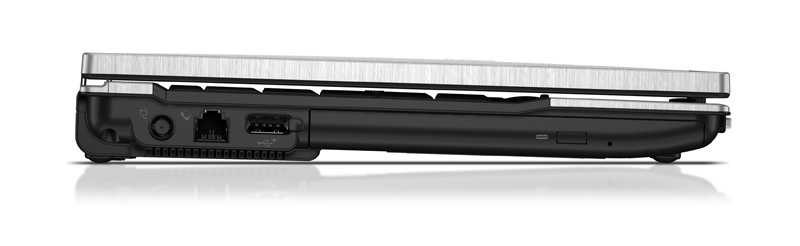

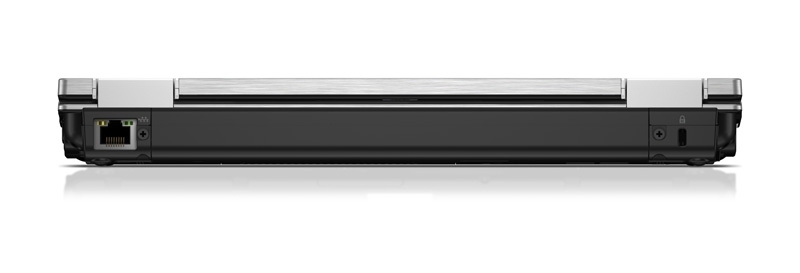

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
I/O ports	2 USB 2.0 ports (3 USB 2.0 ports when configured without integrated optical drive), VGA, stereo microphone in, stereo headphone/line out, Firewire (1394a), power connector, RJ-11, RJ-45

Performance

Specification	Value
Motherboard chipset	Intel® GS45 Express

Keyboard

Specification	Value
Keyboard layout	QWERTY
Keyboard type	Full-sized

Software

Specification	Value
Operating system installed	Windows Vista Business
Bundled software	HP Recovery Manager, HP Client Manager Software, HP Client Configuration Management Agent
Compatible operating systems	Genuine Windows Vista Enterprise, SuSe Linux Enterprise Desktop 10

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	36689
Processor package size	22 x 22 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Security management description	McAfee Security Solution, Kensington Lock slot, HP Privacy Filter (optional)

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35, 5 - 35
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95, 5 - 90

Weight & dimensions

Specification	Value
Weight	1.45 kg
Width	282 mm
Depth	214 mm
Height (front)	2.5 cm
Dimensions (WxDxH)	282.3 x 214.3 x 25.2 mm
Weight (imperial)	Weight varies by configuration and component. Starting at 3.19 lb

Hard drive

Specification	Value
Storage drive type	120 GB 5400 rpm 1.8-inch SATA II
Storage drive controller	SATA II, SATA (7200 rpm) SATA (5400 rpm)

Video

Specification	Value
Video card features	Intel GMA X4500HD

Other features

Specification	Value
Infrared data port	No
Battery type	6-cell (55 WHr) high capacity Lithium-Ion
Minimum storage drive space	80 GB
Power requirements	External 65W HP Smart AC adapter, HP Fast Charge Technology 6-cell (55 WHr) Lithium-Ion battery
Power supply type	External 65-watt Smart AC adapter; HP Fast Charge
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	56K
Intel segment tagging	Enterprise
Manageability features	Intel Centrino 2 with vPro technology capable
Docking solution	HP 2400/2500 Ultra-Light Docking Station, External MultiBay II, HP Monitor Stand, HP Adjustable Notebook Stand (all sold separately)
Expansion slots	Slots available for additional devices: 1 ExpressCard/54 slot, Secure Digital slot
Multi-bay devices	Optional external Multibay II devices
Protection tools	HP ProtectTools, TPM Embedded Security Chip 1.2, HP Fingerprint Sensor, HP Disk Sanitizer, optional Smart Card Reader
Supplied AC adapter type	AC, 1
