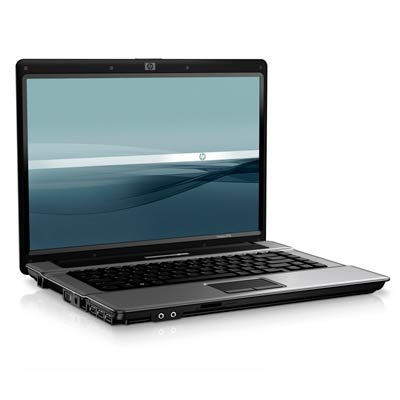

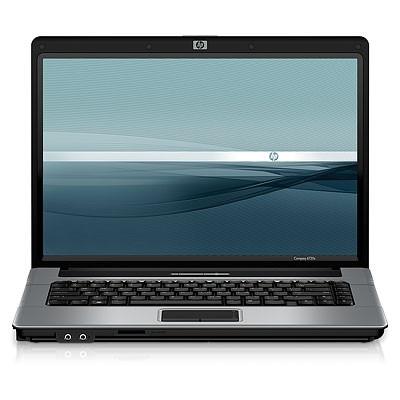

Compaq 6720s Intel Celeron Processor M560 1024M/120G 15.4" WXGA BrightView DVD+/-RW DL WVST Home B Notebook PC

Model Compaq 6720s Intel Celeron Processor M560 1024M/120G 15.4" WXGA BrightView DVD+/-RW DL WVST Home B Notebook PCPart no. KU344EA#ABH

113 specifications Checked today

Overview

Brand: HP
Category: Laptop
Model: Compaq 6720s Intel Celeron Processor M560 1024M/120G 15.4" WXGA BrightView DVD+/-RW DL WVST Home B Notebook PC
Part numbers: KU344EA#ABH, KU344EA#MLK
Also known as: HP Compaq 6720s Intel Celeron Processor M560 1024M/120G 15.4" WXGA BrightView DVD+/-RW DL WVST Home B Notebook PC Intel® Celeron® 560 39.1 cm (15.4") 1 GB DDR2-

113 specifications in 19 groups

Specification	Value
Country of origin	China

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	560
Processor cores	1
Processor frequency	2.13 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	31 W
Tcase	100 °C
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	16
ECC supported by processor	No

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X3100
Maximum graphics card memory	0.384 GB

Specification	Value
Audio system	High Definition Audio

Specification	Value
Front camera	No

Specification	Value
LightScribe	Yes

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	Yes
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Specification	Value
Motherboard chipset	Intel GL960 Express

Specification	Value
Pointing device	Touchpad
Keyboard layout	QWERTY

Specification	Value
Operating system installed	Windows Vista Home Basic

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	34439
Processor package size	35 x 35 mm
Conflict-Free processor	No
