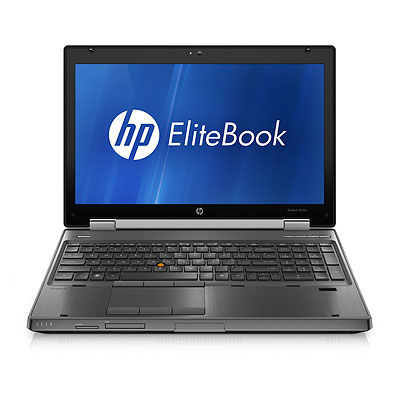

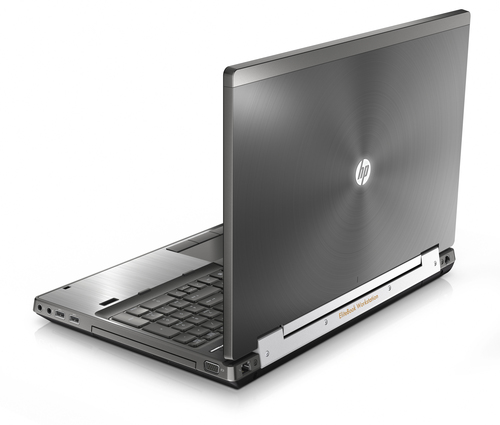

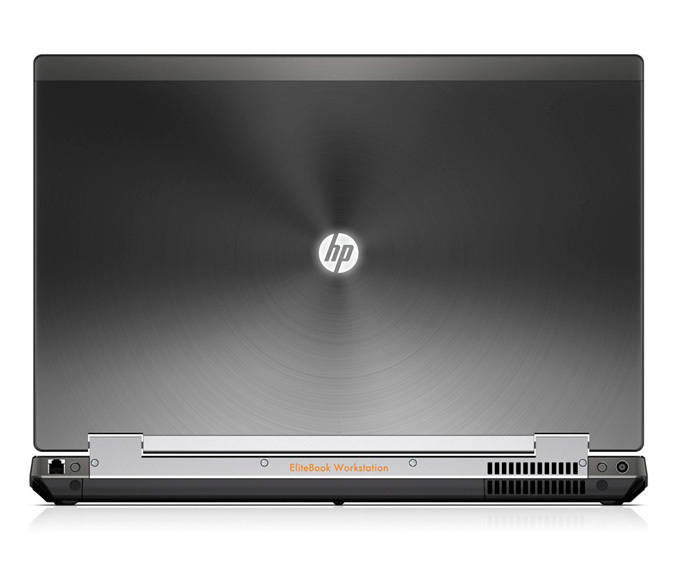

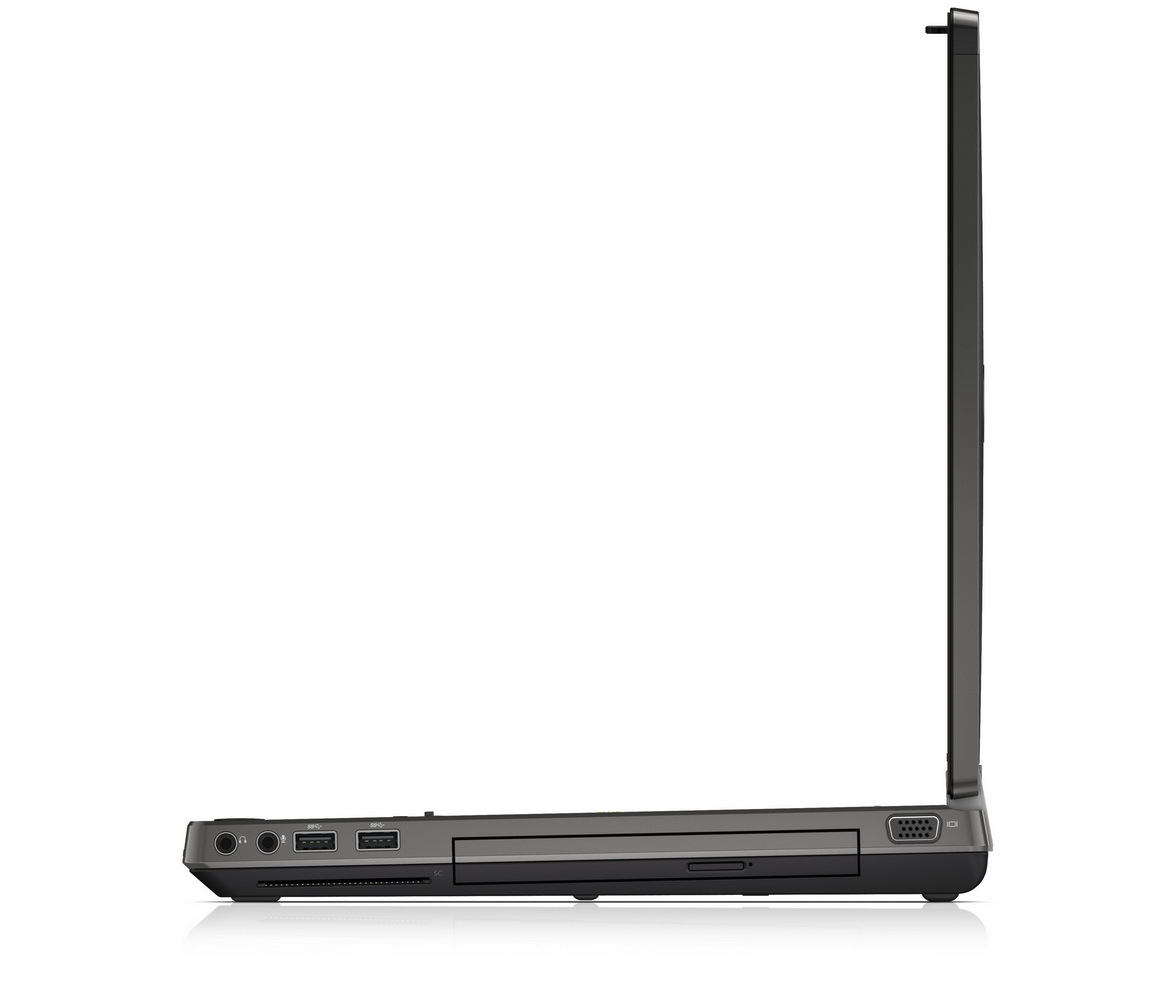

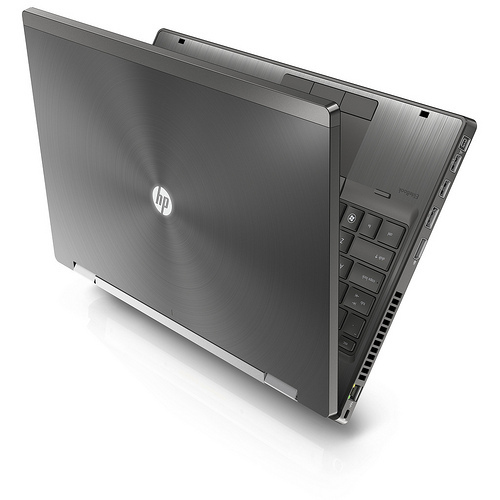

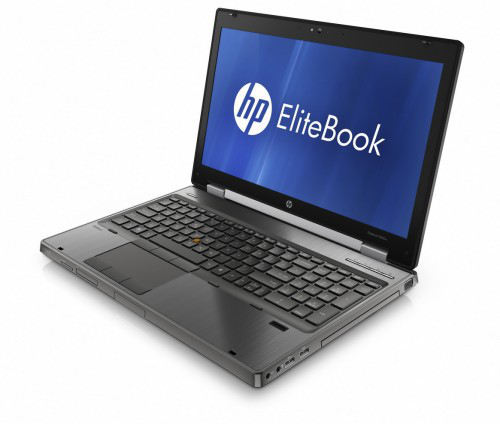

HP 8560w Mobile Workstation
HP

8560w Mobile Workstation

Model 8560w Mobile WorkstationPart no. LY667ES

160 specifications Checked today
  • Display39.6 cm (15.6")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i7
  • Memory8 GB
  • Storage256 GB
  • GraphicsAMD FirePro M5950
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i7
Memory
8 GB
Storage
256 GB
Graphics
AMD FirePro M5950
Brand
HP
Category
Laptop
Model
8560w Mobile Workstation
Part number
LY667ES
Also known as
HP EliteBook 8560w Mobile Workstation Intel® Core™ i7 i7-2760QM 39.6 cm (15.6") Full HD 8 GB DDR3-SDRAM 256 GB SSD AMD FirePro M5950 Windows 7 Professional Grap

Specifications

160 specifications in 20 groups

Design

Product colourGraphite
Form factorClamshell
Country of originChina

Display

Display diagonal39.6 cm (15.6")
Display resolution1920 x 1080 pixels
HD typeFull HD
LED backlightYes
Native aspect ratio16:9
Display surfaceMatt

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation2nd gen Intel® Core™ i7
Processor modeli7-2760QM
Processor cores4
Processor threads8
Processor boost frequency3.5 GHz
Processor frequency2.4 GHz
System bus rate5 GT/s
Processor cache6 MB
Processor cache typeSmart Cache
L3 cache6 MB
L2 cache1 MB
Processor socketBGA 1224
Processor lithography32 nm
Processor operating modes64-bit
Processor seriesIntel Core i7-2700 Mobile Series
Processor codenameSandy Bridge
Bus typeDMI
FSB ParityNo
SteppingD2
Thermal Design Power (TDP)45 W
Tjunction100 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version2.0
CPU multiplier (bus/core ratio)24
ECC supported by processorNo

Memory

Internal memory8 GB
Internal memory typeDDR3-SDRAM
Memory clock speed1333 MHz
Memory slots4x SO-DIMM
Maximum internal memory32 GB

Storage

Total storage capacity256 GB
Storage mediaSSD
SSD capacity256 GB
SSD interfaceSATA II
Optical drive typeBlu-Ray DVD Combo
Card reader integratedYes
Compatible memory cardsMMC, MMC+, SD, SDXC

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelAMD FirePro M5950
Graphics card familyAMD, Intel
Discrete graphics memory typeGDDR5
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 3000
On-board graphics card base frequency650 MHz
On-board graphics card dynamic frequency (max)1300 MHz
On-board graphics card ID0x116

Audio

Audio systemSRS Premium
Number of built-in speakers2
Built-in microphoneYes

Optical drive

LightScribeNo

Network

Wi-FiYes
Networking featuresGigabit Ethernet, WLAN
Wireless technologyWi-Fi, Bluetooth
Wi-Fi standards802.11a, 802.11b, 802.11g
Ethernet LANYes
BluetoothYes
Bluetooth version2.1+EDR
Cabling technology10/100/1000Base-T(X)
LAN controllerIntel® 82579LM
Integrated 4G WiMAXYes

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
eSATA/USB 2.0 ports quantity1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0
eSATA ports quantity0
Ethernet LAN (RJ-45) ports1
HDMI ports quantity0
DisplayPorts quantity1
DVI portNo
VGA (D-Sub) ports quantity1
Firewire (IEEE 1394) ports1
Thunderbolt ports quantity0
Headphone outputs1
S/PDIF out portNo
Microphone inYes
Docking connectorYes
ExpressCard slotYes
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotYes
Modem (RJ-11) ports1
TV-outNo

Performance

Motherboard chipsetIntel® QM67 Express

Keyboard

Pointing deviceTouchpad
Numeric keypadYes
Keyboard languageGerman

Software

Operating system installedWindows 7 Professional
Operating system architecture64-bit
Drivers includedYes

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography32 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Processor ARK ID53474
Processor codeSR02R
Processor package size37.5 x 37.5 (rPGA988B); 31.0 x 24.0 (BGA1224)
Supported instruction setsAVX
Thermal Monitoring TechnologiesYes
Conflict-Free processorNo

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells8
Battery capacity75 Wh
Battery life (max)5.4 h

Power

AC adapter power150 W
DC-in jackYes

Security

Cable lock slotYes
Cable lock slot typeKensington
Fingerprint readerYes
Trusted Platform Module (TPM)Yes

Weight & dimensions

Weight3.1 kg
Width382 mm
Depth258 mm
Height (front)3.5 cm
Height (rear)3.9 cm

Packaging content

AC adapter includedYes

Other features

Infrared data portNo
Internal modemYes
Intel segment taggingEnterprise
