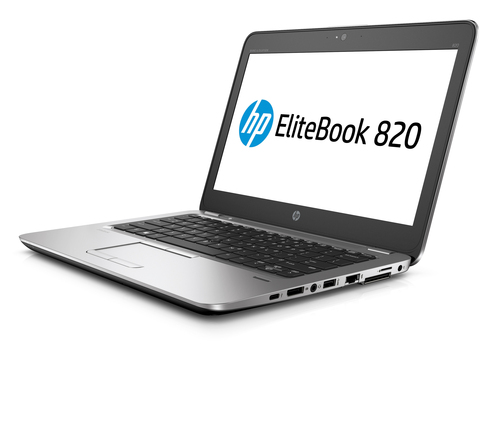

820 G3 i5-6300U 12.5 8GB/512 PC

Model 820 G3 i5-6300U 12.5 8GB/512 PCPart no. Z3R15EP

148 specifications Checked today

Display31.8 cm (12.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 31.8 cm (12.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: HP
Category: Laptop
Model: 820 G3 i5-6300U 12.5 8GB/512 PC
Part number: Z3R15EP
Also known as: HP 820 G3 i5-6300U 12.5 8GB/512 PC Intel® Core™ i5 Laptop 31.8 cm (12.5") Full HD DDR4-SDRAM 512 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Silver

Specifications

148 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	31.8 cm (12.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Display technology marketing name	UWVA
Panel type	UWVA
Native aspect ratio	16:9
Dual-screen	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6300U
Processor cores	2
Processor threads	4
Processor boost frequency	3 GHz
Processor frequency	2.4 GHz
System bus rate	4 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1356 (Socket B2)
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel® Core™ i5-6300 Mobile Series
Processor codename	Skylake
Bus type	QPI
Stepping	D1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.5 GHz
Configurable TDP-up	25 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 4x1
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Memory layout (slots x size)	1 x 8 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	SATA
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card ID	1916

Audio

Specification	Value
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera signal format	720p

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2
SIM card support	Yes

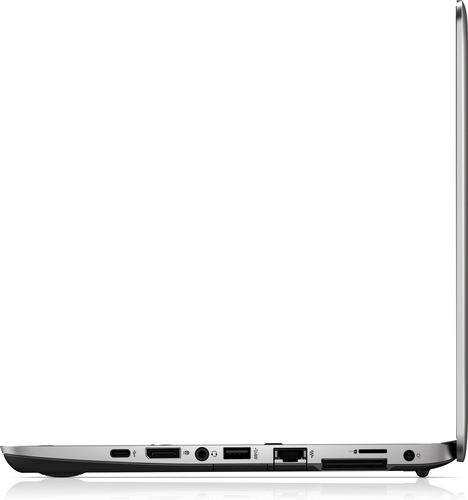

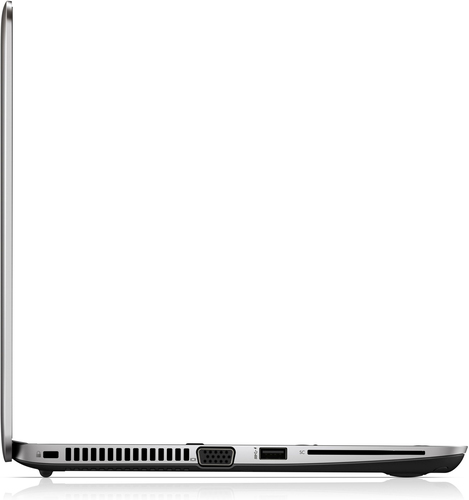

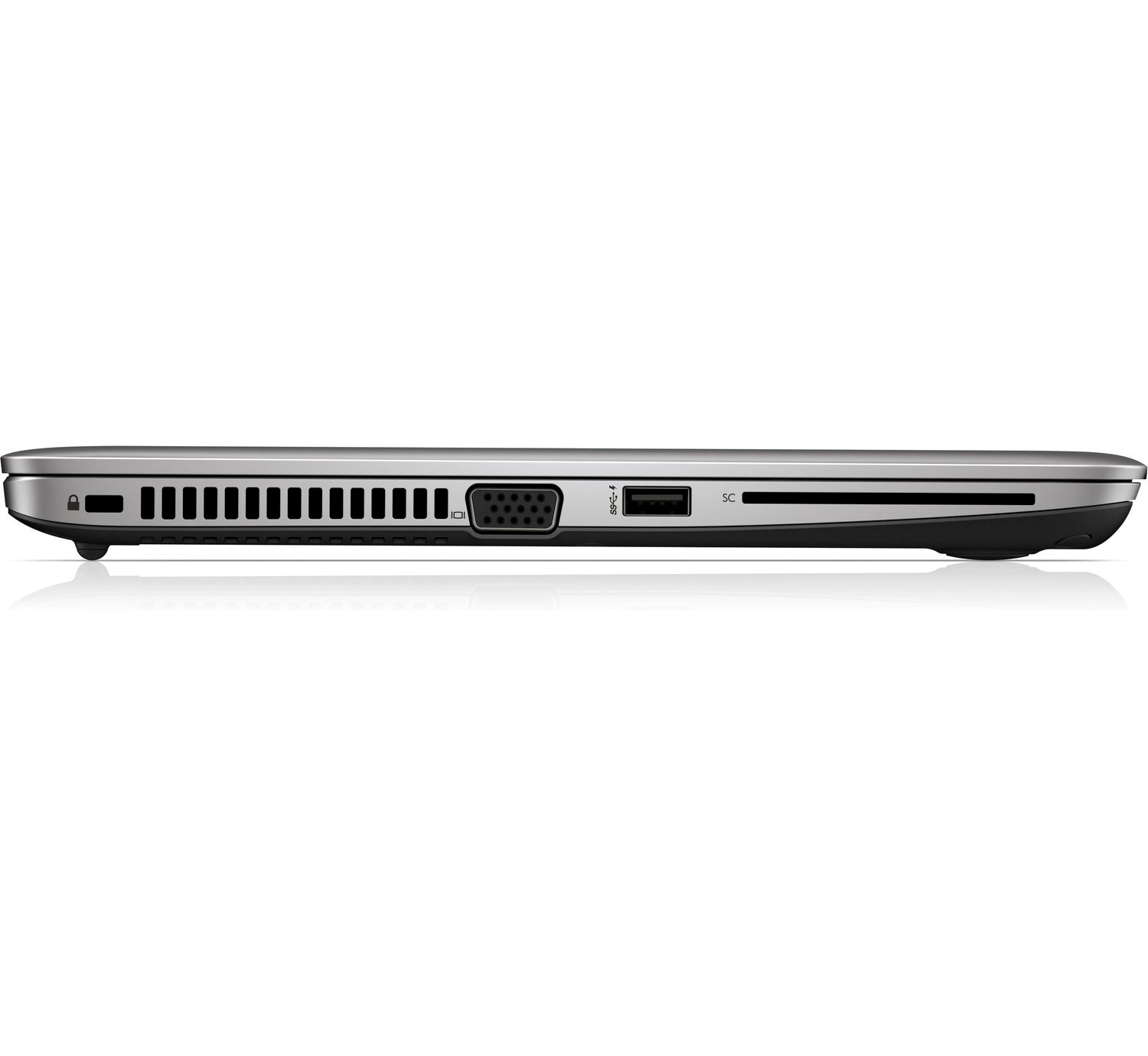

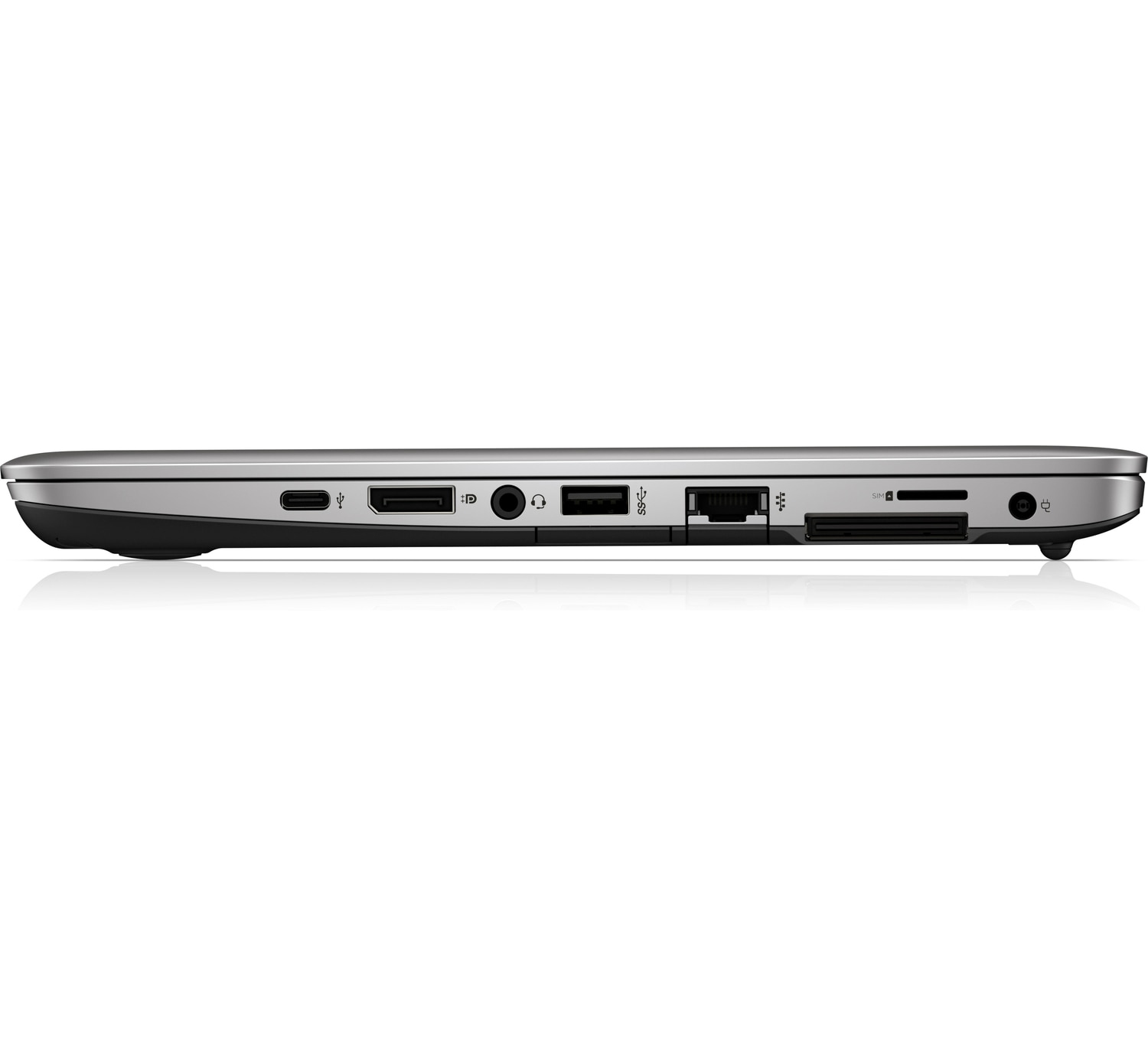

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	1
Thunderbolt 3 ports quantity	0
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	88190
Processor code	SR2F0
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
