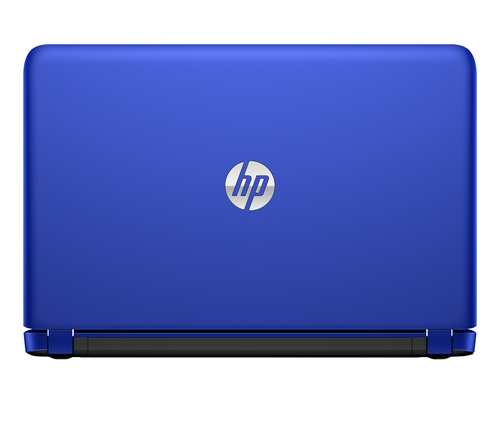

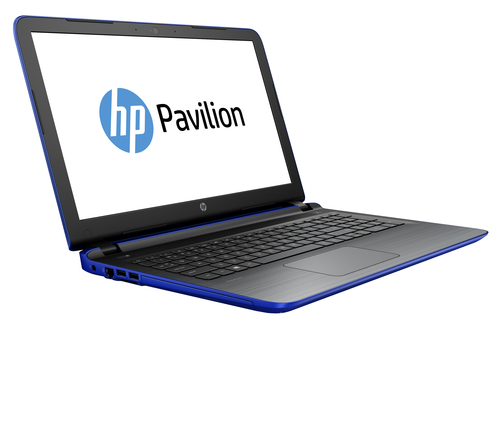

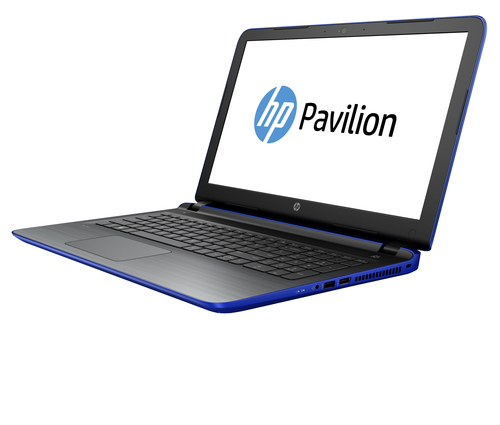

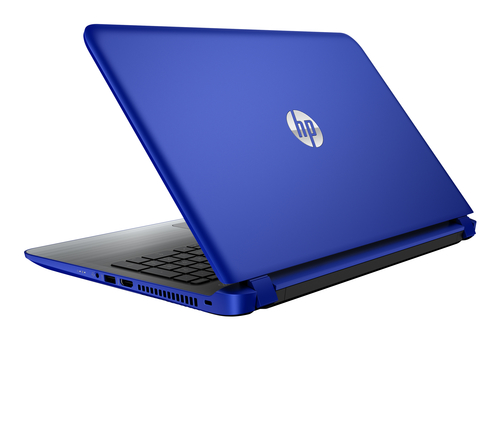

Pavilion 15-ab075na AMD A8 A8-7410 Laptop

39.6 cm (15.6") HD 8 GB DDR3L-SDRAM 1 TB HDD AMD Radeon R7 M360 Windows 8.1 Blue

Model 15-ab075naPart no. N2K20EAEAN 725184024696

197 specifications Checked today

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorAMD A8
Memory8 GB
Storage1 TB
GraphicsAMD Radeon R7 M360

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: AMD A8
Memory: 8 GB
Storage: 1 TB
Graphics: AMD Radeon R7 M360

Brand: HP
Category: Laptop
Model: 15-ab075na
Part number: N2K20EA
EAN / UPC: 725184024696
Also known as: HP Pavilion 15-ab075na AMD A8 A8-7410 Laptop 39.6 cm (15.6") HD 8 GB DDR3L-SDRAM 1 TB HDD AMD Radeon R7 M360 Windows 8.1 Blue

Specifications

197 specifications in 25 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Form factor	Clamshell
Country of origin	China

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
Display number of colours	16.78 million colours
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD A8
Processor model	A8-7410
Processor cores	4
Processor threads	4
Processor boost frequency	2.5 GHz
Processor frequency	2.2 GHz
Processor cache	2 MB
Processor cache type	L2

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon R7 M360
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	AMD Radeon R5
On-board graphics card model	AMD Radeon R5
Number of discrete graphics cards installed	1
Number of discrete graphics cards supported	1

Audio

Specification	Value
Audio system	B&O Play
Number of built-in speakers	2
Speakers manufacturer	Bang & Olufsen
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
LightScribe	No
Disc types supported	DVD, CD

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11g, 802.11b, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0
Near Field Communication (NFC)	No
WWAN	Not installed

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	0
Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt™ 3 Technology	No
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Accelerometer	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Island-style keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Idle States	No
Intel 64	No
Intel Advanced Vector Extensions	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel HD Boost	No
Intel HD Graphics	No
Intel I/O Acceleration Technology	No
Intel Power Management Technology	No
Intel QuickAssist Technology	No
Intel QuickPath Interconnect	No
Intel Rapid Storage Technology	No
Intel RealSense 3D Camera	No
Intel RealSense Snapshot	No
Intel Smart Connect Technology	No
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Unite installed	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	No
Intel® Pro Wireless Display (Intel® Pro WiDi)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® RealSense Technology	No
Intel® Secure Key	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	No
Intel® Smart Response Technology	No
Intel® Smart Sound Technology	No
Intel® Turbo Boost Technology	No
Intel® Unite™	No
Intel® Wireless-AC Technology	No
Thermal Monitoring Technologies	No
UART	No

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity	2800 mAh
Battery capacity	41 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3050 m
Non-operating altitude	0 - 4570 m
Operating shock	40 G
Non-operating shock	240 G
Operating vibration	1.043 G
Non-operating vibration	3.5 G

Certificates

Specification	Value
Compliance certificates	RoHS
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	2.29 kg
Width	384.5 mm
Depth	260.2 mm
Height	23.8 mm

Packaging data

Specification	Value
Package width	508 mm
Package depth	305 mm
Package height	76 mm
Package weight	3.27 kg

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
3D	No
