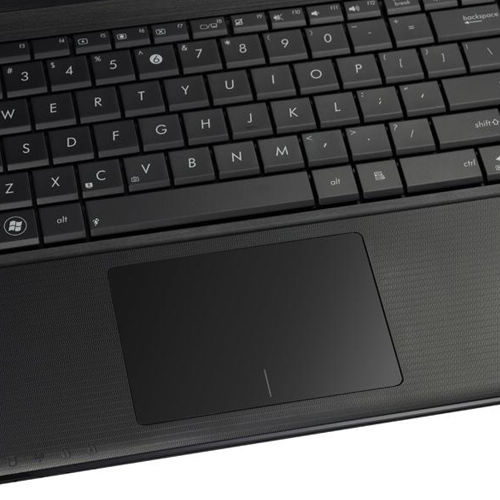

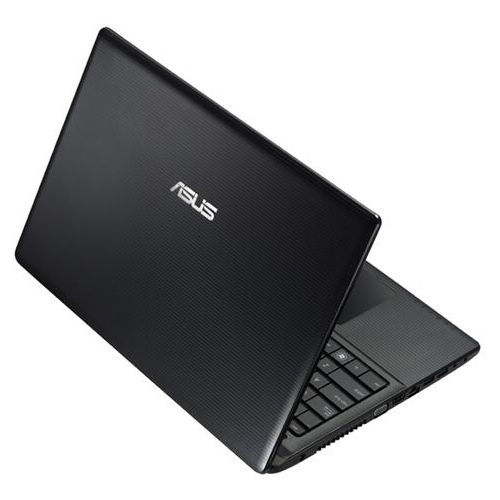

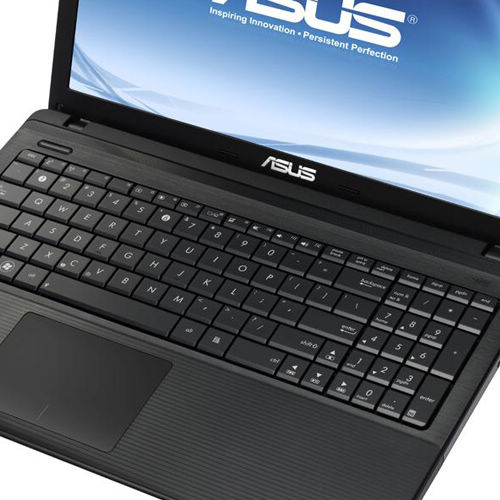

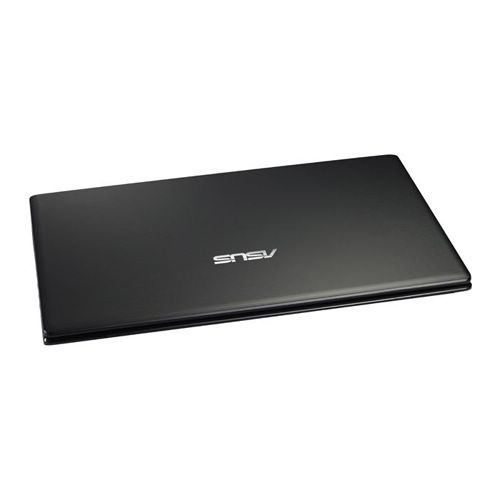

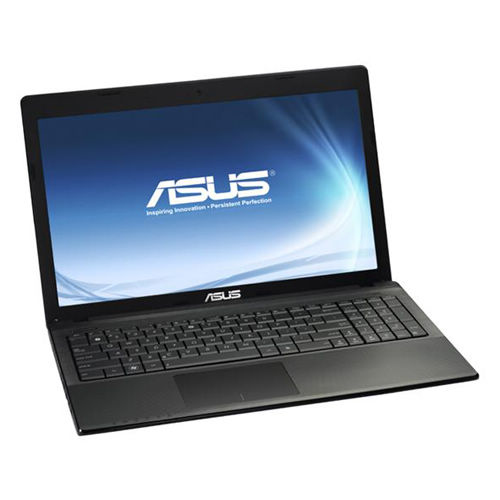

ASUS X55A-SX196D laptop Intel® Celeron® 1000M
ASUS

X55A-SX196D laptop Intel® Celeron® 1000M

39.6 cm (15.6") HD 2 GB DDR3-SDRAM 500 GB HDD FreeDOS Black

Model X55A-SX196D

152 specifications Checked today
  • Display39.6 cm (15.6")
  • Resolution1366 x 768 pixels
  • ProcessorIntel® Celeron®
  • Memory2 GB
  • Storage500 GB
  • GraphicsNot available
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1366 x 768 pixels
Processor
Intel® Celeron®
Memory
2 GB
Storage
500 GB
Graphics
Not available
Brand
ASUS
Category
Laptop
Model
X55A-SX196D
Part number
X55A-SX196D
Also known as
ASUS X55A-SX196D laptop Intel® Celeron® 1000M 39.6 cm (15.6") HD 2 GB DDR3-SDRAM 500 GB HDD FreeDOS Black

Specifications

152 specifications in 19 groups

Design

Product typeLaptop
Product colourBlack
Form factorClamshell

Display

Display diagonal39.6 cm (15.6")
Display resolution1366 x 768 pixels
TouchscreenNo
HD typeHD
LED backlightYes
Native aspect ratio16:9

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor model1000M
Processor cores2
Processor threads2
Processor frequency1.8 GHz
System bus rate5 GT/s
Processor cache2 MB
Processor cache typeSmart Cache
Processor socketrPGA988B
Processor lithography22 nm
Processor operating modes64-bit
Processor seriesIntel Celeron 1000 series for Mobile
Processor codenameIvy Bridge
Bus typeDMI
FSB ParityNo
Thermal Design Power (TDP)35 W
Tjunction105 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version2.0
CPU multiplier (bus/core ratio)18
ECC supported by processorNo

Memory

Internal memory2 GB
Internal memory typeDDR3-SDRAM
Memory clock speed1333 MHz
Memory form factorSO-DIMM
Memory slots1x SO-DIMM
Maximum internal memory4 GB

Storage

Total storage capacity500 GB
Storage mediaHDD
Number of HDDs installed1
HDD capacity500 GB
HDD interfaceSATA
HDD size2.5"
Optical drive typeDVD Super Multi
Card reader integratedYes
Compatible memory cardsMMC, SD

Graphics

On-board graphics cardYes
Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics
On-board graphics card base frequency650 MHz
On-board graphics card dynamic frequency (max)1000 MHz

Audio

Audio systemSonicMaster Lite
Speakers manufacturerAltec Lansing
Built-in microphoneYes

Camera

Front cameraYes
Front camera resolution (numeric)0.3 MP

Network

Wi-FiYes
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.0
Data networkNot supported
Cabling technology10/100/1000Base-T(X)
4G WiMAXNo
Integrated 4G WiMAXNo

Ports & interfaces

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
eSATA/USB 2.0 ports quantity0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0
eSATA ports quantity0
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity0
DVI portNo
VGA (D-Sub) ports quantity1
Firewire (IEEE 1394) ports0
Thunderbolt ports quantity0
Headphone outputs1
S/PDIF out portNo
Microphone inYes
Docking connectorNo
ExpressCard slotNo
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotNo

Performance

Motherboard chipsetIntel® HM70 Express

Keyboard

Pointing deviceTouchpad
Numeric keypadYes
Full-size keyboardYes
Windows keysYes

Software

Operating system installedFreeDOS

Processor special features

Intel® Wireless Display (Intel® WiDi)No
CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Rapid Storage TechnologyNo
Intel Smart Connect TechnologyNo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)No
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® My WiFi Technology (Intel® MWT)No
Intel® Quick Sync Video TechnologyNo
Intel® Rapid Start TechnologyNo
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart CacheYes
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Processor ARK ID72060
Processor package size37.5x37.5 (rPGA988B)
Supported instruction setsSSE4.x
Thermal Monitoring TechnologiesYes
Conflict-Free processorYes

Battery

Number of battery cells6
Battery capacity4400 mAh
Battery capacity47 Wh

Power

AC adapter power65 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output current3.42 A
AC adapter output voltage19 V
DC-in jackYes

Security

Cable lock slotNo

Weight & dimensions

Weight2.45 kg
Width378 mm
Depth253 mm
Height (front)2.62 cm
Height (rear)3.19 cm

Other features

3DNo
