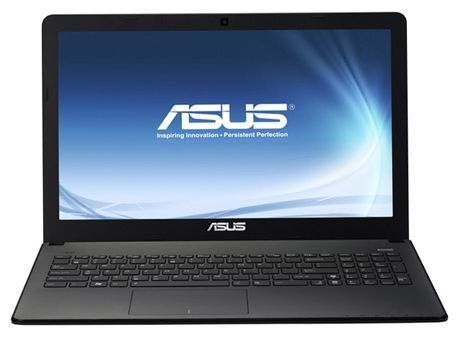

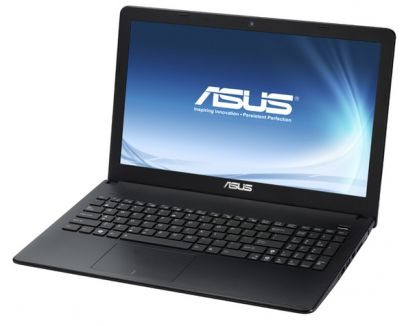

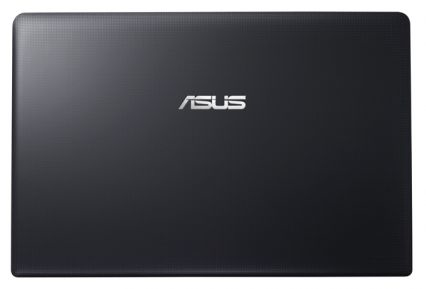

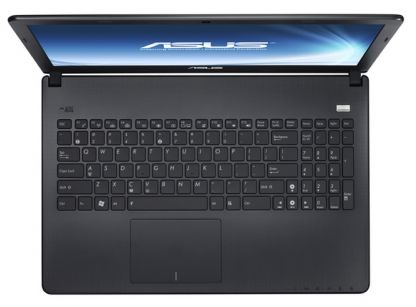

X501A-XX053D Intel® Pentium® B970 Laptop

39.6 cm (15.6") 2 GB DDR3-SDRAM 500 GB HDD FreeDOS Black

Model X501A-XX053DPart no. 90NNOA114S052160125EAN 886227207152

155 specifications Checked today

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Pentium®
Memory2 GB
Storage500 GB
Battery4400 mAh

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Pentium®
Memory: 2 GB
Storage: 500 GB
Battery: 4400 mAh

Brand: ASUS
Category: Laptop
Model: X501A-XX053D
Part number: 90NNOA114S052160125
EAN / UPC: 886227207152, 4716659207153
Also known as: ASUS X501A-XX053D Intel® Pentium® B970 Laptop 39.6 cm (15.6") 2 GB DDR3-SDRAM 500 GB HDD FreeDOS Black

Specifications

155 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	B970
Processor cores	2
Processor threads	2
Processor frequency	2.3 GHz
System bus rate	5 GT/s
Processor cache	2 MB
Processor cache type	L3
Processor socket	Socket 988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium B900 Series for Mobile
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	Q0
Thermal Design Power (TDP)	35 W
Tjunction	85 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	23
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1333 MHz
Memory form factor	SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz

Audio

Specification	Value
Number of built-in speakers	2
Speakers manufacturer	Altec Lansing
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.3 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No
Data network	Not supported
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
4G WiMAX	No
Integrated 4G WiMAX	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	FreeDOS
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	63915
Processor code	SR0J2
Processor package size	37.5x37.5 (rPGA988B)
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery capacity	47 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
DC-in jack	Yes
