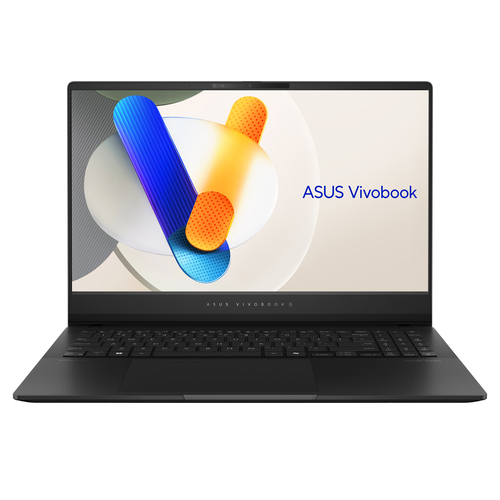

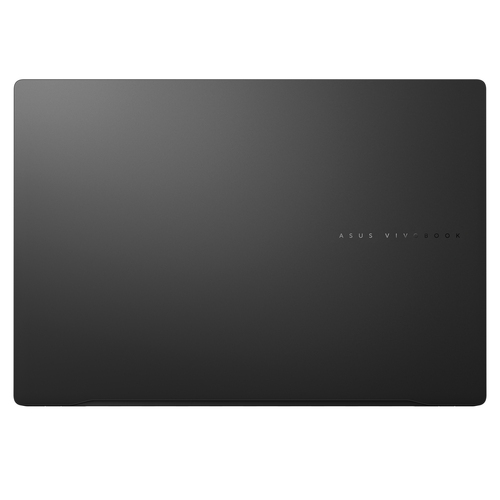

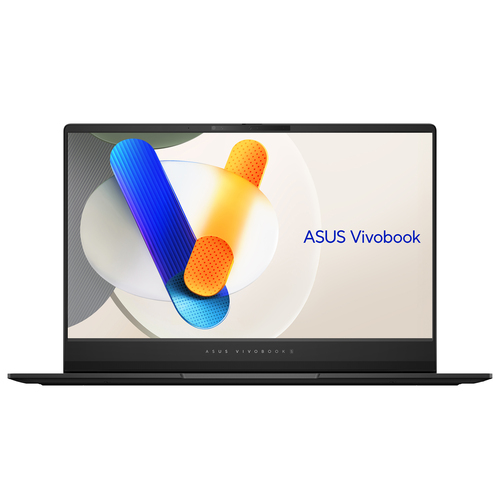

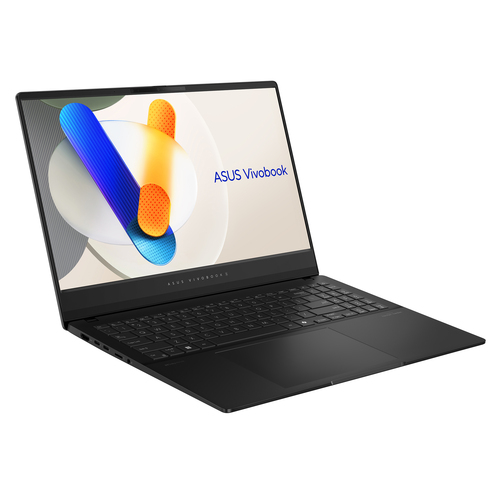

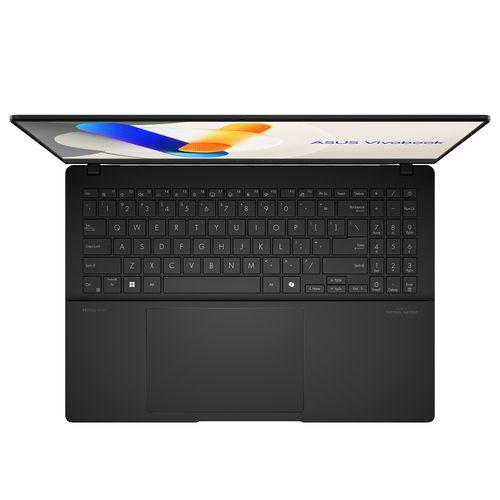

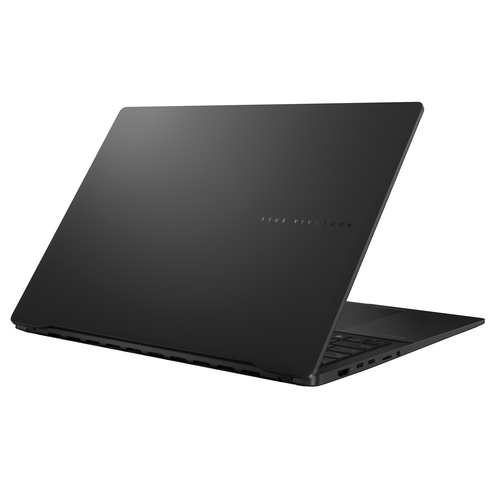

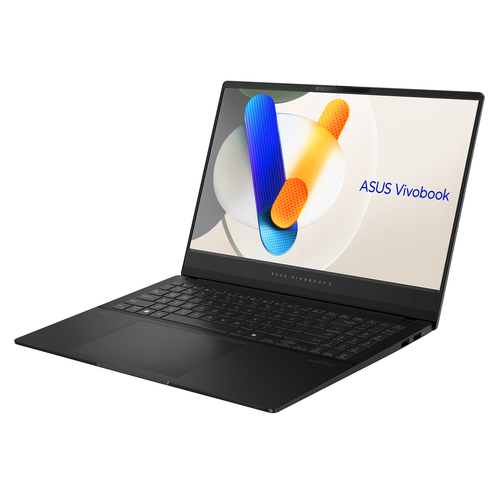

Vivobook S 15 OLED S5506MA-MA015W
Model Vivobook S 15 OLED S5506MA-MA015WPart no. VIVOBOOK S 15 OLED S5506MA-MA015WEAN 4711387602133
71 specifications Checked today
- Display39.6 cm (15.6")
- Resolution2880 x 1620 pixels
- ProcessorIntel Core Ultra 5
- Memory16 GB
- Storage512 GB
- Battery75 Wh
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 2880 x 1620 pixels
- Processor
- Intel Core Ultra 5
- Memory
- 16 GB
- Storage
- 512 GB
- Battery
- 75 Wh
- Brand
- ASUS
- Category
- Laptop
- Model
- Vivobook S 15 OLED S5506MA-MA015W
- Part number
- VIVOBOOK S 15 OLED S5506MA-MA015W
- EAN / UPC
- 4711387602133
- Also known as
- ASUS Vivobook S15 S 15 OLED S5506MA-MA015W Intel Core Ultra 5 125H Laptop 39.6 cm (15.6") 3K 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home
Specifications
71 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Colour name | Neutral Black |
| Form factor | Clamshell |
| Housing material | Aluminium |
Display
| Specification | Value |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 2880 x 1620 pixels |
| Touchscreen | No |
| HD type | 3K |
| Panel type | OLED |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 120 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 125H |
| Processor cores | 14 |
| Processor threads | 18 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 1.2 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

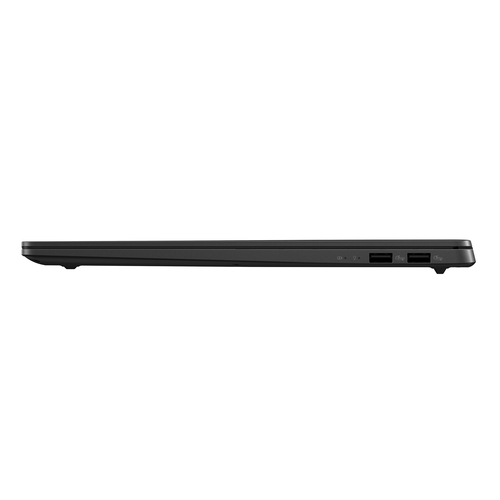

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 75 Wh |
Packaging data
| Specification | Value |
|---|---|
| Package width | 35.4 mm |
| Package depth | 1.39 mm |
| Package height | 24.7 mm |
| Package weight | 1.5 kg |
