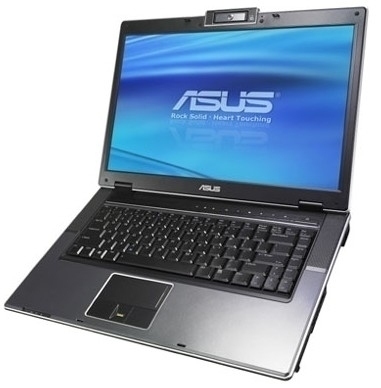

V1S-AS004E, SP

Model V1S-AS004E, SPPart no. V1S-AS004E

123 specifications Checked today

Overview

Brand: ASUS
Category: Laptop
Model: V1S-AS004E, SP
Part numbers: V1S-AS004E, 90NGIA21B1112EGC308
Also known as: ASUS V1S-AS004E, SP Intel® Core™2 Duo T7500 39.1 cm (15.4") 2 GB DDR2-SDRAM 160 GB NVIDIA® GeForce® 8600 GT Windows Vista Business

123 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T7500
Processor cores	2
Processor threads	2
Processor frequency	2.2 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T7000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	E1
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, MS Duo, MS Pro, MS Pro Duo, SD, xD

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 8600 GT
Maximum graphics card memory	0.5 GB

Specification	Value
Number of built-in speakers	2

Specification	Value
Front camera resolution (numeric)	1.3 MP

Specification	Value
USB 2.0 ports quantity	3
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Specification	Value
Motherboard chipset	Intel® PM965 Express

Specification	Value
Pointing device	Touchpad

Specification	Value
Operating system installed	Windows Vista Business

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	29761
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No
