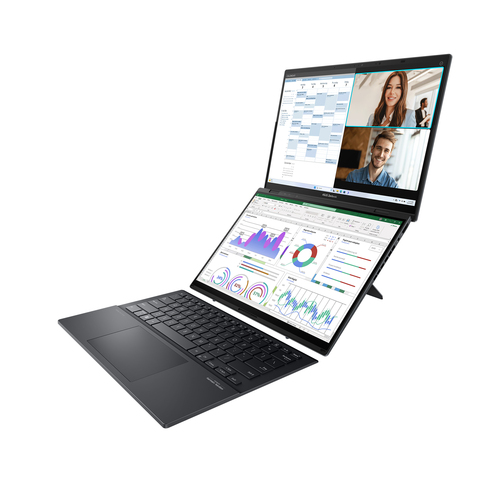

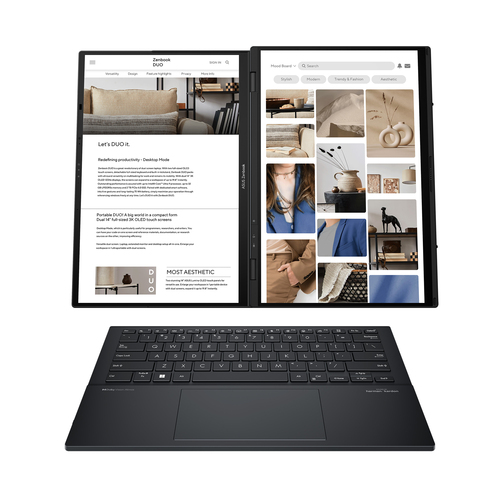

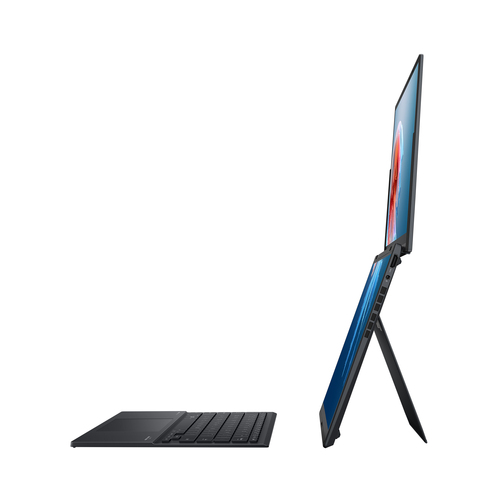

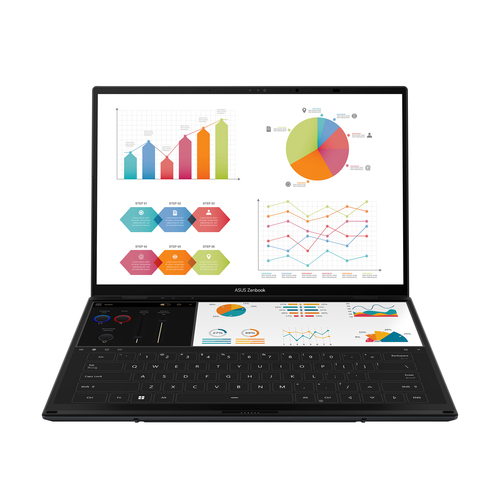

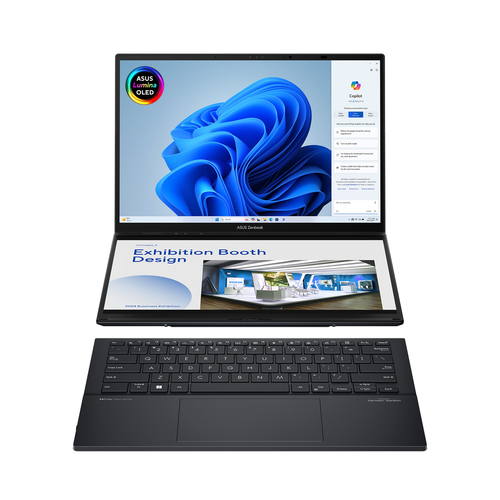

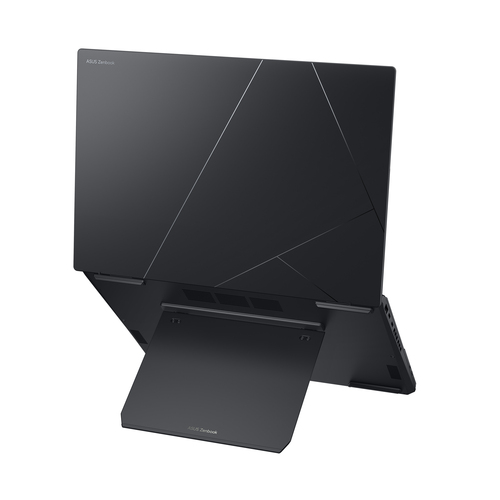

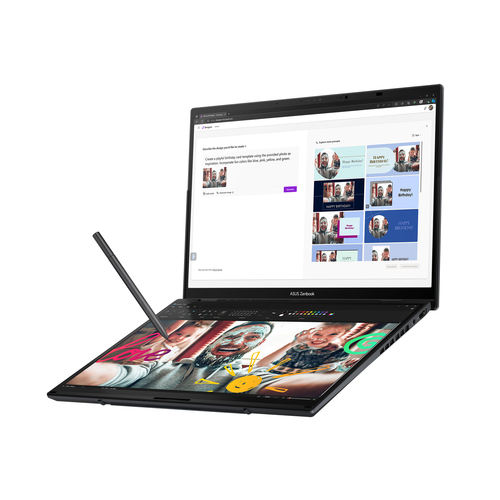

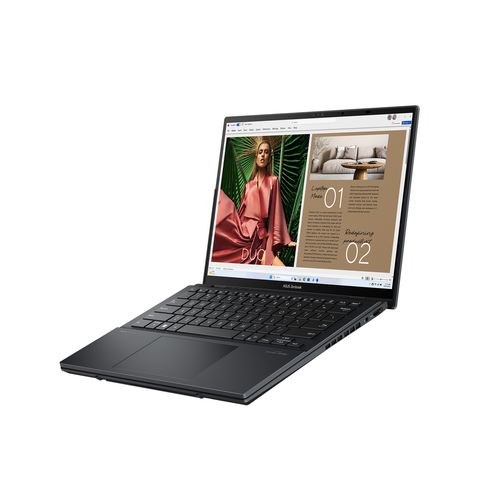

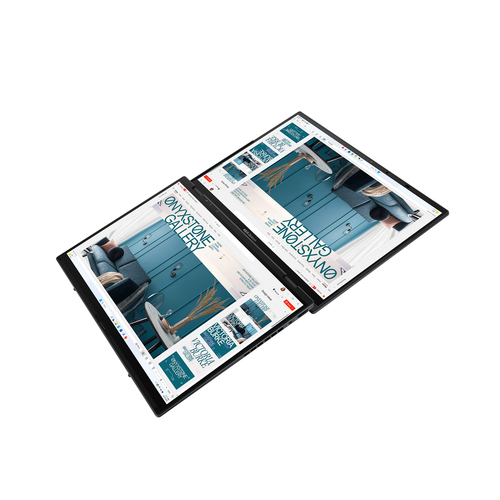

Zenbook Duo UX8406MA-PZ442X Intel Core Ultra 9 185H Hybrid (2-in-1)
35.6 cm (14") Touchscreen 3K 32 GB LPDDR5x-SDRAM 2 TB SSD Wi-Fi 6E (802.11ax) Windows 1
Model UX8406MA-PZ442XPart no. 90NB12U1-M00S10EAN 197105735682
114 specifications Checked today
- Display35.6 cm (14")
- Resolution2880 x 1800 pixels
- ProcessorIntel Core Ultra 9
- Memory32 GB
- Storage2 TB
- GraphicsNot available
Overview
- Display
- 35.6 cm (14")
- Resolution
- 2880 x 1800 pixels
- Processor
- Intel Core Ultra 9
- Memory
- 32 GB
- Storage
- 2 TB
- Graphics
- Not available
- Brand
- ASUS
- Category
- Laptop
- Model
- UX8406MA-PZ442X
- Part number
- 90NB12U1-M00S10
- EAN / UPC
- 197105735682, 4711387735688
- Also known as
- ASUS Zenbook Duo UX8406MA-PZ442X Intel Core Ultra 9 185H Hybrid (2-in-1) 35.6 cm (14") Touchscreen 3K 32 GB LPDDR5x-SDRAM 2 TB SSD Wi-Fi 6E (802.11ax) Windows 1
Specifications
114 specifications in 20 groups
Design
| Specification | Value |
|---|---|
| Product type | Hybrid (2-in-1) |
| Product colour | Grey |
| Colour name | Inkwell Gray |
| Form factor | Convertible (Detachable) |
| Housing material | Aluminium, Magnesium |
| Market positioning | Home |
Display
| Specification | Value |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | 3K |
| Panel type | OLED |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 500 cd/m² |
| Colour gamut | 100% |
| RGB colour space | DCI-P3 |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 500 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 185H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 5.1 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 2.3 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Low Power Efficient-core Base Frequency | 1000 MHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| SSD form factor | M.2 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
Audio
| Specification | Value |
|---|---|
| Audio system | Smart Amp |
| Speakers manufacturer | Harman Kardon |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Performance
| Specification | Value |
|---|---|
| Repairability index | 7.5 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required. |
| Bundled software | One-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025. |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 75 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.25 A |
| AC adapter output voltage | 20 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.65 kg |
| Width | 313.5 mm |
| Depth | 217.9 mm |
| Height (front) | 1.46 cm |
| Height (rear) | 1.99 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Stylus pen | Yes |
