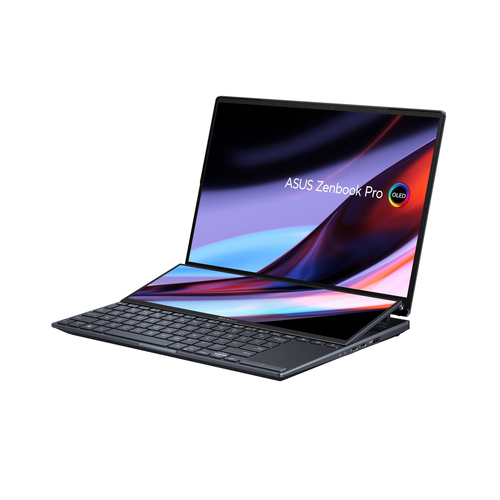

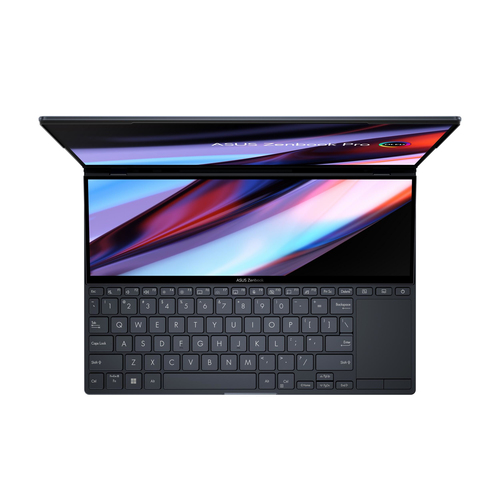

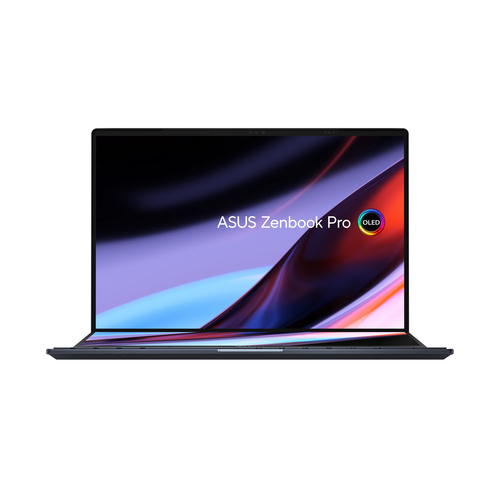

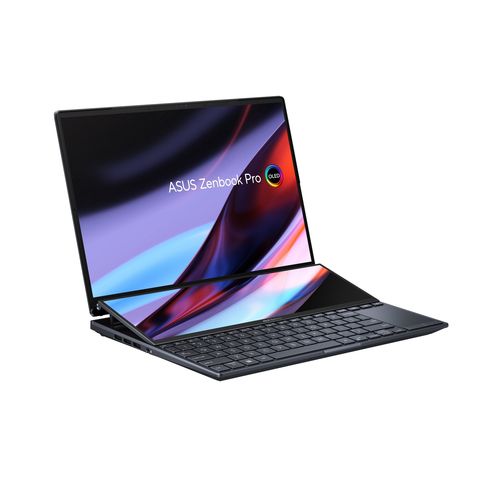

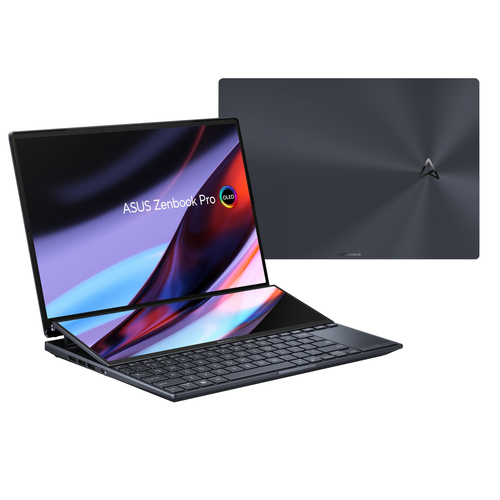

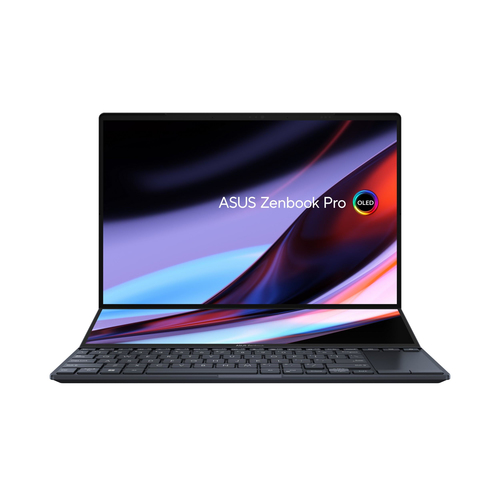

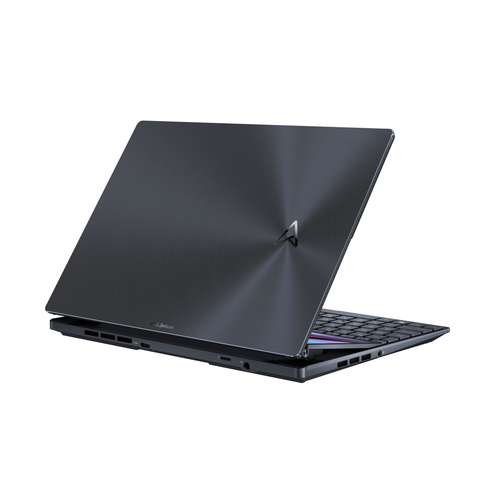

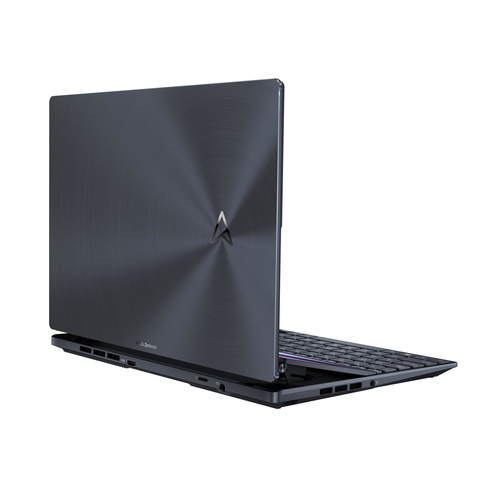

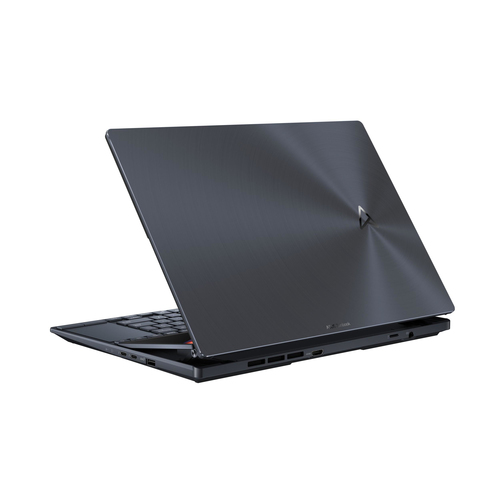

ASUS Zenbook Pro 14 Duo OLED UX8402VV-P1077W Intel® Core™ i9 i9-13900H Laptop

Zenbook Pro 14 Duo OLED UX8402VV-P1077W Intel® Core™ i9 i9-13900H Laptop

36.8 cm (14.5") Touchscreen 3K 32 GB LPDDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060

Model UX8402VV-P1077WPart no. 90NB1172-M004K0EAN 197105259980

115 specifications Checked today

Display36.8 cm (14.5")
Resolution2880 x 1800 pixels
ProcessorIntel® Core™ i9
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4060

See all specifications

Overview

Display: 36.8 cm (14.5")
Resolution: 2880 x 1800 pixels
Processor: Intel® Core™ i9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4060

Brand: ASUS
Category: Laptop
Model: UX8402VV-P1077W
Part number: 90NB1172-M004K0
EAN / UPC: 197105259980, 4711387259986
Also known as: ASUS Zenbook Pro 14 Duo OLED UX8402VV-P1077W Intel® Core™ i9 i9-13900H Laptop 36.8 cm (14.5") Touchscreen 3K 32 GB LPDDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060

Specifications

115 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Tech Black
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Performance
Introduction year	2023

Display

Specification	Value
Display diagonal	36.8 cm (14.5")
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	3K
Panel type	OLED
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	550 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	0.2 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 500
Second display diagonal	32.3 cm (12.7")
Second display resolution	2880 x 864 pixels
Second display panel type	IPS

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	13th gen Intel® Core™ i9
Processor model	i9-13900H
Processor cores	14
Processor boost frequency	5.4 GHz
Processor cache	24 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	7.5

Keyboard

Specification	Value
Pointing device	ScreenPad Plus
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required, McAfee LiveSafe 30 days

Processor special features

Specification	Value
CPU configuration (max)	1

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	76 Wh

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	9 A
AC adapter output voltage	20 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	RoHS, REACH

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.75 kg
Width	323.5 mm
Depth	224.7 mm
Height (front)	1.79 cm
Height (rear)	1.96 cm

Packaging data

Specification	Value
Package width	466 mm
Package depth	116 mm
Package height	306 mm
Package weight	3.5 kg

Packaging content

Specification	Value
Bag included	Yes
Stylus pen	Yes
