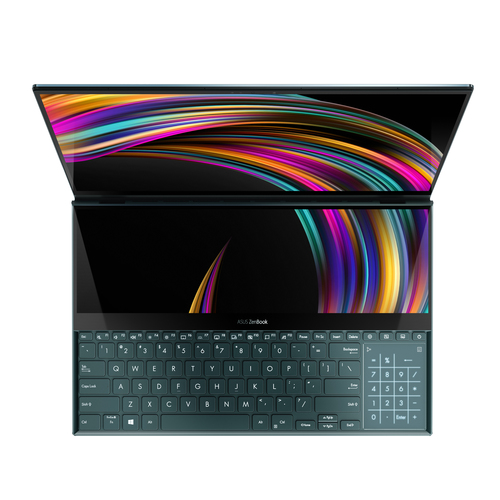

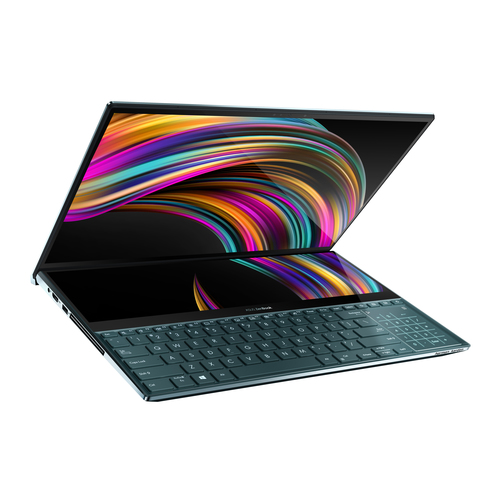

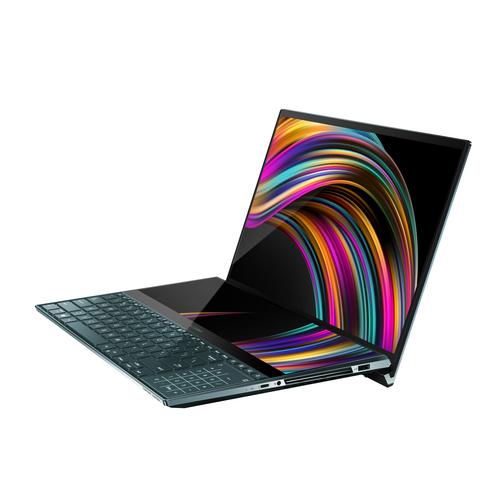

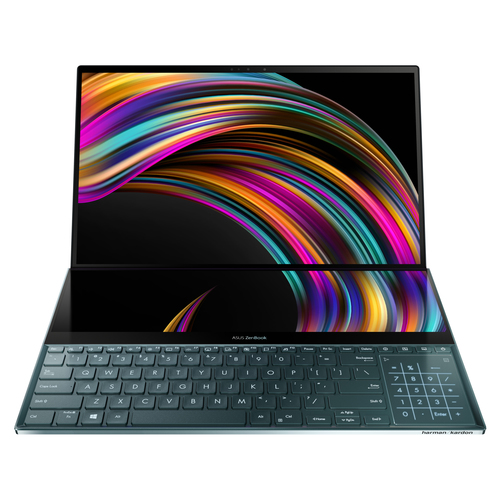

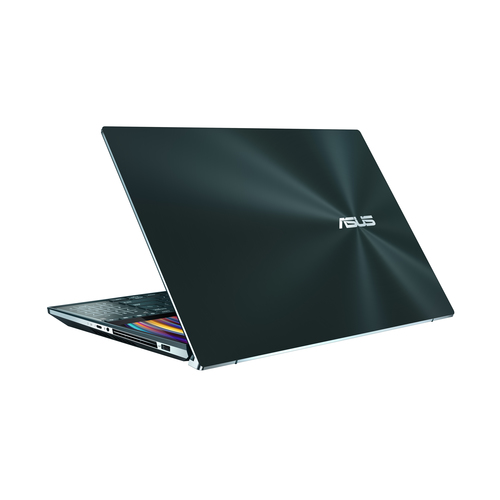

ASUS Zenbook Pro Duo UX581LV-H2024T Intel® Core™ i9 i9-10980HK Laptop

Zenbook Pro Duo UX581LV-H2024T Intel® Core™ i9 i9-10980HK Laptop

39.6 cm (15.6") Touchscreen 4K Ultra HD 32 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 206

Model UX581LV-H2024TEAN 4718017672573

95 specifications Checked today

Display39.6 cm (15.6")
Resolution3840 x 2160 pixels
ProcessorIntel® Core™ i9
Memory32 GB
Storage1 TB
GraphicsNVIDIA® GeForce RTX™ 2060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 3840 x 2160 pixels
Processor: Intel® Core™ i9
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce RTX™ 2060

Brand: ASUS
Category: Laptop
Model: UX581LV-H2024T
Part numbers: UX581LV-H2024T, UX581LV-H2024R
EAN / UPC: 4718017672573, 4718017808385, 192876720806, 4718017720809
Also known as: ASUS Zenbook Pro Duo UX581LV-H2024T Intel® Core™ i9 i9-10980HK Laptop 39.6 cm (15.6") Touchscreen 4K Ultra HD 32 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 206

Specifications

95 specifications in 17 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	3840 x 2160 pixels
Touchscreen	Yes
HD type	4K Ultra HD
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	10th gen Intel® Core™ i9
Processor model	i9-10980HK
Processor cores	8
Processor boost frequency	5.3 GHz
Processor frequency	2.4 GHz
Processor cache	16 MB
Configurable TDP-up frequency	3.1 GHz
Configurable TDP-up	65 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA® GeForce RTX™ 2060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Thunderbolt technology	Yes
HDMI ports quantity	1
HDMI version	2.0
Thunderbolt 3 ports quantity	1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	6.7

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Full-size keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Processor ARK ID	201838

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8
Battery capacity	71 Wh

Power

Specification	Value
AC adapter power	230 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	11.8 A
AC adapter output voltage	19.5 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	356 mm
Depth	246 mm
Height	24 mm
