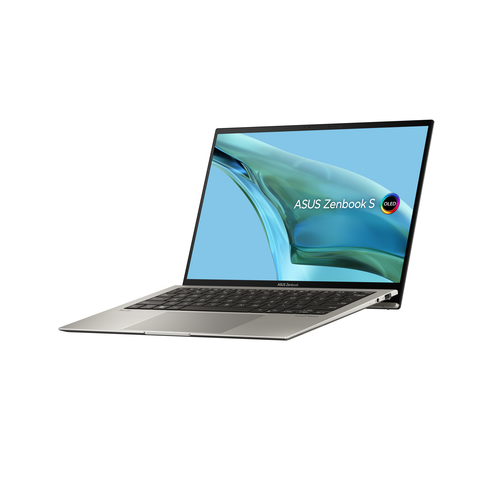

ASUS Zenbook S13 OLED UX5304VA-NQ189X Intel® Core™ i5 i5-1335U Laptop

Zenbook S13 OLED UX5304VA-NQ189X Intel® Core™ i5 i5-1335U Laptop

33.8 cm (13.3") 2.8K 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

Model UX5304VA-NQ189XPart no. 90NB0Z92-M00J10EAN 4711387228326

105 specifications Checked today

Display33.8 cm (13.3")
Resolution2880 x 1800 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 2880 x 1800 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: UX5304VA-NQ189X
Part number: 90NB0Z92-M00J10
EAN / UPC: 4711387228326
Also known as: ASUS Zenbook S13 OLED UX5304VA-NQ189X Intel® Core™ i5 i5-1335U Laptop 33.8 cm (13.3") 2.8K 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey

Specifications

105 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Basalt Grey
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Home

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	2880 x 1800 pixels
Touchscreen	No
HD type	2.8K
Panel type	OLED
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	550 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 500

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	13th gen Intel® Core™ i5
Processor model	i5-1335U
Processor cores	10
Processor boost frequency	4.6 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-down	12 W
Maximum turbo power	55 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.3

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	63 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	RoHS, REACH

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR, CarbonNeutral

Weight & dimensions

Specification	Value
Weight	1 kg
Width	296.7 mm
Depth	216.3 mm
Height (front)	1.09 cm
Height (rear)	1.18 cm
