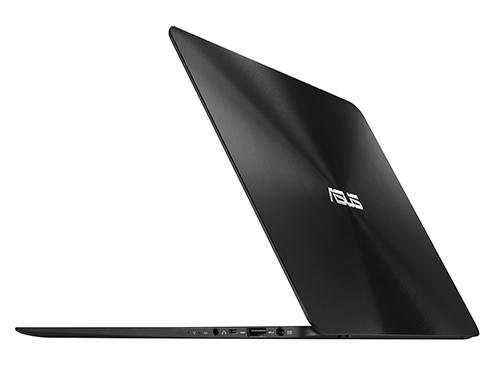

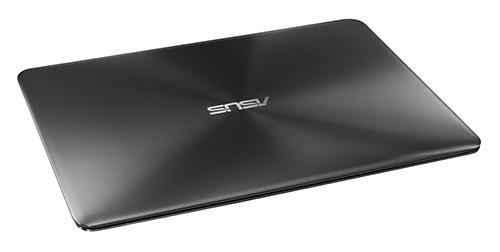

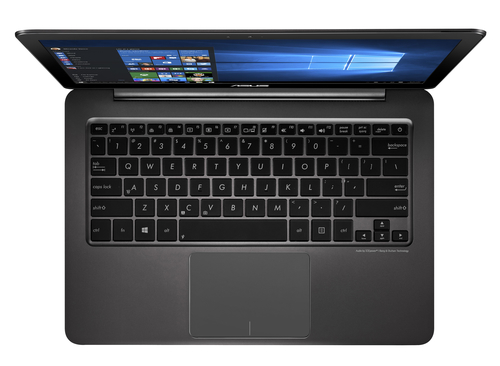

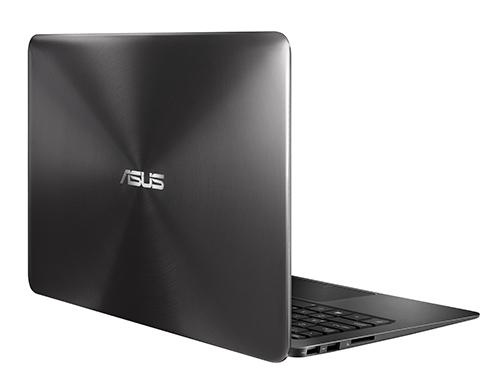

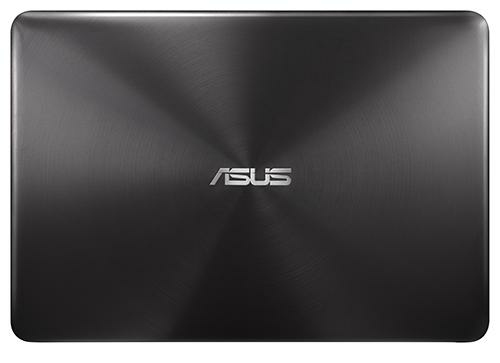

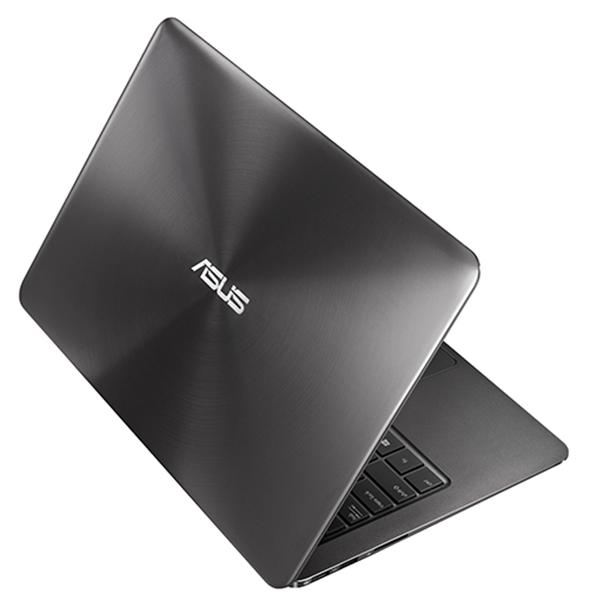

Zenbook UX305FA-RBM1-CB laptop Intel® Core™ M M-5Y10
33.8 cm (13.3") Full HD 8 GB LPDDR3-SDRAM 256 GB SSD Windows 8.1 Black
Model UX305FA-RBM1-CB
135 specifications Checked today
- Display33.8 cm (13.3")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ M
- Memory8 GB
- Storage256 GB
- GraphicsNot available
Overview
- Display
- 33.8 cm (13.3")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ M
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Brand
- ASUS
- Category
- Laptop
- Model
- UX305FA-RBM1-CB
- Part number
- UX305FA-RBM1-CB
- Also known as
- ASUS Zenbook UX305FA-RBM1-CB laptop Intel® Core™ M M-5Y10 33.8 cm (13.3") Full HD 8 GB LPDDR3-SDRAM 256 GB SSD Windows 8.1 Black
Specifications
135 specifications in 21 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
Display
| Specification | Value |
|---|---|
| Display diagonal | 33.8 cm (13.3") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ M |
| Processor generation | Intel® Core™ m-5xxx |
| Processor model | M-5Y10 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2 GHz |
| Processor frequency | 0.8 GHz |
| Processor cache | 4 MB |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core M-5Y Mobile series |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 4.5 W |
| Tjunction | 95 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x2, 1x4 |
| PCI Express slots version | 2.0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | LPDDR3-SDRAM |
| Memory clock speed | 1600 MHz |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA III |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 5300 |
| Maximum on-board graphics card memory | 16 GB |
| On-board graphics card base frequency | 100 MHz |
| On-board graphics card dynamic frequency (max) | 800 MHz |
| On-board graphics card DirectX version | 11.2/12 |
| On-board graphics card OpenGL version | 4.3 |
| Graphics card Open GL support | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | RealTek |
| Speakers manufacturer | Bang & Olufsen |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Micro HDMI ports quantity | 1 |
| Headphone outputs | 0 |
| S/PDIF out port | No |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| Docking connector | No |
| ExpressCard slot | No |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Numeric keypad | No |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8.1 |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel HD Graphics | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Built-in Visuals Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | No |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Virtualization Technology (Intel® VT) | VT-x, VT-d |
| Processor ARK ID | 83610 |
| Processor package size | 30 x 16.5 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 45 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 33 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | No |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | HDD, User, BIOS |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | UL, TUV, CE Marking Compliance, FCC Compliance, CCC, EU Flower, Energy star, WEEE, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.2 kg |
| Width | 324 mm |
| Depth | 226 mm |
| Height | 12.3 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Intel segment tagging | Enterprise |
