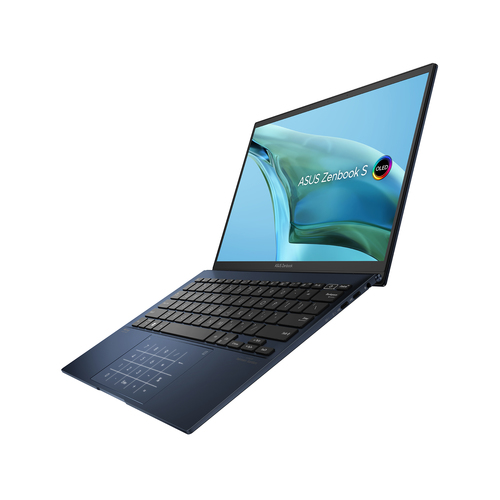

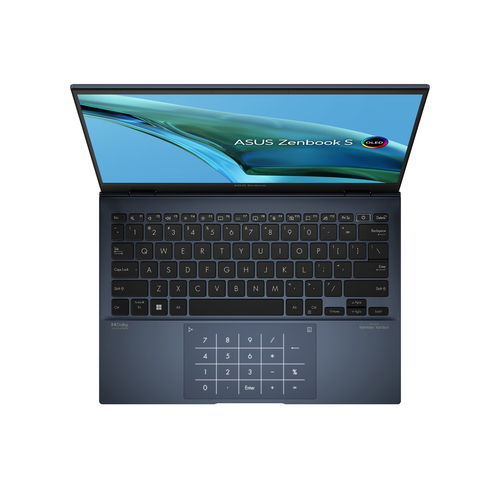

ASUS Zenbook S13 OLED UM5302TA-LX200W AMD Ryzen™ 7 6800U Laptop

Zenbook S13 OLED UM5302TA-LX200W AMD Ryzen™ 7 6800U Laptop

33.8 cm (13.3") Touchscreen WQXGA+ 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11

Model UM5302TA-LX200WPart no. 90NB0WA1-M00F50EAN 195553855174

100 specifications Checked today

Display33.8 cm (13.3")
Resolution2880 x 1800 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 2880 x 1800 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: UM5302TA-LX200W
Part number: 90NB0WA1-M00F50
EAN / UPC: 195553855174, 4711081855170
Also known as: ASUS Zenbook S13 OLED UM5302TA-LX200W AMD Ryzen™ 7 6800U Laptop 33.8 cm (13.3") Touchscreen WQXGA+ 16 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11

Specifications

100 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Blue
Colour name	Ponder Blu
Form factor	Clamshell
Housing material	Aluminium, Magnesium
Market positioning	Home
Country of origin	China

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	WQXGA+
Panel type	OLED
Display number of colours	1.073 billion colours
Native aspect ratio	16:10
Display surface	Gloss
Maximum display brightness (HDR)	400 cd/m²
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	0.2 ms
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 6000 Series
Processor model	6800U
Processor cores	8
Processor boost frequency	4.7 GHz
Processor frequency	2.7 GHz
Processor cache	16 MB

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory form factor	On-board
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon 680M

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
HDMI ports quantity	0
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	NumberPad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	67 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	19 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes

Certificates

Specification	Value
Compliance certificates	REACH, RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.1 kg
Width	296.7 mm
Depth	210.5 mm
Height	14.9 mm

Packaging data

Specification	Value
Package width	73 mm
Package depth	418 mm
Package height	260 mm
Package weight	2.77 kg

Packaging content

Specification	Value
AC adapter included	Yes

Logistics data

Specification	Value
Commodity Classification Automated Tracking System (CCATS)	8471300000
