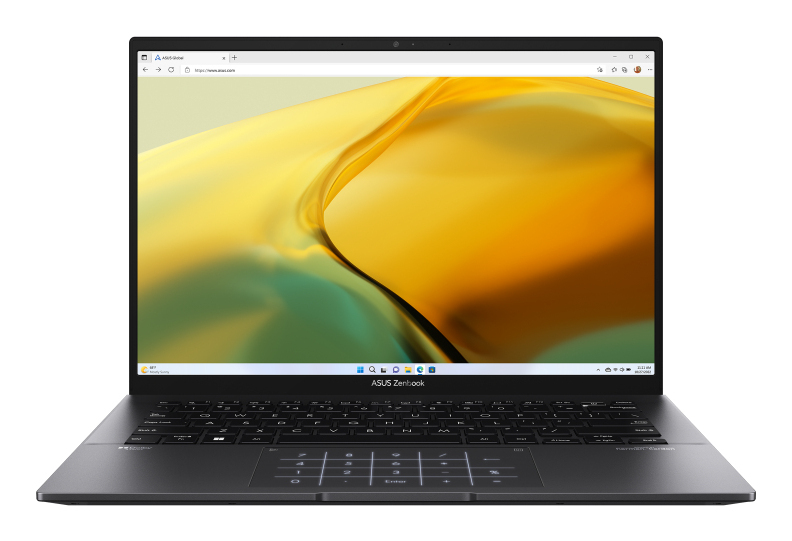

ASUS Zenbook 14 UM3402YA-KP806W AMD Ryzen™ 5 7430U Laptop

Zenbook 14 UM3402YA-KP806W AMD Ryzen™ 5 7430U Laptop

35.6 cm (14") WQXGA 8 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Black

Model UM3402YA-KP806WPart no. 90NB0W95-M01FN0EAN 4711387531020

98 specifications Checked today

Display35.6 cm (14")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: UM3402YA-KP806W
Part number: 90NB0W95-M01FN0
EAN / UPC: 4711387531020
Also known as: ASUS Zenbook 14 UM3402YA-KP806W AMD Ryzen™ 5 7430U Laptop 35.6 cm (14") WQXGA 8 GB LPDDR4x-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Black

Specifications

98 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Jade Black
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Home

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS-Level
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	60 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 7000 Series
Processor model	7430U
Processor cores	6
Processor boost frequency	4.3 GHz
Processor frequency	2.3 GHz
Processor cache	19 MB
Processor cache type	L2 & L3

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	LPDDR4x-SDRAM
Memory form factor	On-board
Maximum internal memory	8 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	AMD
On-board graphics card model	AMD Radeon Graphics

Audio

Specification	Value
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	7.5

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	75 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes

Certificates

Specification	Value
Compliance certificates	REACH, RoHS
Certification	REACH,RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Weight	1.35 kg
Width	313.6 mm
Depth	220.6 mm
Height	16.9 mm
