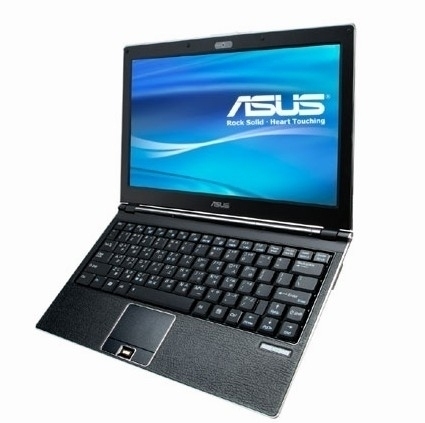

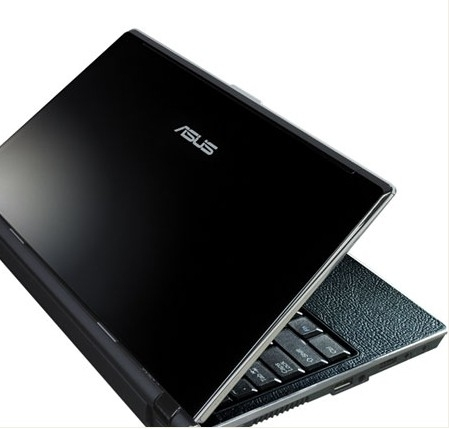

U1E-1P039E, SP
Model U1E-1P039E, SPPart no. 90NLWAE1B2232EGCG08EAN 884840230830
123 specifications Checked today
- Display28.2 cm (11.1")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage120 GB
- GraphicsIntel® GMA X3100
Overview
- Display
- 28.2 cm (11.1")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 120 GB
- Graphics
- Intel® GMA X3100
- Brand
- ASUS
- Category
- Laptop
- Model
- U1E-1P039E, SP
- Part number
- 90NLWAE1B2232EGCG08
- EAN / UPC
- 884840230830
- Also known as
- ASUS U1E-1P039E, SP Intel® Core™2 Duo U7600 28.2 cm (11.1") 2 GB DDR2-SDRAM 120 GB Intel® GMA X3100 Windows Vista Business
Specifications
123 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 28.2 cm (11.1") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | U7600 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.2 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Processor socket | Socket 479 |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo U7000 Series |
| Processor codename | Merom |
| Bus type | FSB |
| FSB Parity | No |
| Stepping | L2 |
| Thermal Design Power (TDP) | 10 W |
| Tcase | 100 °C |
| Tjunction | 100 °C |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 9 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 667 MHz |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 120 GB |
| HDD interface | SATA |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS Duo, MS Pro Duo, SD, xD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | Intel® GMA X3100 |
Audio
| Specification | Value |
|---|---|
| Audio system | Intel HDA (Azalia) |
| Number of built-in speakers | 2 |

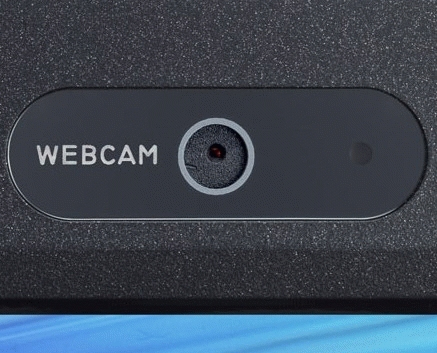

Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 0.3 MP |
Network
| Specification | Value |
|---|---|
| Networking features | Fast Ethernet, WLAN |
| Wireless technology | IEEE 802.11b/g |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |

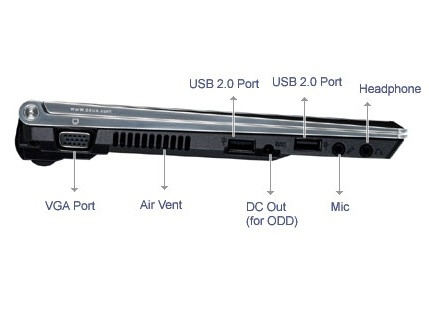

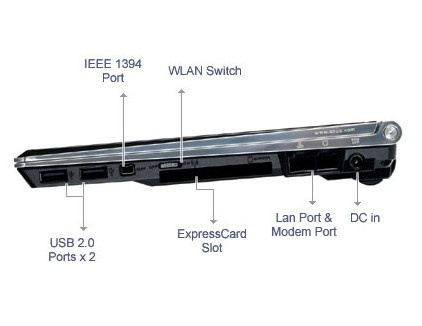

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Docking connector | No |
| ExpressCard slot | Yes |
| CardBus PCMCIA slots quantity | 0 |
| CardBus PCMCIA slot type | No |
| SmartCard slot | No |
| Modem (RJ-11) ports | 1 |
| TV-in port | No |
| TV-out | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| USB 1.1 ports quantity | 0 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Bundled software | ASUS DVD XP 6.0 Power Director 3.0 DE Medi@Show 2.0 SE Adobe Acrobat Reader 8.0 NERO Express 7.0 ASUS |
Processor special features
| Specification | Value |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 36932 |
| Processor code | SLA2U |
| Processor package size | 35 x 35 mm |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter input voltage | 100/240 V |
| AC adapter output current | 3.42 A |
| AC adapter output voltage | 19 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

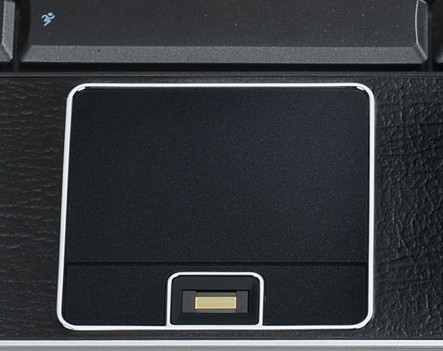

| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | BIOS |
| HDD user password | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.05 kg |
| Width | 275 mm |
| Depth | 190 mm |
| Height (front) | 1.79 cm |
| Height (rear) | 2.9 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Infrared data port | No |
| Internal modem | Yes |
| Modem speed | 56 Kbit/s |
| Modem type | V.92 |
| Supplied AC adapter type | AC |
