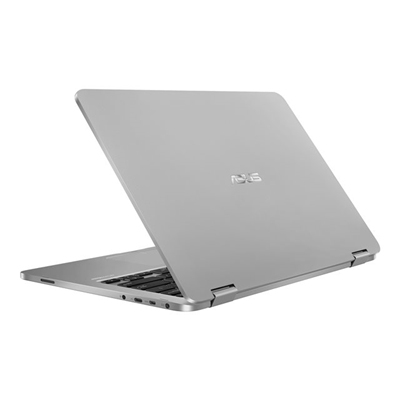

Vivobook Flip TP401NA-BZ007T Intel® Celeron® N3350 Hybrid (2-in-1)

35.6 cm (14") Touchscreen HD 4 GB LPDDR3-SDRAM 64 GB eMMC Windows 10 S Black, Grey

Model TP401NA-BZ007TPart no. 90NB0GW1-M01210EAN 4712900821123

161 specifications Checked today

Display35.6 cm (14")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron®
Memory4 GB
Storage64 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron®
Memory: 4 GB
Storage: 64 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: TP401NA-BZ007T
Part number: 90NB0GW1-M01210
EAN / UPC: 4712900821123
Also known as: ASUS Vivobook Flip TP401NA-BZ007T Intel® Celeron® N3350 Hybrid (2-in-1) 35.6 cm (14") Touchscreen HD 4 GB LPDDR3-SDRAM 64 GB eMMC Windows 10 S Black, Grey

Specifications

161 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, Grey
Form factor	Convertible (Folder)
Housing material	Aluminium

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1366 x 768 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
HD type	HD
Touch technology	Multi-touch
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N3350
Processor cores	2
Processor threads	2
Processor boost frequency	2.4 GHz
Processor frequency	1.1 GHz
System bus rate	5 GT/s
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1296
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Celeron N3000 series
Processor codename	Apollo Lake
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4 W
Tjunction	105 °C
Maximum number of PCI Express lanes	6
PCI Express configurations	1x2+2x1, 4x1
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1866 MHz
Memory form factor	On-board + SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory slots	1x SO-DIMM
Maximum internal memory	4 GB
Maximum internal memory (64-bit)	4 GB

Storage

Specification	Value
Total storage capacity	64 GB
Storage media	eMMC
Flash memory	64 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 500
Maximum on-board graphics card memory	8 GB
Number of execution units	12
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	650 MHz
On-board graphics card dynamic frequency (max)	650 MHz
On-board graphics card ID	0x5A85
Graphics card Open GL support	Yes

Audio

Specification	Value
Audio system	SonicMaster
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.5 MP
Front camera resolution	640 x 480 pixels

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Micro HDMI ports quantity	1
Combo headphone/mic port	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Island-style keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 S
Operating system architecture	64-bit
Trial software	Microsoft Office 365 Customer

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Idle Technology	No
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	95598
Processor package size	24 x 31 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	2
Battery capacity	39 Wh

Power

Specification	Value
AC adapter power	33 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.75 A
AC adapter output voltage	19 V
DC-in jack	Yes
